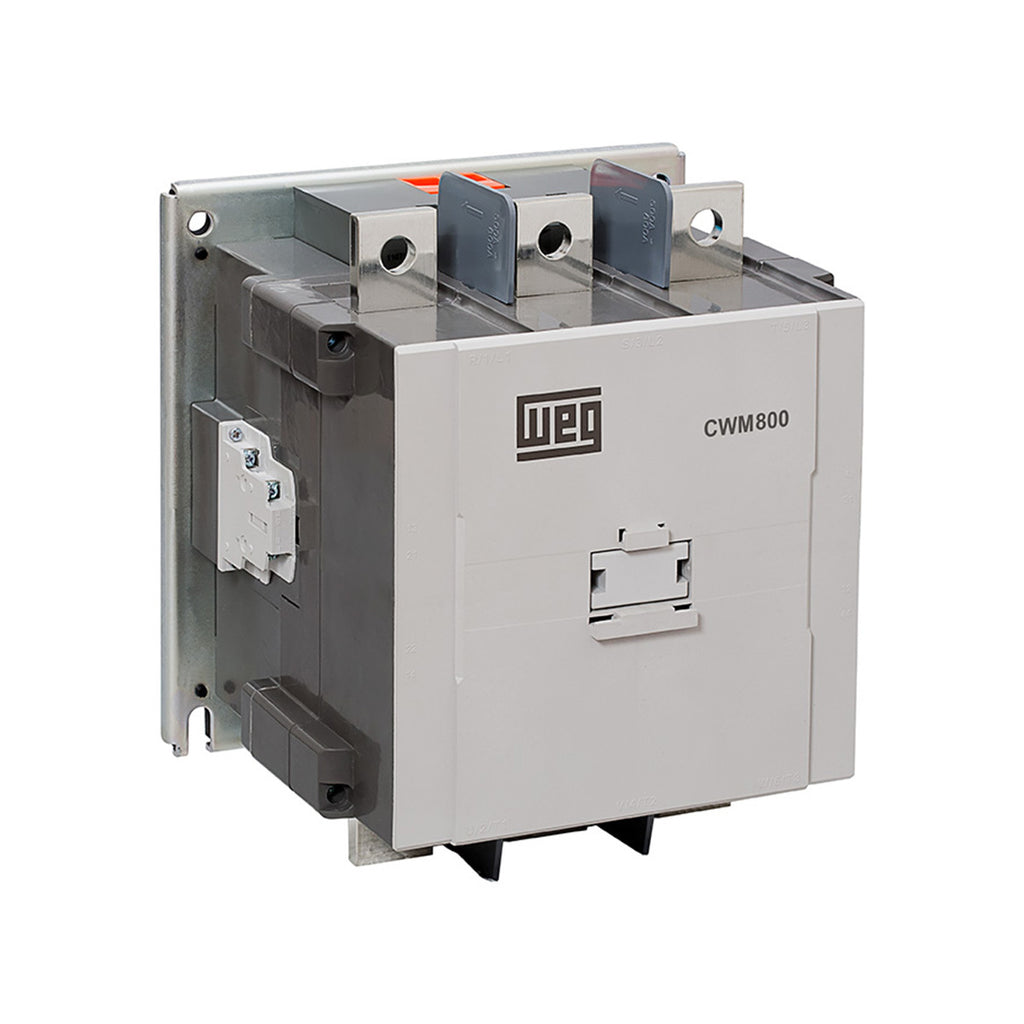

WEG CWM800-22-30E39 CONTACTOR CWM800-22-30E39
Roll over image to zoom in Click on image to zoom
WEG CWM800-22-30E39 CONTACTOR CWM800-22-30E39

WEG CWM800-22-30E39 CONTACTOR CWM800-22-30E39

WEGSKU: CWM800-22-30E39

GTIN :

MPN :

Dropship

Price:
$6,530.00

Description

WEG’s contactors present high technology and safety, and easy installation. Besides, its enclosed construction according to VDE 0106, the UL approval, and its easy access connections for one or two conductors.

Rated current 800 A
Reference CWM
Main contact 3 NO
Control voltage 200-240V 50/60Hz/200-220V DC
Terminal type Screw
Attributes
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 1000 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA 600 V
Rated operational frequency - minimum 50 Hz
Rated operational frequency - maximum 60 Hz
Mechanical lifespan (AC) 5 million
Mechanical lifespan (DC) 5 million
Electrical lifespan 0.5 million
Degree of protection IP (IEC 60529) - Main circuit IP00
Degree of protection IP (IEC 60529) - Control circuit IP20
Rated current 800 A
Rated current In - AC-4 630 A
Rated operational Current Ie AC-1 (¿ = 55 ºC) 1050 A
Rated operational voltage Ue - IEC 60947-4-1 690 V
Rated operational voltage Ue - UL/CSA 600 V
Height 310 mm (12.20 in)
Width 345 mm (13.60 in)
Depth 246,5 mm (9.70 in)
Gross weight 25.8 kg
