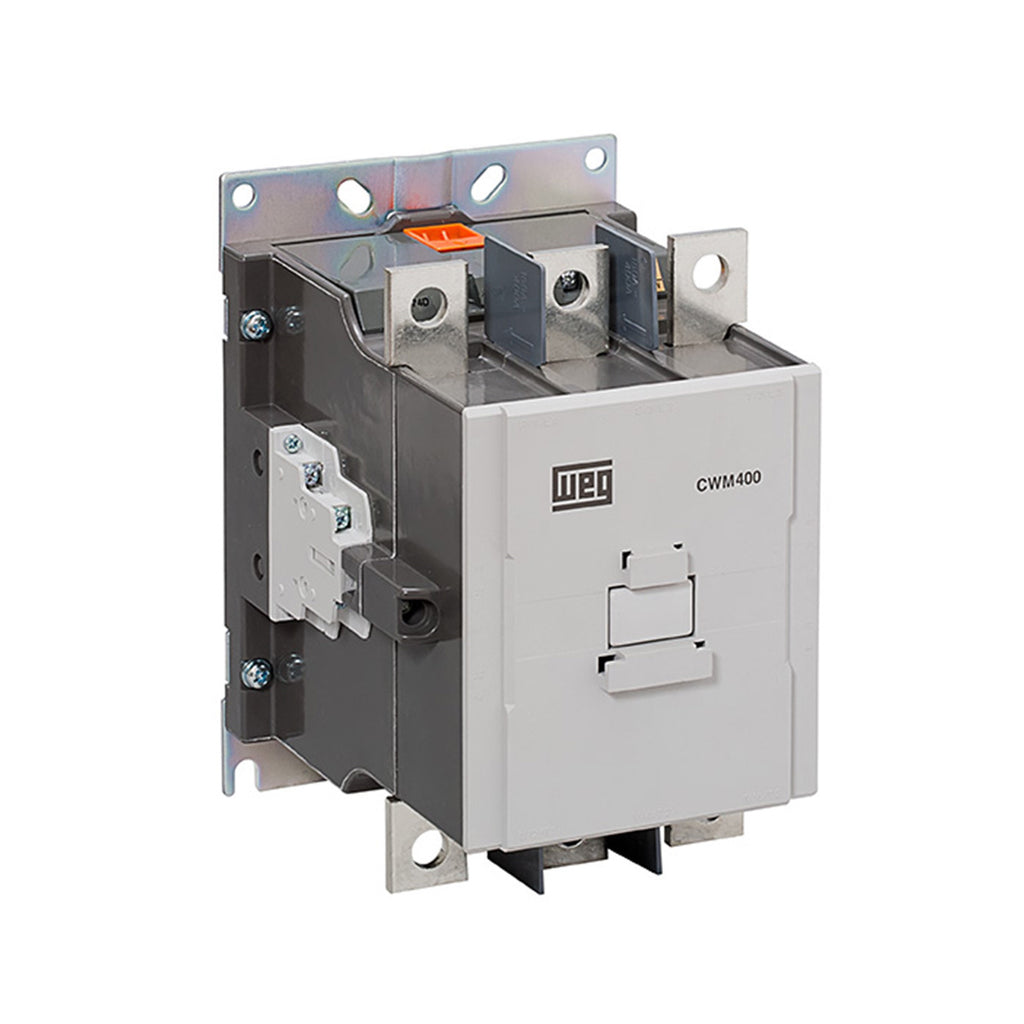

WEG CWM400-22-30D82 CONTACTOR CWM400-22-30D82
Roll over image to zoom in Click on image to zoom
WEG CWM400-22-30D82 CONTACTOR CWM400-22-30D82

WEG CWM400-22-30D82 CONTACTOR CWM400-22-30D82

WEGSKU: CWM400-22-30D82

GTIN :

MPN :

Dropship

Price:
$2,950.00

Description

WEG’s contactors present high technology and safety, and easy installation. Besides, its enclosed construction according to VDE 0106, the UL approval, and its easy access connections for one or two conductors.

Rated current 400 A
Reference CWM
Main contact 3 NO
Control voltage 440-575V 50/60Hz
Terminal type Screw
Attributes
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 1000 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA 600 V
Rated operational frequency - minimum 50 Hz
Rated operational frequency - maximum 60 Hz
Mechanical lifespan (AC) 5 million
Mechanical lifespan (DC) 5 million
Electrical lifespan 0.5 million
Degree of protection IP (IEC 60529) - Main circuit IP00
Degree of protection IP (IEC 60529) - Control circuit IP20
Rated current 400 A
Rated current In - AC-4 300 A
Rated operational Current Ie AC-1 (¿ = 55 ºC) 520 A
Rated operational voltage Ue - IEC 60947-4-1 690 V
Rated operational voltage Ue - UL/CSA 600 V
Height 243 mm (9.57 in)
Width 209 mm (8.23 in)
Depth 200,7 mm (7.90 in)
Gross weight 11.667 kg
