Description

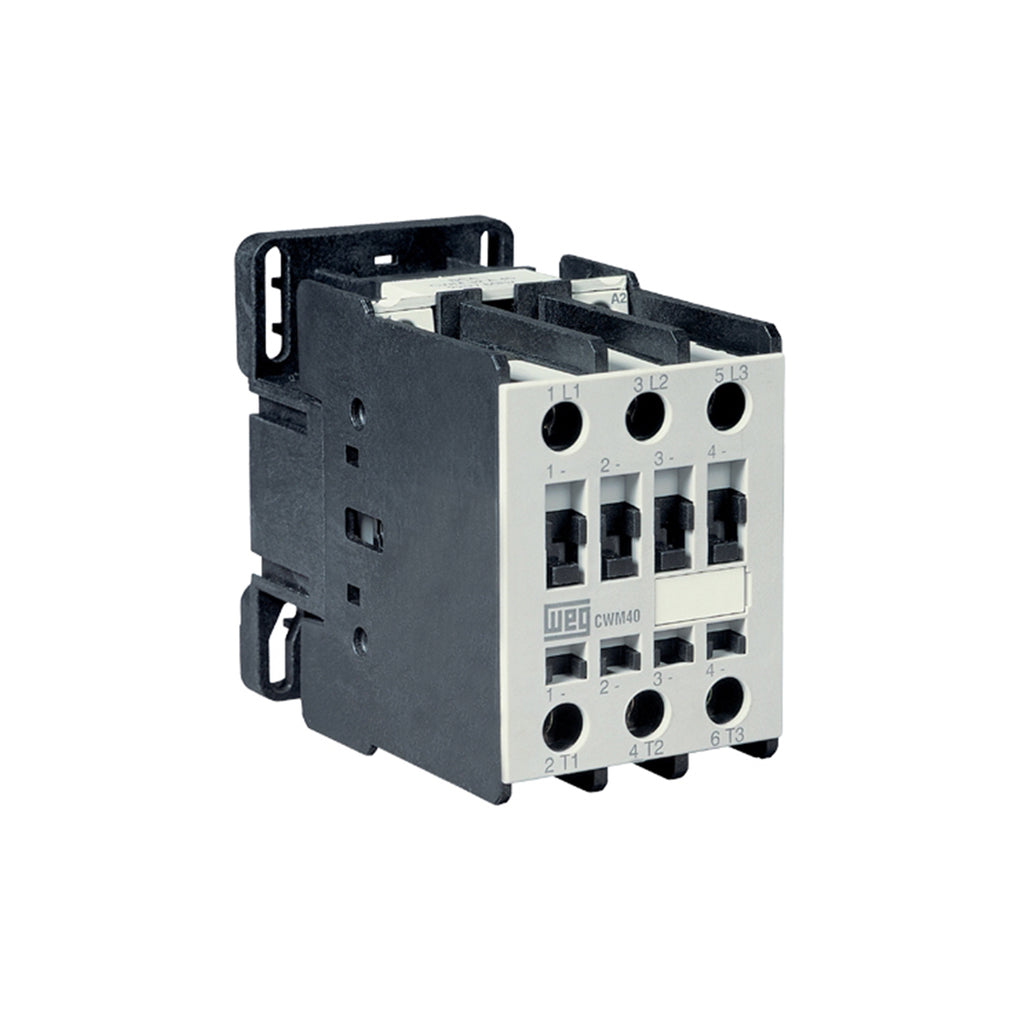

WEG’s contactors present high technology and safety, and easy installation. Besides, its enclosed construction according to VDE 0106, the UL approval, and its easy access connections for one or two conductors.
| Rated current | 40 A |
|---|---|
| Reference | CWM |
| Main contact | 3 NO |
| Control voltage | 110-130V DC |
| Terminal type | Screw |
Attributes
| Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 | 1000 V |
|---|---|
| Rated insulation voltage Ui (pollution degree 3) - UL, CSA | 600 V |
| Rated operational frequency - minimum | 25 Hz |
| Rated operational frequency - maximum | 400 Hz |
| Mechanical lifespan (AC) | 10 million |
| Mechanical lifespan (DC) | 10 million |
| Electrical lifespan | 1,2 million |
| Degree of protection IP (IEC 60529) - Main circuit | IP10 |
| Degree of protection IP (IEC 60529) - Control circuit | IP20 |
| Rated current | 40 A |
| Rated current In - AC-4 | 18,5 A |
| Rated operational Current Ie AC-1 (¿ = 55 ºC) | 60 A |
| Rated operational voltage Ue - IEC 60947-4-1 | 690 V |
| Rated operational voltage Ue - UL/CSA | 600 V |
| Height | 89 mm (3.50 in) |
| Width | 55 mm (2.17 in) |
| Depth | 118 mm (4.65 in) |
| Gross weight | 1.5 kg |
