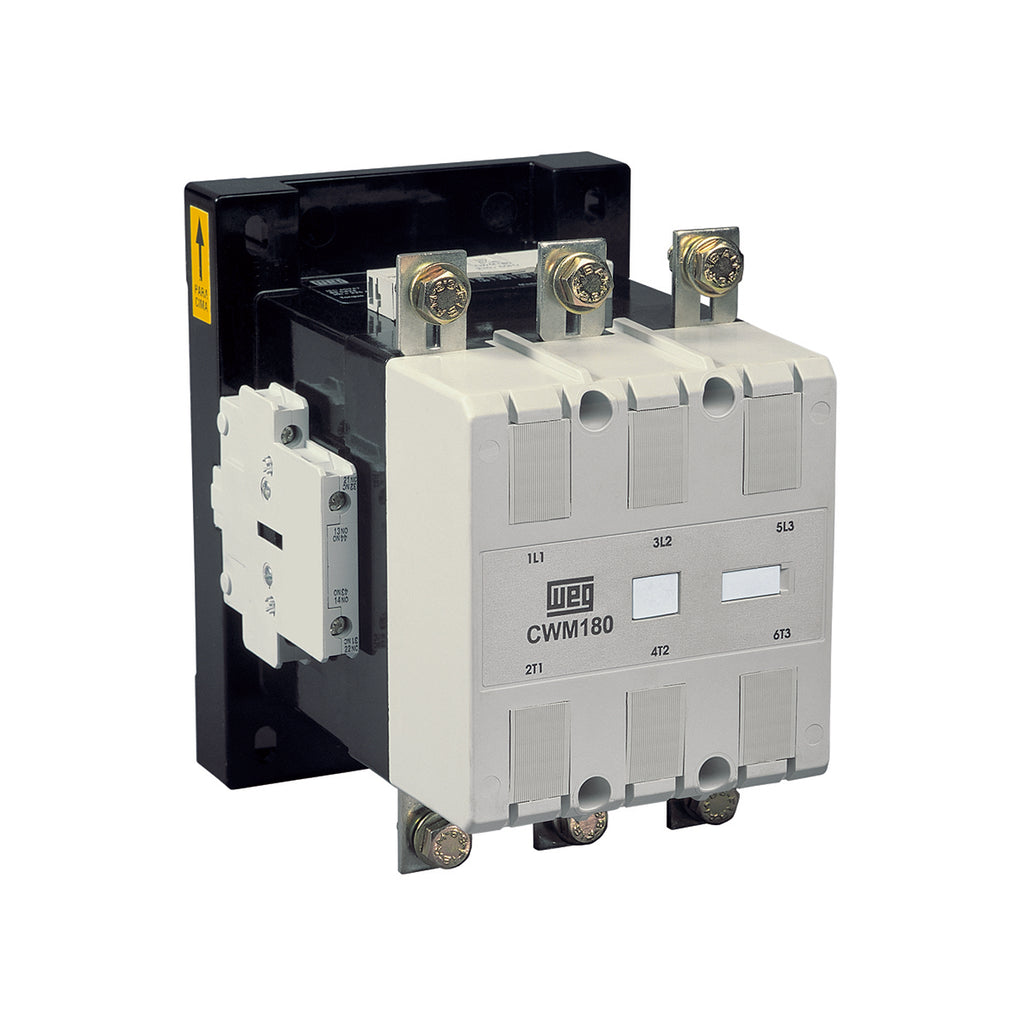

WEG CWM180-22-30E13 CONTACTOR CWM180-22-30E13
Roll over image to zoom in Click on image to zoom
WEG CWM180-22-30E13 CONTACTOR CWM180-22-30E13

WEG CWM180-22-30E13 CONTACTOR CWM180-22-30E13

WEGSKU: CWM180-22-30E13

GTIN :

MPN :

Dropship

Price:
$1,350.00

Description

WEG’s contactors present high technology and safety, and easy installation. Besides, its enclosed construction according to VDE 0106, the UL approval, and its easy access connections for one or two conductors.

Rated current 180 A
Reference CWM
Main contact 3 NO
Control voltage 208-250V 50/60Hz-DC
Terminal type Screw
Attributes
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 1000 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA 600 V
Rated operational frequency - minimum 25 Hz
Rated operational frequency - maximum 400 Hz
Mechanical lifespan (AC) 10 million
Mechanical lifespan (DC) 10 million
Electrical lifespan 1 million
Degree of protection IP (IEC 60529) - Main circuit IP00
Degree of protection IP (IEC 60529) - Control circuit IP20
Rated current 180 A
Rated current In - AC-4 73 A
Rated operational Current Ie AC-1 (¿ = 55 ºC) 225 A
Rated operational voltage Ue - IEC 60947-4-1 1000 V
Rated operational voltage Ue - UL/CSA 600 V
Height 183 mm (7.20 in)
Width 135 mm (5.31 in)
Depth 172 mm (6.77 in)
Gross weight 5.025 kg
