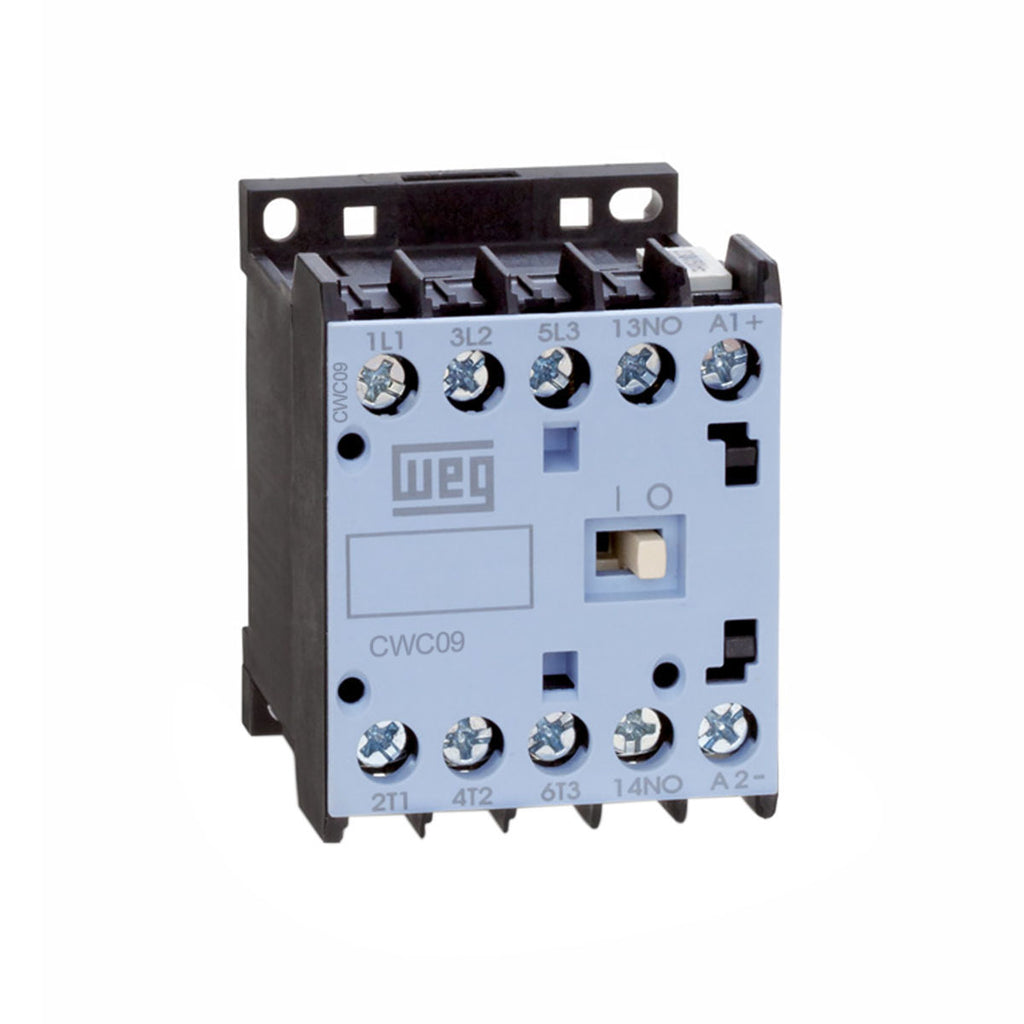

Description
Compact and complete solution for control and operation of circuits. Wide range of accessories, allowing fast and compact assembly for various applications.
| Rated current | 9 A |
|---|---|
| Reference | CWC0 |
| Main contact | 3 NO |
| Control voltage | 180-208V 50Hz/208-240V 60Hz |
| Terminal type | Screw |
Attributes
| Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 | 690 V |
|---|---|
| Rated insulation voltage Ui (pollution degree 3) - UL, CSA | 600 V |
| Rated operational frequency - minimum | 25 Hz |
| Rated operational frequency - maximum | 400 Hz |
| Mechanical lifespan (AC) | 10 million |
| Mechanical lifespan (DC) | 12 million |
| Electrical lifespan | 1,3 million |
| Degree of protection IP (IEC 60529) - Main circuit | IP20 |
| Degree of protection IP (IEC 60529) - Control circuit | IP20 |
| Rated current | 9 A |
| Rated current In - AC-4 | 3,5 A |
| Rated operational Current Ie AC-1 (¿ = 55 ºC) | 20 A |
| Rated operational voltage Ue - IEC 60947-4-1 | 690 V |
| Rated operational voltage Ue - UL/CSA | 600 V |
| Height | 58 mm (2.28 in) |
| Width | 45 mm (1.77 in) |
| Depth | 52 mm (2.05 in) |
| Gross weight | 194 g |
