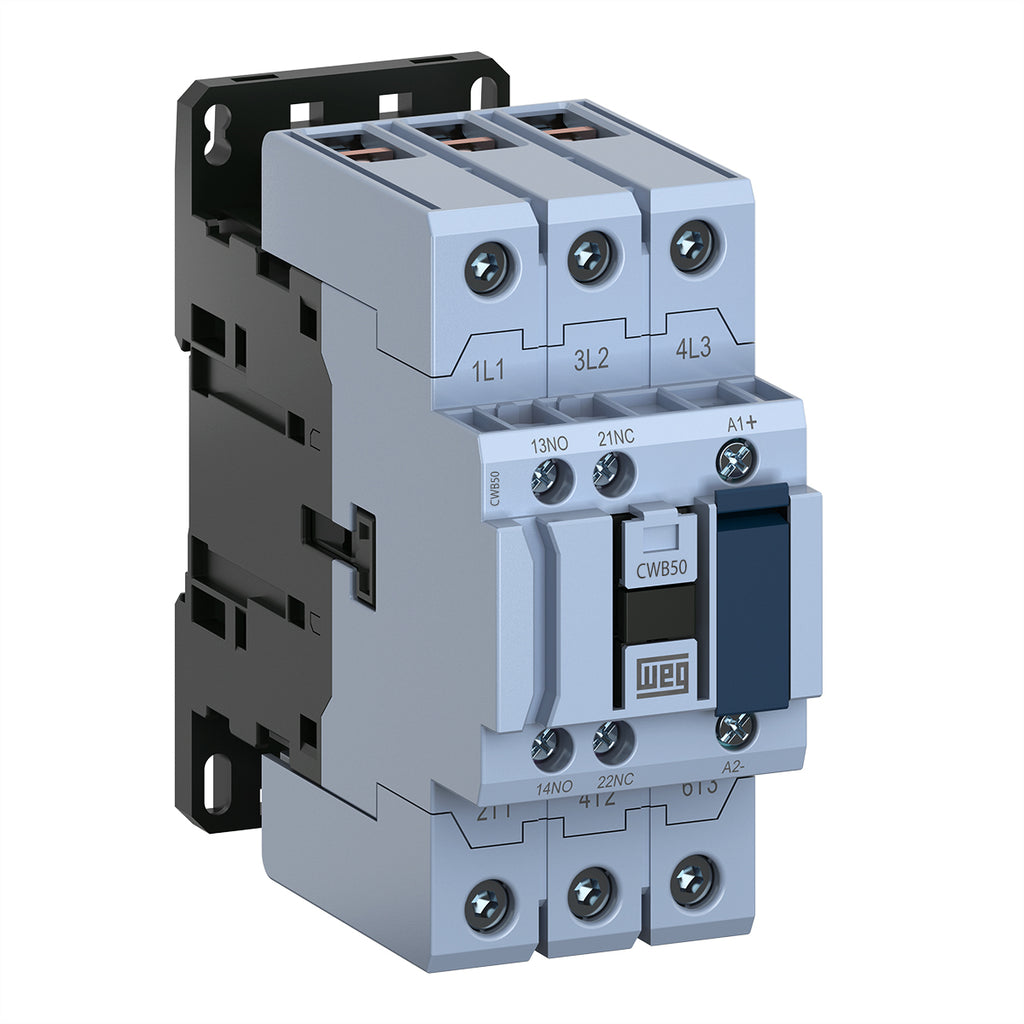

WEG CWB50-11-30V24 CONTACTOR CWB50-11-30V24
Roll over image to zoom in Click on image to zoom
WEG CWB50-11-30V24 CONTACTOR CWB50-11-30V24

WEG CWB50-11-30V24 CONTACTOR CWB50-11-30V24

WEGSKU: CWB50-11-30V24

GTIN :

MPN :

Dropship

Price:
$225.00

Description

Developed according to IEC 60947 and UL 508 international standards, the new WEG CWB line of contactors meets the requirements of a wide range of industrial applications worldwide.

Rated current 50 A
Reference CWB
Main contact 3 NO
Control voltage 180-208V 50Hz/208-240V 60Hz
Terminal type Screw
Attributes
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 1000 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA 600 V
Rated operational frequency - minimum 25 Hz
Rated operational frequency - maximum 400 Hz
Mechanical lifespan (AC) 6 million
Mechanical lifespan (DC) 6 million
Electrical lifespan 1.6 million
Degree of protection IP (IEC 60529) - Main circuit IP10
Degree of protection IP (IEC 60529) - Control circuit IP20
Rated current 50 A
Rated current In - AC-4 18,5 A
Rated operational Current Ie AC-1 (¿ = 55 ºC) 90 A
Rated operational voltage Ue - IEC 60947-4-1 1000 V
Rated operational voltage Ue - UL/CSA 600 V
Height 115 mm (4.53 in)
Width 54 mm (2.13 in)
Depth 120.7 mm (4.75 in)
Gross weight 0.91 kg
