Description

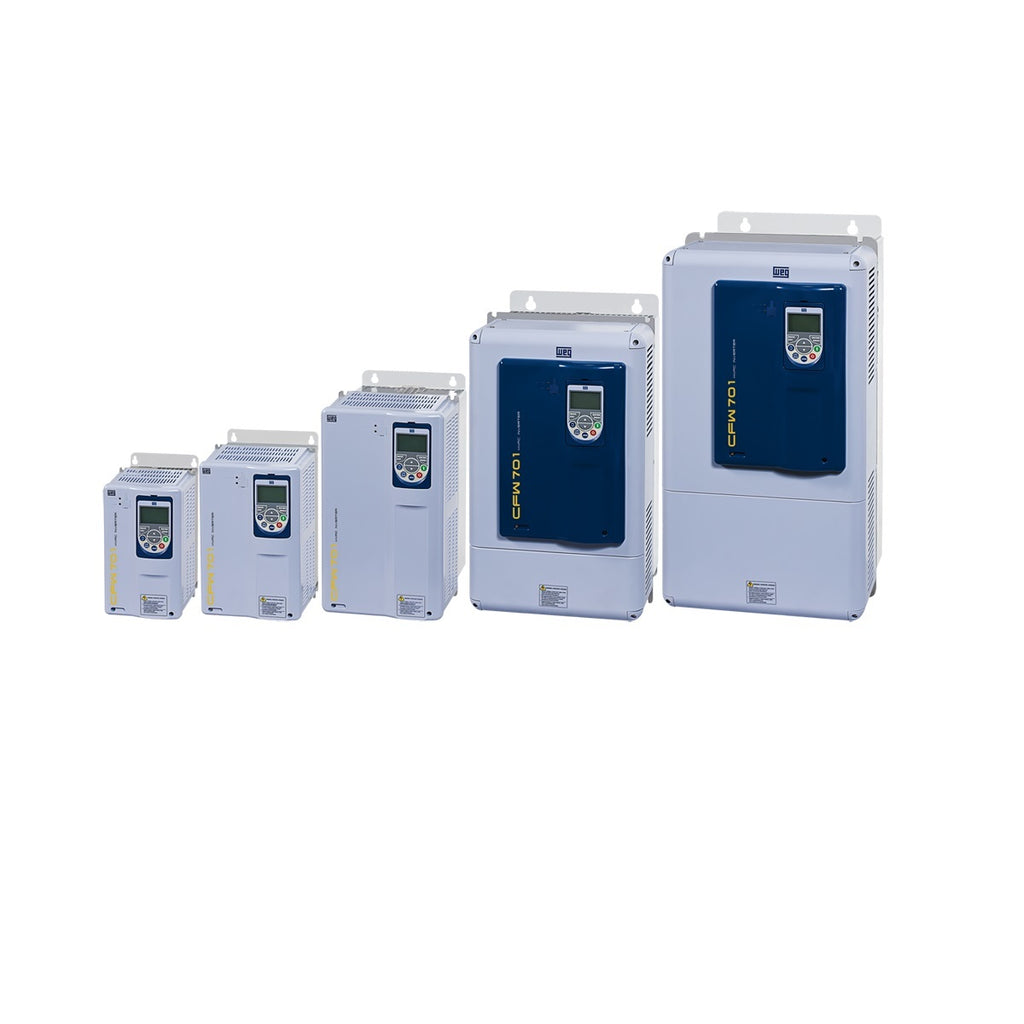

The HVAC-R market deserves a dedicated and complete Drive. The CFW701 covers power levels from 1.1 to 132 kW (1.5 to 175 HP).
| Power supply | 380-480 V |
|---|---|
| Input phases | Three-phase |
| Configuration | With options |
| Rated current (ND) | 45 |
| Rated current (HD) | 38 |
| RFI filter | Optional filter C3 |
| Enclosure | NEMA1/IP20 |
| Dynamic braking | Standard with braking |
| Safety Stop | No |
| Electronic supply | Internal |
Attributes
| Rated efficiency | ≥ 97% |
|---|---|
| Link Inductor | Yes |
| Conformal Coating | 3C2 (IEC 60721-3-3:2002) |
| SoftPLC | Yes, incorporated |
| Temperature | -10 °C a |
| USB port | Yes, available in HMI |
| Memory card | Not included in the product |
| I/O standard | 8 x DI; 2 relés NA/NF e 3 transistores x DO; 3 x AI; 2 x AO. |
| Safety Stop | No |
| Display | Graphic LCD |
