Description

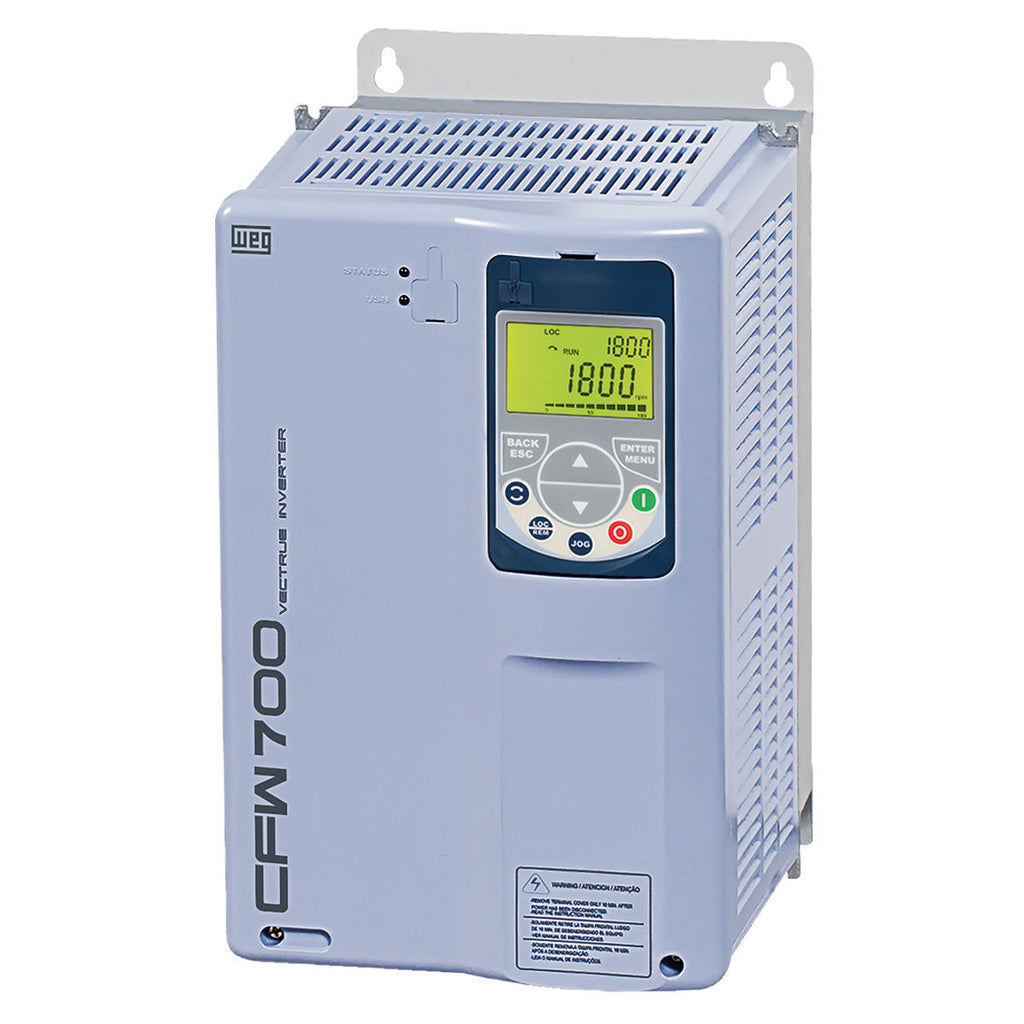

General purpose applications require everything in the same Drive. The CFW700 covers power levels from 1.1 to 132kW (1.5 to 150 HP). One of the main focus for WEG Drives is have a robust product for general purpose applications. The CFW700 is a hight performance product with torque and speed control.
| Power supply | 500-600 V |
|---|---|
| Input phases | Three-phase |
| Configuration | Basic |
| Rated current (ND) | 7 |
| Rated current (HD) | 6.5 |
| RFI filter | Without filter |
| Enclosure | IP20 |
| Dynamic braking | Standard with braking |
| Safety Stop | No |
| Electronic supply | Internal |
Attributes
| Control method - induction motor | V/f, VVW, Sensorless and Encoder |
|---|---|
| Rated efficiency | ≥ 97% |
| Link Inductor | Yes |
| Conformal Coating | 3C2 (IEC 60721-3-3:2002) |
| SoftPLC | Yes, incorporated |
| Temperature | -10 °C a 50 °C |
| USB port | Yes, available in HMI |
| Memory card | Not included in the product |
| I/O standard | 8 x DI; 1 relé NA/NF e 4 transistores x DO; 2 x AI; 2 x AO. |
| Safety Stop | No |
| Display | Graphic LCD |
