Description

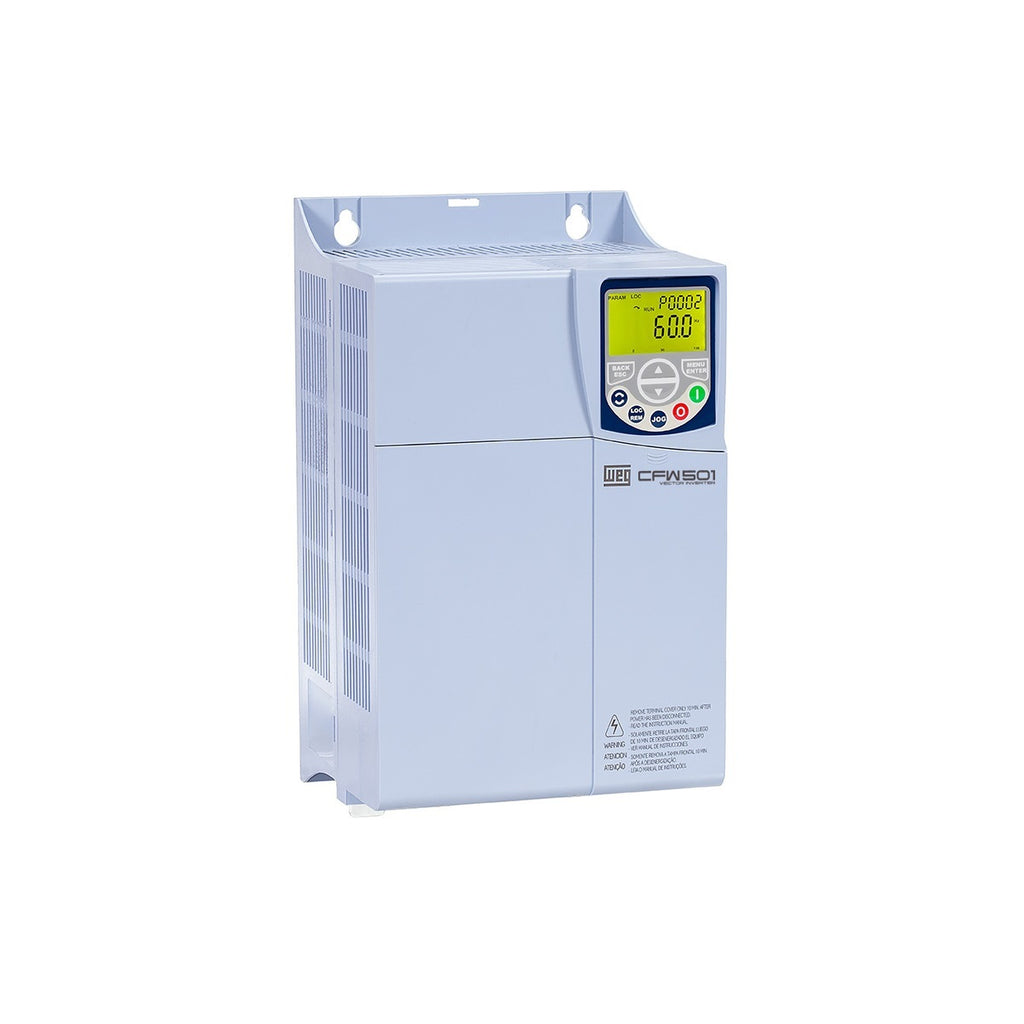

The CFW501 inverter line has been developed with dedicated features for HVAC-R applications. With compact size and special functions for this market, it is the ideal solution for pumps and fans, and can be used in shopping centers, hospitals, hotels, airports or similar.
| Power supply | 380-480 V |
|---|---|
| Input phases | Three-phase |
| Configuration | With options |
| Rated current (HD) | 31 |
| RFI filter | With filter (C3 category) |
| Enclosure | IP20 |
| Dynamic braking | Standard with braking |
| Safety Stop | Not available |
| Electronic supply | Not Available |
Attributes
| Control method - induction motor | V/f (escalar) and VVW |
|---|---|
| Rated efficiency | ≥ 97% |
| Link Inductor | No |
| Conformal Coating | 3C2 (IEC 60721-3-3:2002) |
| SoftPLC | Yes, incorporated |
| Temperature | 0 °C a 50 °C |
| USB port | Only with plug-in |
| Memory card | Not included in the product |
| I/O standard | 4 x DI; 2 relés NA/NF e 1 transistor x DO; 2 x AI; 1 x AO. |
| Safety Stop | Not available |
| Display | Numeric LCD |
