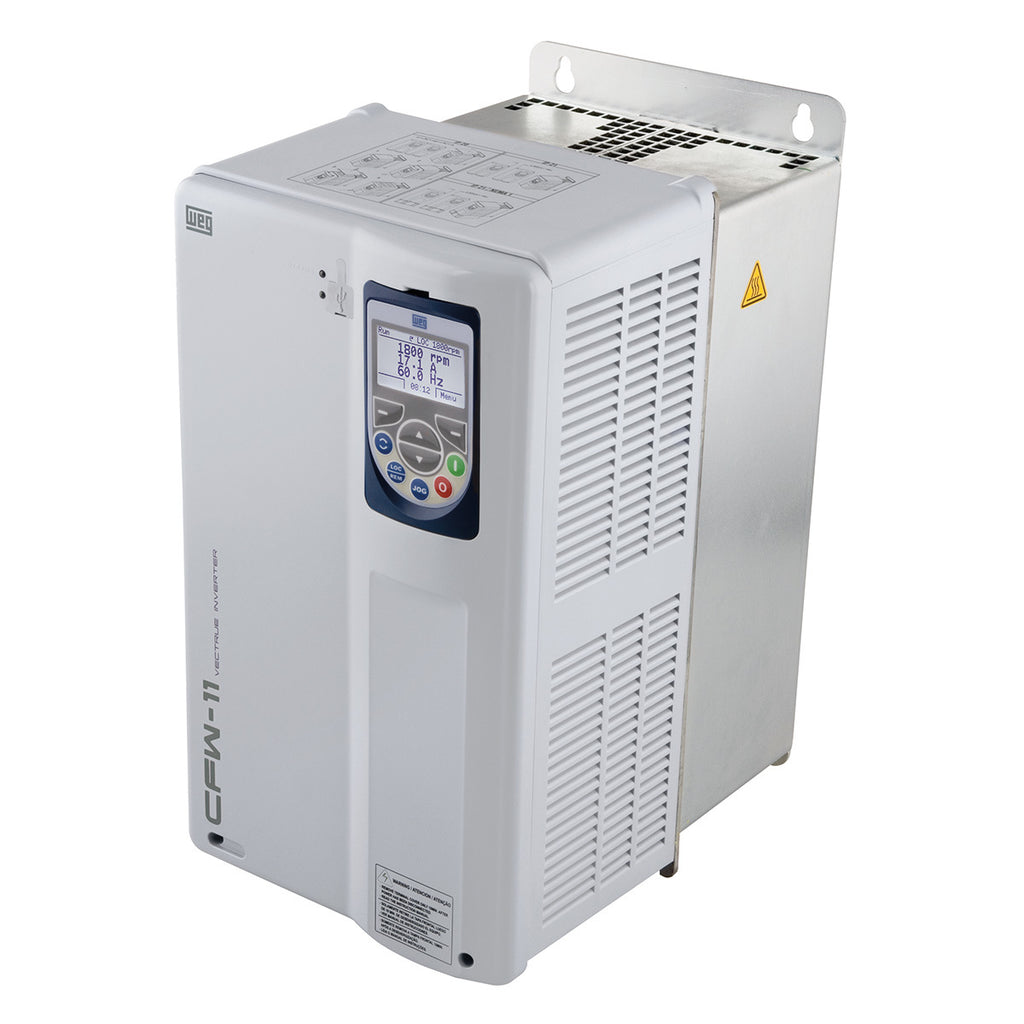

WEG CFW110054T2ON1Z DRIVE CFW110054T2ON1Z
Roll over image to zoom in Click on image to zoom
WEG CFW110054T2ON1Z DRIVE CFW110054T2ON1Z

WEG CFW110054T2ON1Z DRIVE CFW110054T2ON1Z

WEGSKU: CFW110054T2ON1Z

Dropship

Get it by Sun, Dec 14 - Fri, Dec 19

Price:
$3,520.00

Description

With high technology for control of three-phase induction motors and permanent magnets synchronous motors - Magnet, the CFW11 Series achieves the performance increase for the most complex drive systems. Design exclusive for industrial or professional use, the CFW11 presents many innovations adding significant benefits to customers, a lot for its simplicity of installation and operation, based in the Plug-and-Play philosophy also allowing simple and quick installation of its accessories.

Power supply 200-240 V
Input phases Three-phase
Configuration With options
Rated current (ND) 54
Rated current (HD) 45
RFI filter Without filter
Enclosure NEMA1
Dynamic braking Standard with braking
Safety Stop No
Electronic supply Internal
Attributes
Control method - induction motor V/f, VVW, Vector and PM motor
Rated efficiency ≥ 97%
Link Inductor Yes
Conformal Coating 3C2 (IEC 60721-3-3:2002)
SoftPLC Yes, incorporated
Temperature -10 °C a 50 °C
USB port Standard in the product
Memory card Included in the product
I/O standard 6 x DI; 3 relés NA/NF x DO; 2 x AI; 2 x AO.
Safety Stop No
Display Graphic LCD
