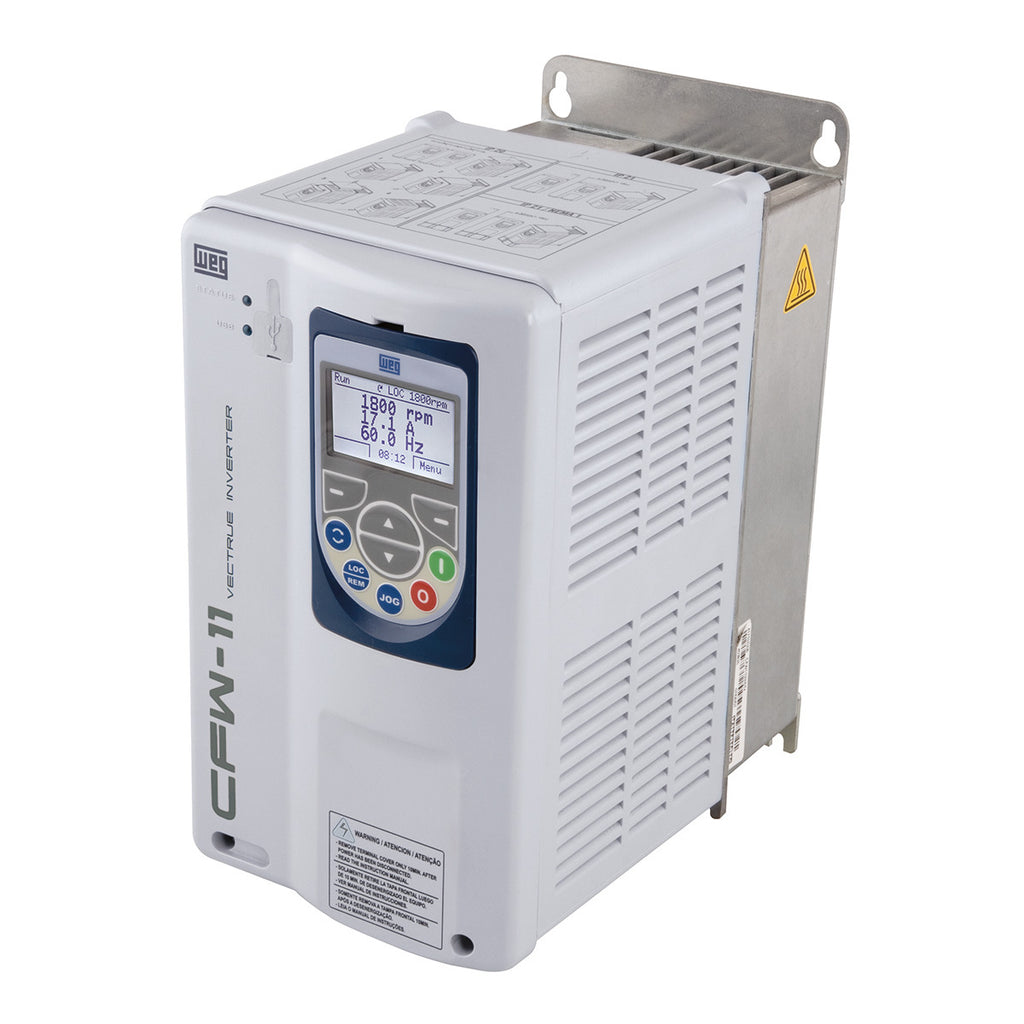

WEG CFW110007T2ON1Z DRIVE CFW110007T2ON1Z
Roll over image to zoom in Click on image to zoom
WEG CFW110007T2ON1Z DRIVE CFW110007T2ON1Z

WEG CFW110007T2ON1Z DRIVE CFW110007T2ON1Z

WEGSKU: CFW110007T2ON1Z

Dropship

Get it by Sat, Dec 13 - Thu, Dec 18

Price:
$1,296.00

Description

With high technology for control of three-phase induction motors and permanent magnets synchronous motors - Magnet, the CFW11 Series achieves the performance increase for the most complex drive systems. Design exclusive for industrial or professional use, the CFW11 presents many innovations adding significant benefits to customers, a lot for its simplicity of installation and operation, based in the Plug-and-Play philosophy also allowing simple and quick installation of its accessories.

Power supply 200-240 V
Input phases Three-phase
Configuration With options
Rated current (ND) 7
Rated current (HD) 5.5
RFI filter Without filter
Enclosure NEMA1
Dynamic braking Standard with braking
Safety Stop No
Electronic supply Internal
Attributes
Control method - induction motor V/f, VVW, Vector and PM motor
Rated efficiency ≥ 97%
Link Inductor Yes
Conformal Coating 3C2 (IEC 60721-3-3:2002)
SoftPLC Yes, incorporated
Temperature -10 °C a 50 °C
USB port Standard in the product
Memory card Included in the product
I/O standard 6 x DI; 3 relés NA/NF x DO; 2 x AI; 2 x AO.
Safety Stop No
Display Graphic LCD
