Description

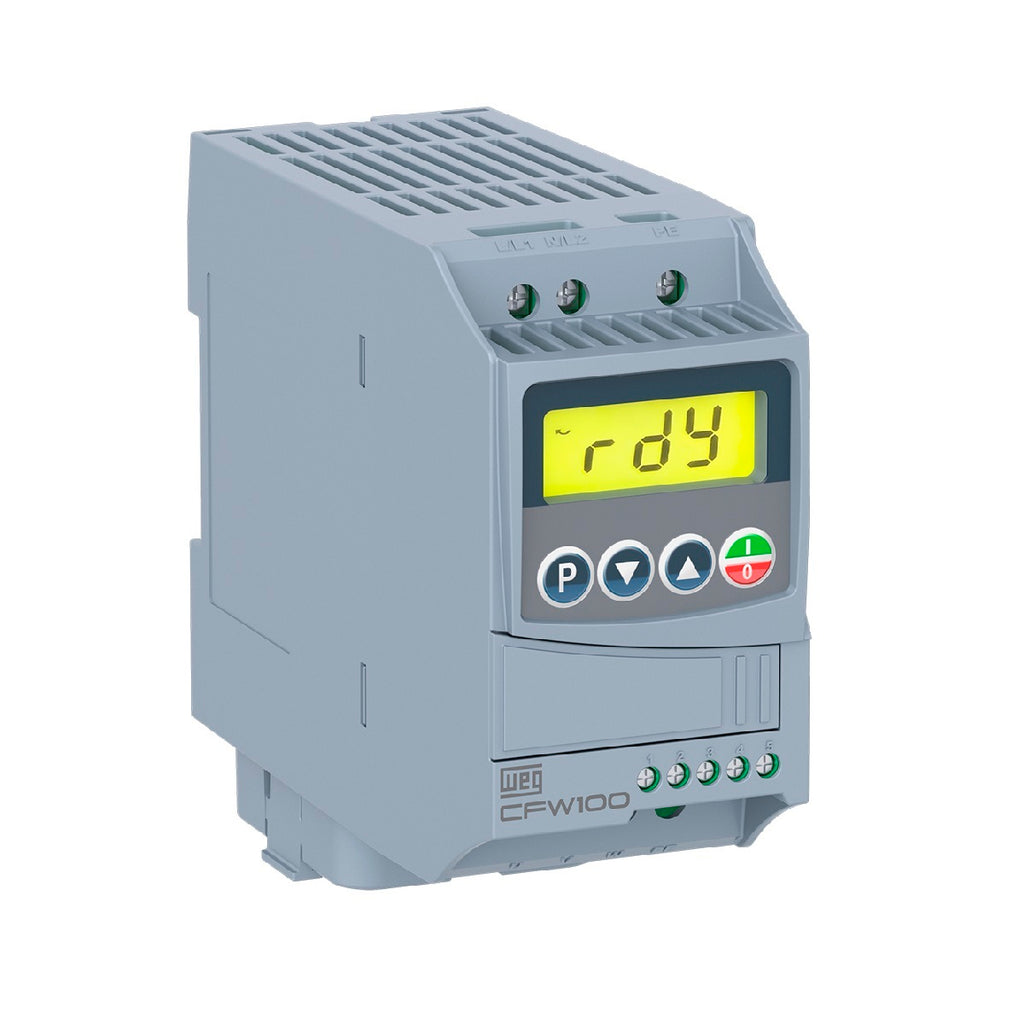

The smallest Drive on the market. The CFW100 covers power levels from 0.18 to 0.75 kW (0.25 to 1 HP).
| Power supply | 110-127 V |
|---|---|
| Input phases | Single-phase |
| Rated current (HD) | 2.6 |
| Enclosure | IP20 |
Attributes
| Control method - induction motor | V/f (escalar) and VVW |
|---|---|
| Rated efficiency | ≥ 97% |
| Conformal Coating | 3C2 (IEC 60721-3-3:2002) |
| SoftPLC | Yes, incorporated |
| USB port | Yes, by CFW100-CUSB |
| Memory card | Not included in the product |
| Display | Numeric LCD |
