Description

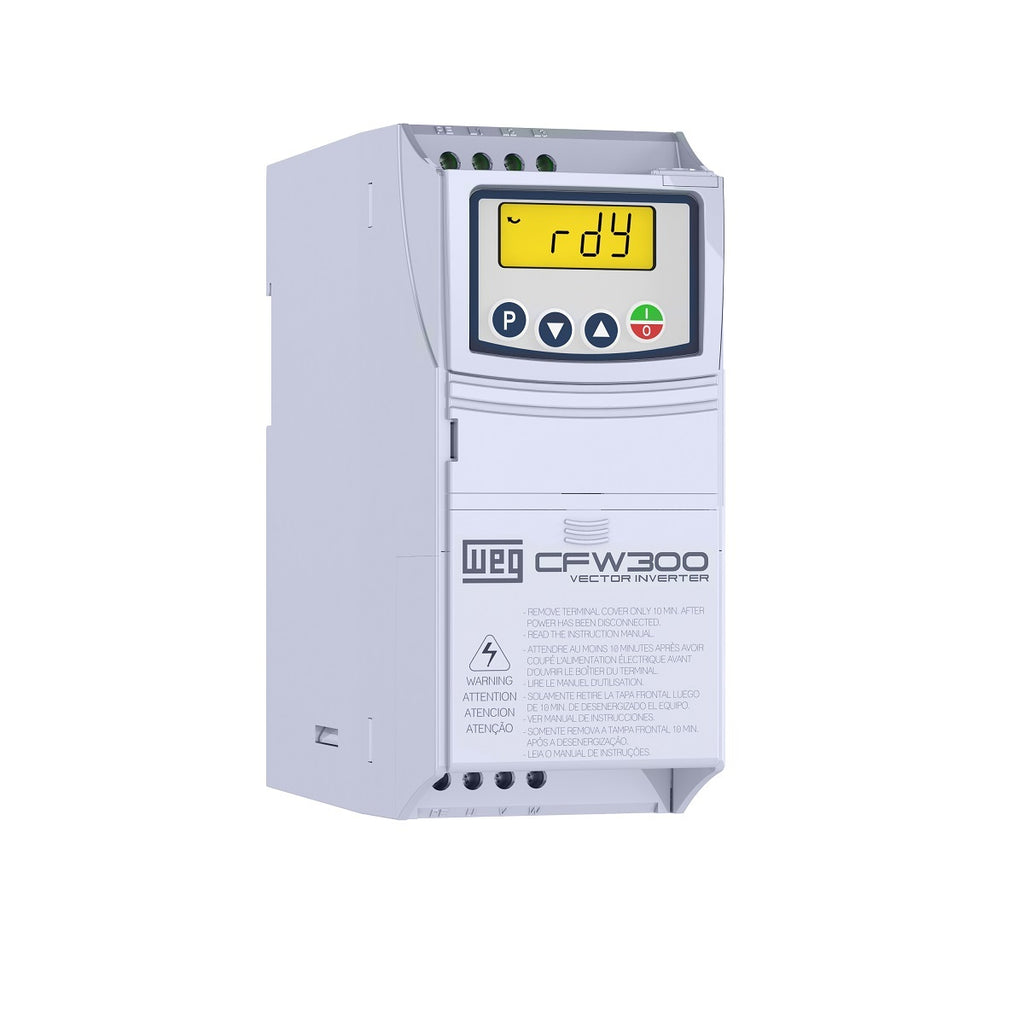

The CFW300 variable speed drive is a high-performance VSD for three-phase induction motors, ideal for applications on machines or equipment that require precise control and easy operation.It features compact size, contactor-style electrical instalation, selectable WEG vector control (VVW) or scalar control (V/F), built-in operating interface (HMI), SoftPLC, free WPS programming software and plug-in accessories that may be added to provide extended functionalities, making it a flexible solution of excellent cost effectiveness.
| Power supply | 200-240 V |
|---|---|
| Input phases | Single-phase |
| Rated current (ND) | 4.2 |
| Rated current (HD) | 4.2 |
| Enclosure | IP20 |
| Dynamic braking | Standard without braking |
Attributes
| Control method - induction motor | V/f (escalar) and VVW |
|---|---|
| Rated efficiency | ≥ 97% |
| Link Inductor | No |
| Conformal Coating | 3C2 (IEC 60721-3-3:2002) |
| SoftPLC | Yes, incorporated |
| Temperature | 0 °C a 50 °C |
| USB port | Yes, by CFW300-CUSB |
| Memory card | Not included in the product |
| I/O standard | 4 x DI; 1 relé NA/NF x DO; 1 x AI; Somente com plug-in x AO. |
| Display | Numeric LCD |
