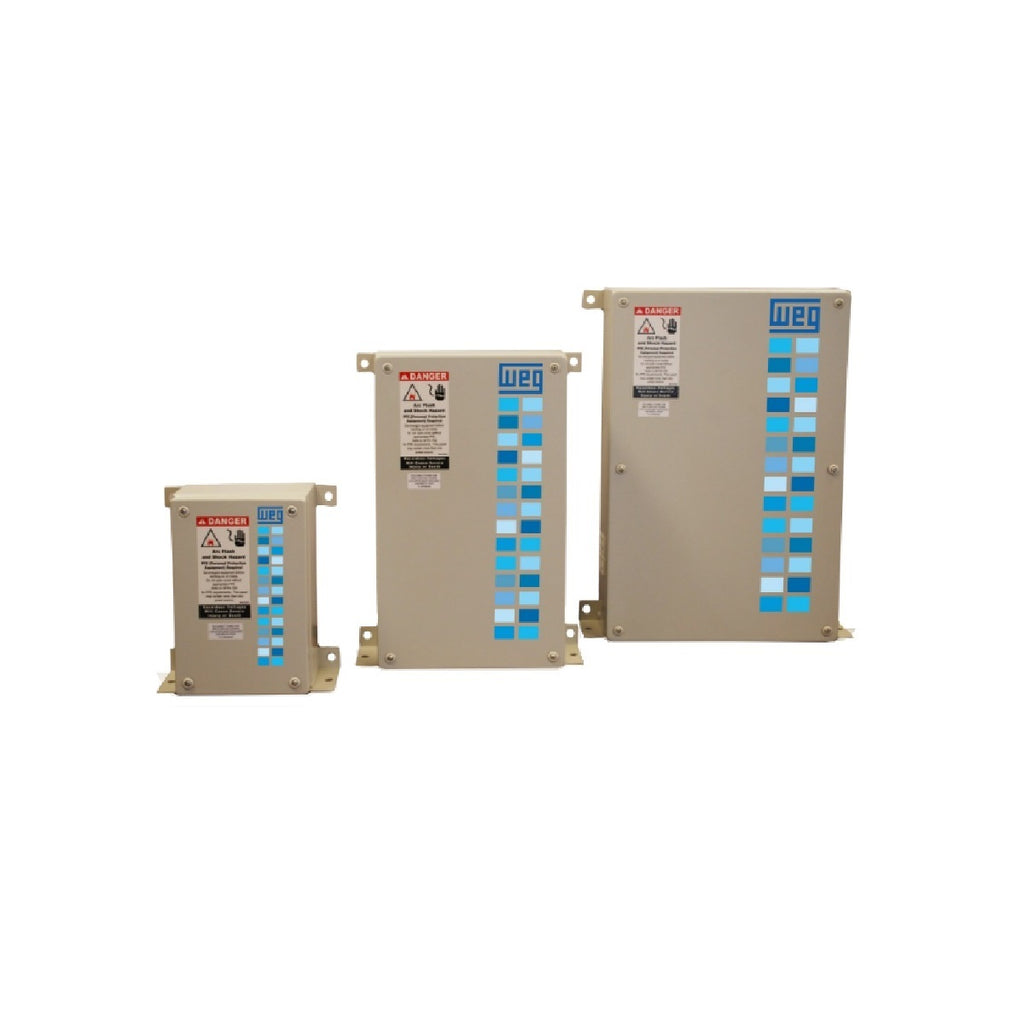

WEG Enclosed Power Factor Capacitor Banks BCWT, include Three-phase WEG UCWT Capacitors in a NEMA 4 enclosure that is easy to install and wire. Are assembled with high performance and low loss, self healing polypropolene dielectric film. Available with or without fuses. NEMA 4 enclosure is standard, so no need to worry whether the installation is indoors or outdoors.
| Protection device |
Non-fused |
| Rated voltage |
480.0 V |
| Grid frequency |
60 Hz |
| Reactive power |
75.0 kVAr |
| Application |
Power Factor Correction |
| Type |
Fixed |
| Enclosure rating |
Nema 4 |
Attributes
| Model |
BCWTD750V53F4-N |
| Protection device |
Non-fused |
| Rated voltage |
480.0 V |
| Grid frequency |
60 Hz |
| Reactive power |
75.0 kVAr |
| Application |
Power Factor Correction |
| Type |
Fixed |
| Rated current |
90.21 A |
| Dielectric material |
Metallized polypropylene |
| Enclosure rating |
Nema 4 |
| Enclosure dimensions (H x W x D) |
23.6" x 15.8" x 4.8" |
