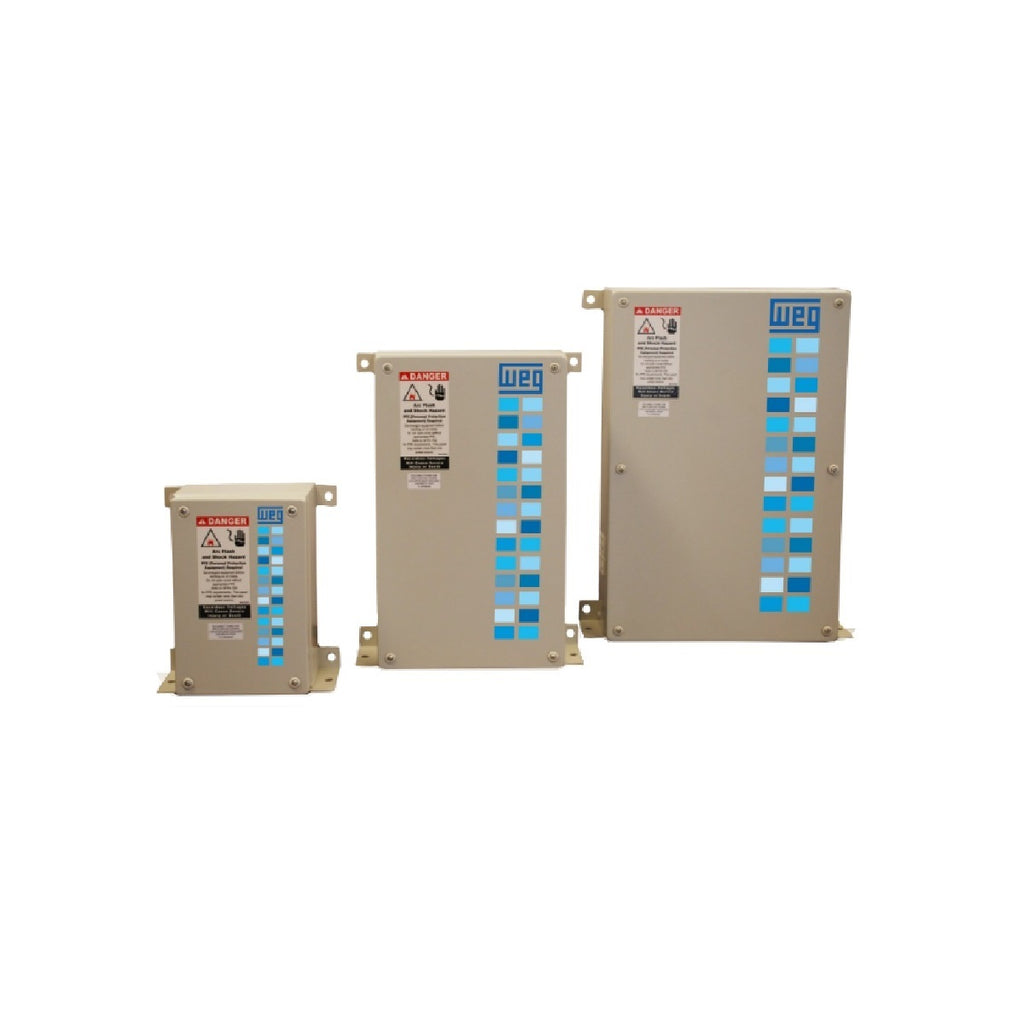

WEG BCWTD300V53D4-N CAPACITOR BANK BCWTD300V53D4-N


Price:
Sale price$956.54

Description

WEG Enclosed Power Factor Capacitor Banks BCWT, include Three-phase WEG UCWT Capacitors in a NEMA 4 enclosure that is easy to install and wire. Are assembled with high performance and low loss, self healing polypropolene dielectric film. Available with or without fuses. NEMA 4 enclosure is standard, so no need to worry whether the installation is indoors or outdoors.

Protection device Non-fused
Rated voltage 480.0 V
Grid frequency 60 Hz
Reactive power 30.0 kVAr
Application Power Factor Correction
Type Fixed
Enclosure rating Nema 4
Attributes
Model BCWTD300V53D4-N
Protection device Non-fused
Rated voltage 480.0 V
Grid frequency 60 Hz
Reactive power 30.0 kVAr
Application Power Factor Correction
Type Fixed
Rated current 36.08 A
Dielectric material Metallized polypropylene
Enclosure rating Nema 4
Enclosure dimensions (H x W x D) 19.7" x 11.8" x 4.8"
