WEG BCWTC200V29A4-F CAPACITOR BANK BCWTC200V29A4-F


Price:
Sale price$629.83

Description

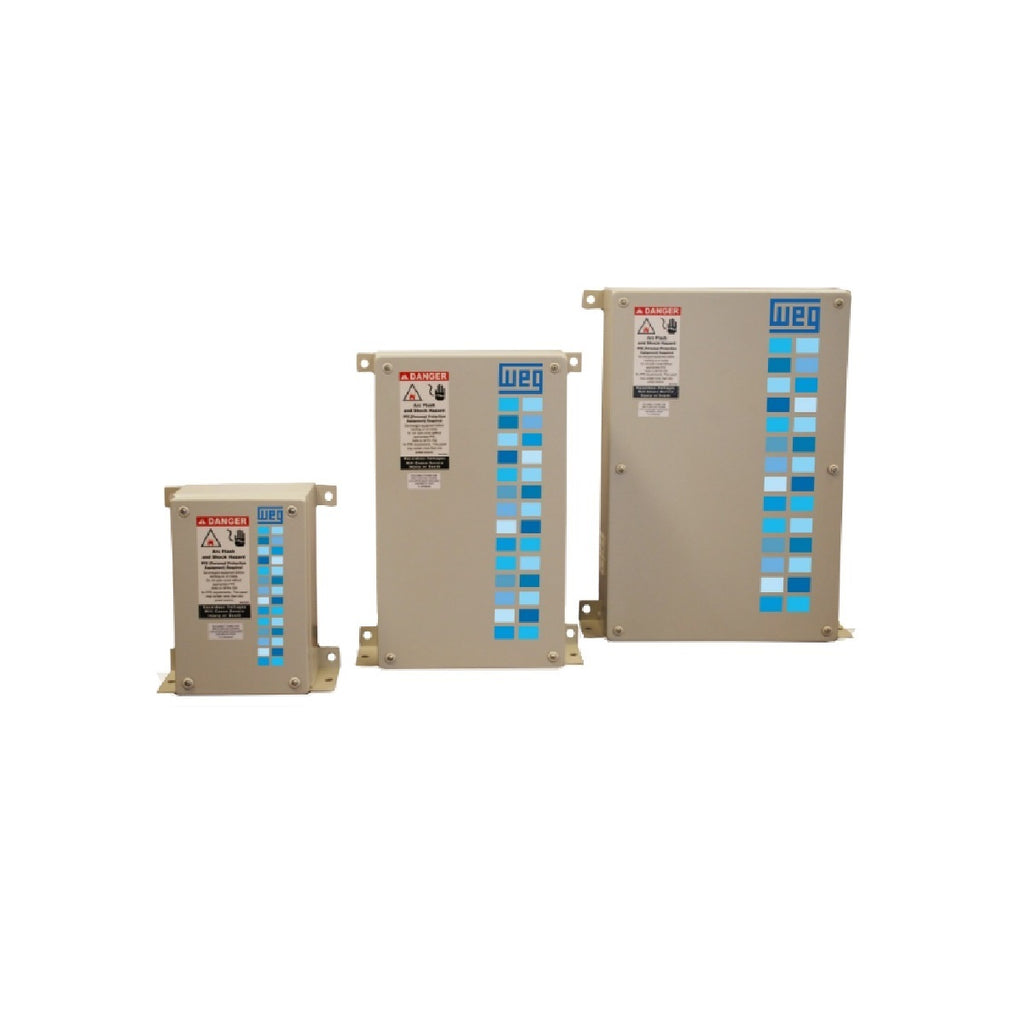

WEG Enclosed Power Factor Capacitor Banks BCWT, include Three-phase WEG UCWT Capacitors in a NEMA 4 enclosure that is easy to install and wire. Are assembled with high performance and low loss, self healing polypropolene dielectric film. Available with or without fuses. NEMA 4 enclosure is standard, so no need to worry whether the installation is indoors or outdoors.

Protection device Fused
Rated voltage 240.0 V
Grid frequency 60 Hz
Reactive power 2.0 kVAr
Application Power Factor Correction
Type Fixed
Enclosure rating Nema 4
Attributes
Model BCWTC200V29A4-F
Protection device Fused
Rated voltage 240.0 V
Grid frequency 60 Hz
Reactive power 2.0 kVAr
Application Power Factor Correction
Type Fixed
Rated current 4.81 A
Dielectric material Metallized polypropylene
Enclosure rating Nema 4
Enclosure dimensions (H x W x D) 11.8" x 7.9" x 4.8"
