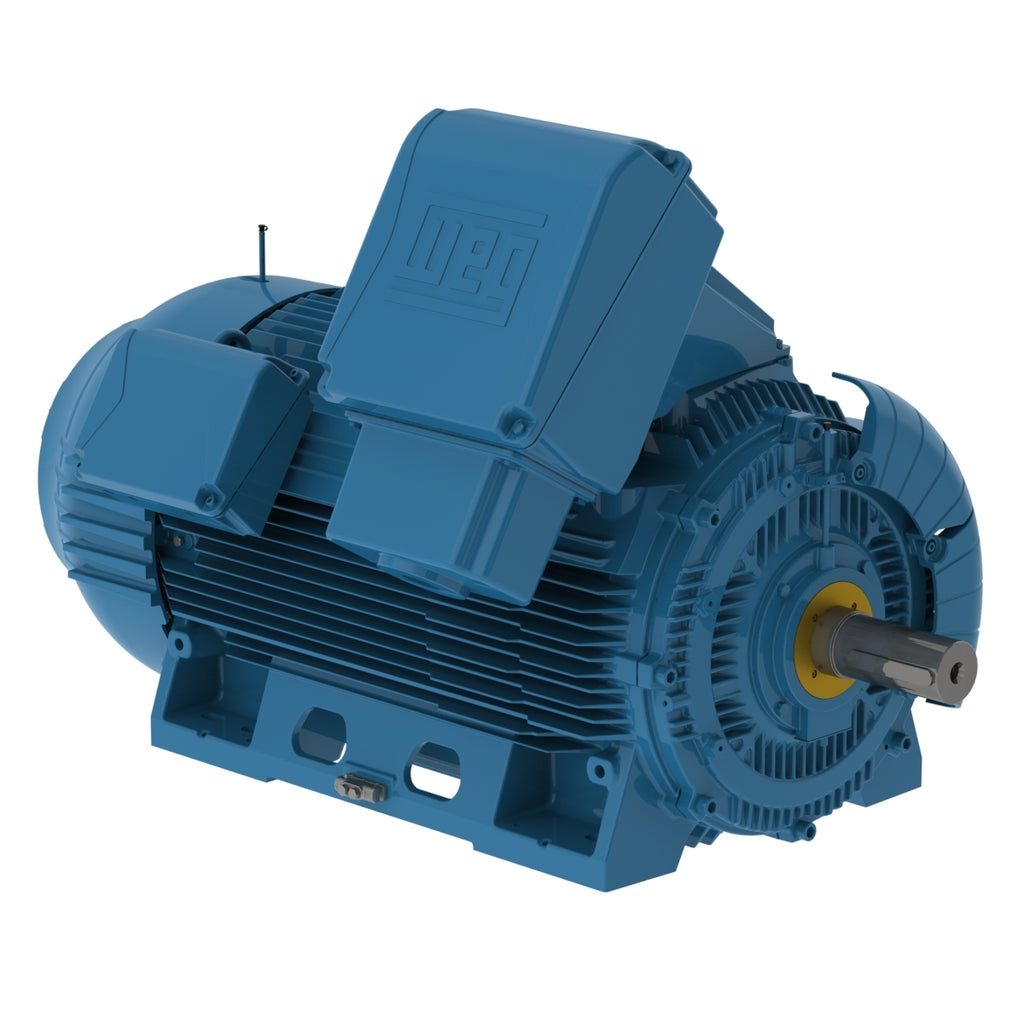

WEG 70018ET3X6806-W50MV W50 700 HP 4P 6806/07 3Ph 2300/4160 V 60 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 70018ET3X6806-W50MV W50 700 HP 4P 6806/07 3Ph 2300/4160 V 60 Hz IC411 - TEFC - Foot-mounted

WEG 70018ET3X6806-W50MV W50 700 HP 4P 6806/07 3Ph 2300/4160 V 60 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 70018ET3X6806-W50MV

GTIN :

MPN :

Dropship

Price:
$105,814.00

Description

WEG W50 motors offer not only excellent performance, but comply with the strictest efficiency and safety criteria in the most severe applications. The compact design provides high performance, while their robust frames ensure low vibration levels. The new mechanical concept not only optimizes characteristics like mass and length, but also offers product versatility and reduced maintenance. Note: This item can be derated to 50HP less than the rated power. Please contact Inside Sales for more information.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 2300/4160 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 700 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC411 - TEFC

Specifications

2300 V 60 Hz 4P 4160 V 60 Hz 4P

Electric Motors
Frame 6806/07
Output 700 HP (515 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1789 rpm
Slip 0.61 %
Rated voltage 2300 V
Rated current 161 A
L. R. Amperes 1047 A
LRC 6.5x(Code G)
No load current 52.4 A
Rated torque 2050 ft.lb
Locked rotor torque 140 %
Breakdown torque 229 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 427 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 82.0 dB(A)
Approx. weight³ 7038 lb
Efficiency
50% 94.5
75% 95.0
100% 95.4
Power factor
50% 0.73
75% 0.81
100% 0.84
Electric Motors
Frame 6806/07
Output 700 HP (515 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1790 rpm
Slip 0.56 %
Rated voltage 4160 V
Rated current 90.3 A
L. R. Amperes 614 A
LRC 6.8x(Code H)
No load current 32.0 A
Rated torque 2050 ft.lb
Locked rotor torque 150 %
Breakdown torque 240 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 427 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 82.0 dB(A)
Approx. weight³ 7038 lb
Efficiency
50% 94.5
75% 95.0
100% 95.4
Power factor
50% 0.71
75% 0.80
100% 0.83
Features
Frame Material Cast Iron
Impregnation Method Vacuum Pressure Impregnation (VPI)
Regreasing System Extended in Stainless Steel, at Drive end and Non-drive end
Space Heater Voltage 110 - 127 V
Main terminal box hole NPT 3"
Terminal Block Without
Accessories Terminal Box With
Shaft Locking Device With
Drain Stainless Steel, Threaded
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 214P (ISO 12944 - C4)
Grounding Lugs Double + Additional in Brass
Fan Cover material Cast Iron
Tropicalized Painting According to IEEE-841 (96h)
Foot flatness (0.005 pol) 0.127 mm
Fan material Cast Iron
Bolt Material Carbon Steel
Winding thermal protection PT100 - 3 wires 2 per phase
Bearing thermal protection PT100 - 3 wires 1 on DE bearing PT100 - 3 wires 1 on NDE bearing
Balancing Method 1/2 Key
Drip Cover Without
Connection Cables Quantity 6
