WEG 60036OT3G449TS-RFW40 W40 NEMA Premium Efficiency 600 HP 2P 447/9TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Roll over image to zoom in Click on image to zoom

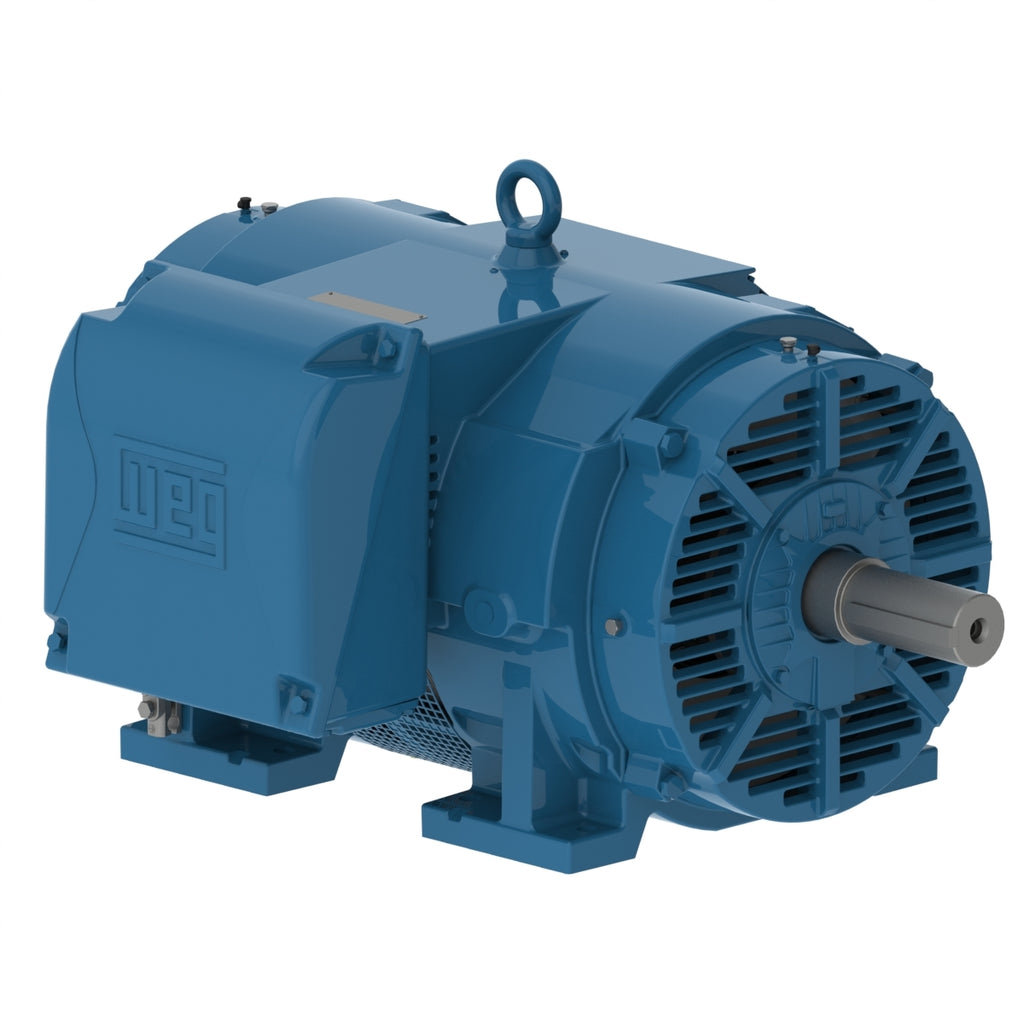

WEG 60036OT3G449TS-RFW40 W40 NEMA Premium Efficiency 600 HP 2P 447/9TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted

WEG 60036OT3G449TS-RFW40 W40 NEMA Premium Efficiency 600 HP 2P 447/9TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted

WEGSKU: 60036OT3G449TS-RFW40

GTIN :

MPN :

Dropship

Price:
$37,943.00

Description

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 600 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC01 - ODP


Electric Motors
Frame 447/9TS
Output 600 HP (440 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3565 rpm
Slip 0.97 %
Rated voltage 460 V
Rated current 645 A
L. R. Amperes 5096 A
LRC 7.9x(Code H)
No load current 165 A
Rated torque 884 ft.lb
Locked rotor torque 190 %
Breakdown torque 270 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 53.6 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 2349 lb
Efficiency
50% 95.8
75% 96.2
100% 96.2
Power factor
50% 0.81
75% 0.88
100% 0.89
Electric Motors
Frame 447/9TS
Output 500 HP (370 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 380 V
Rated current 645 A
L. R. Amperes 4709 A
LRC 7.3x(Code G)
No load current 155 A
Rated torque 886 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 53.6 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 2349 lb
Efficiency
50% 94.5
75% 95.2
100% 95.8
Power factor
50% 0.82
75% 0.90
100% 0.91
Electric Motors
Frame 447/9TS
Output 550 HP (400 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 400 V
Rated current 670 A
L. R. Amperes 4958 A
LRC 7.4x(Code G)
No load current 170 A
Rated torque 972 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 53.6 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 2349 lb
Efficiency
50% 95.0
75% 95.0
100% 95.8
Power factor
50% 0.84
75% 0.89
100% 0.90
Electric Motors
Frame 447/9TS
Output 550 HP (400 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 645 A
L. R. Amperes 5160 A
LRC 8.0x(Code H)
No load current 185 A
Rated torque 972 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 53.6 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 2349 lb
Efficiency
50% 95.0
75% 95.0
100% 95.8
Power factor
50% 0.83
75% 0.88
100% 0.90
Electric Motors
Frame 447/9TS
Output 550 HP (400 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 380 V
Rated current 700 A
L. R. Amperes 4620 A
LRC 6.6x(Code F)
No load current 155 A
Rated torque 974 ft.lb
Locked rotor torque 180 %
Breakdown torque 220 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 53.6 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 2349 lb
Efficiency
50% 95.0
75% 95.0
100% 95.4
Power factor
50% 0.85
75% 0.90
100% 0.91
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Space Heater Voltage 110-127/200-240 V
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermistor - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
Downloads
