Description

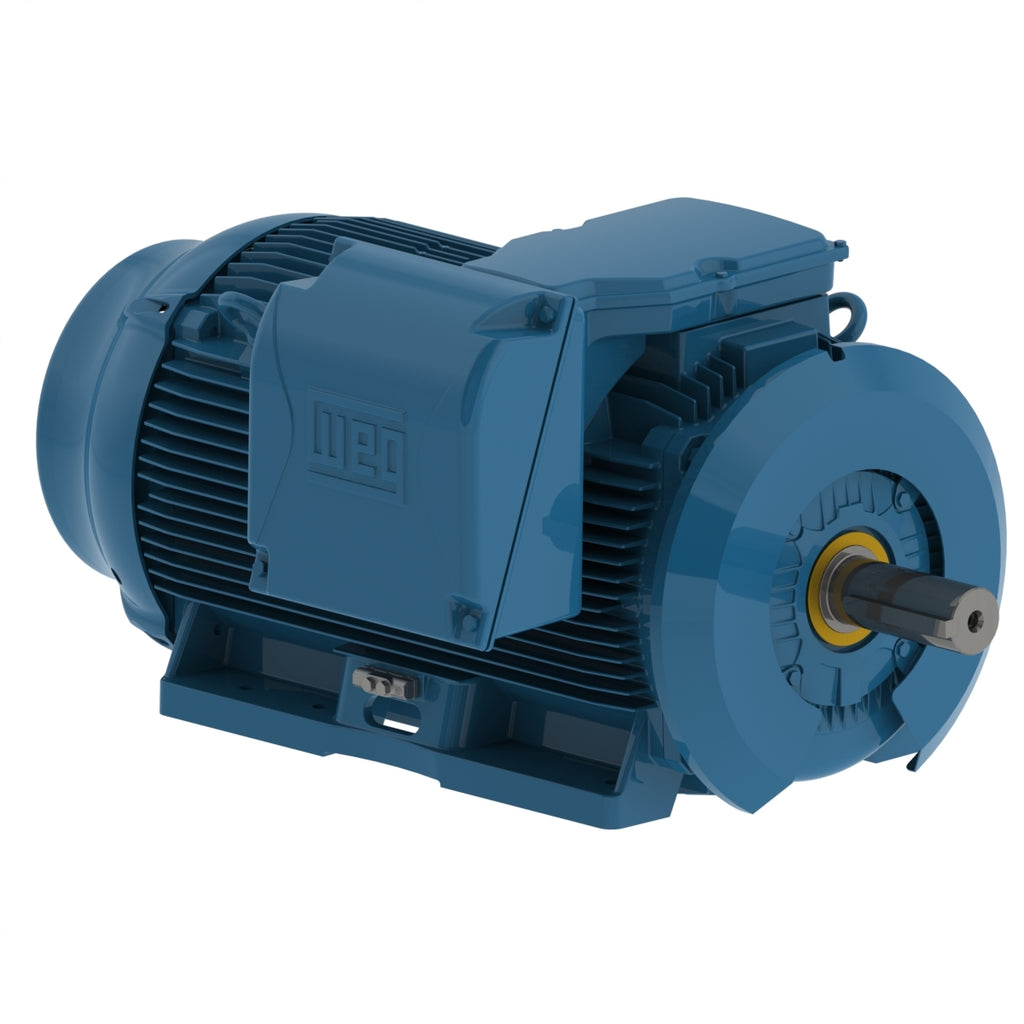

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 460 V |
| Number of poles | 2 |
| Degree of Protection | IP55 |
| Synchronous speed | 3600 rpm |
| Output rating | 600 HP |
| Mounting | F-1 |
| Flange | Without |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
Electric Motors
| Frame | 588/9TS |
|---|---|
| Output | 600 HP (440 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3586 rpm |
| Slip | 0.39 % |
| Rated voltage | 460 V |
| Rated current | 636 A |
| L. R. Amperes | 6042 A |
| LRC | 9.5x(Code K) |
| No load current | 142 A |
| Rated torque | 879 ft.lb |
| Locked rotor torque | 300 % |
| Breakdown torque | 320 % |
| Locked rotor time | 59s (cold) 33s (hot) |
| Moment of inertia (J) | 155 sq.ft.lb |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 89.0 dB(A) |
| Approx. weight³ | 4763 lb |
Efficiency
| 50% | 96.0 |
|---|---|
| 75% | 96.5 |
| 100% | 96.5 |
Power factor
| 50% | 0.84 |
|---|---|
| 75% | 0.89 |
| 100% | 0.90 |
Electric Motors
| Frame | 588/9TS |
|---|---|
| Output | 500 HP (370 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2985 rpm |
| Slip | 0.50 % |
| Rated voltage | 380 V |
| Rated current | 647 A |
| L. R. Amperes | 5435 A |
| LRC | 8.4x(Code J) |
| No load current | 140 A |
| Rated torque | 880 ft.lb |
| Locked rotor torque | 270 % |
| Breakdown torque | 320 % |
| Locked rotor time | 54s (cold) 30s (hot) |
| Moment of inertia (J) | 155 sq.ft.lb |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 83.0 dB(A) |
| Approx. weight³ | 4763 lb |
Efficiency
| 50% | 96.2 |
|---|---|
| 75% | 96.5 |
| 100% | 96.5 |
Power factor
| 50% | 0.84 |
|---|---|
| 75% | 0.89 |
| 100% | 0.90 |
Electric Motors
| Frame | 588/9TS |
|---|---|
| Output | 500 HP (370 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2987 rpm |
| Slip | 0.43 % |
| Rated voltage | 400 V |
| Rated current | 622 A |
| L. R. Amperes | 5847 A |
| LRC | 9.4x(Code K) |
| No load current | 153 A |
| Rated torque | 879 ft.lb |
| Locked rotor torque | 300 % |
| Breakdown torque | 350 % |
| Locked rotor time | 54s (cold) 30s (hot) |
| Moment of inertia (J) | 155 sq.ft.lb |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 83.0 dB(A) |
| Approx. weight³ | 4763 lb |
Efficiency
| 50% | 96.2 |
|---|---|
| 75% | 96.5 |
| 100% | 96.5 |
Power factor
| 50% | 0.82 |
|---|---|
| 75% | 0.88 |
| 100% | 0.89 |
Electric Motors
| Frame | 588/9TS |
|---|---|
| Output | 500 HP (370 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2988 rpm |
| Slip | 0.40 % |
| Rated voltage | 415 V |
| Rated current | 599 A |
| L. R. Amperes | 6290 A |
| LRC | 10.5x(Code L) |
| No load current | 162 A |
| Rated torque | 879 ft.lb |
| Locked rotor torque | 300 % |
| Breakdown torque | 360 % |
| Locked rotor time | 54s (cold) 30s (hot) |
| Moment of inertia (J) | 155 sq.ft.lb |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 83.0 dB(A) |
| Approx. weight³ | 4763 lb |
Efficiency
| 50% | 95.8 |
|---|---|
| 75% | 96.5 |
| 100% | 96.5 |
Power factor
| 50% | 0.80 |
|---|---|
| 75% | 0.87 |
| 100% | 0.89 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Constant Resin Flow |
| Regreasing System | Extended, at Drive end and Non-drive end |
| Space Heater Voltage | 200 - 240 V |
| Main terminal box hole | 2xNPT 4" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 4140 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 - C2) |
| Grounding Lugs | Double |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | Without |
| Fan material | Aluminum |
| Bearing cap | Yes- Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 12 |
