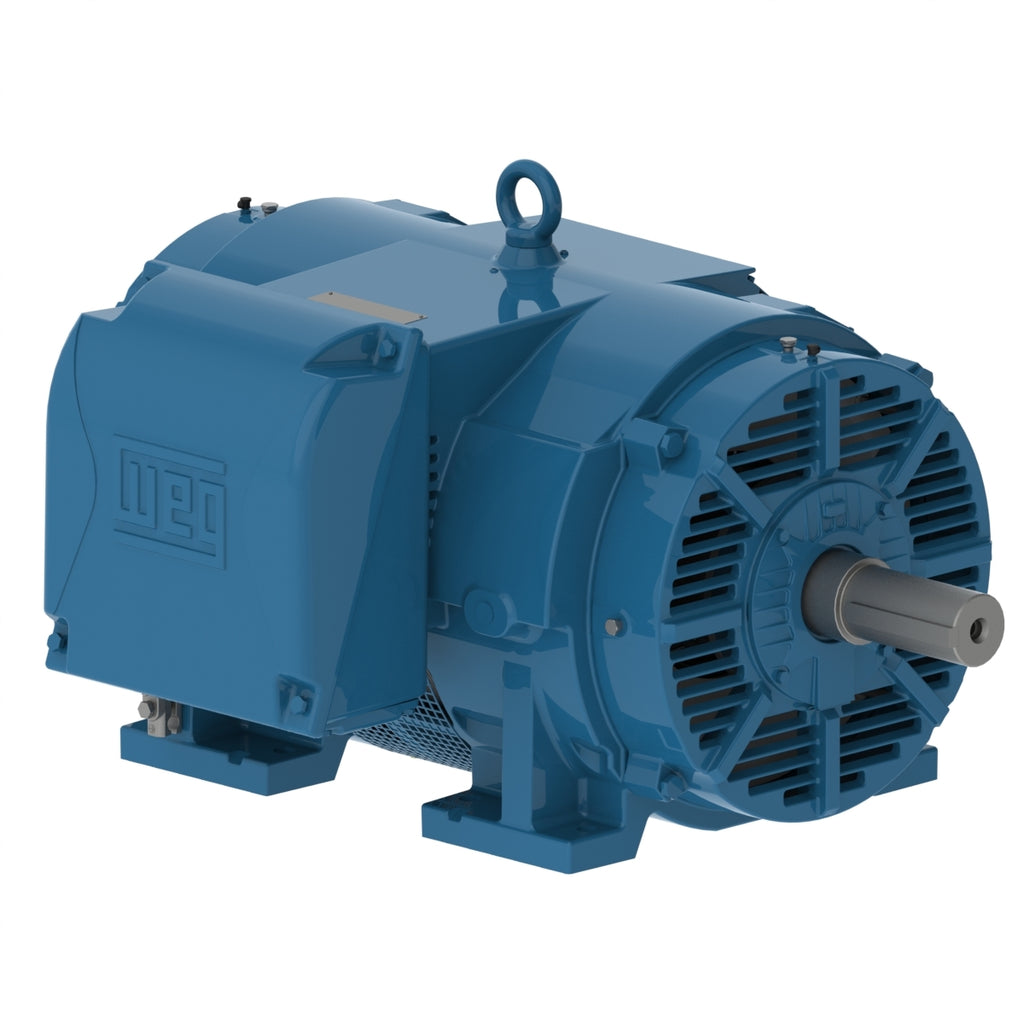

WEG 55036OT3G447/9TS-W40 W40 NEMA Premium Efficiency 550 HP 2P 447/9TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 55036OT3G447/9TS-W40 W40 NEMA Premium Efficiency 550 HP 2P 447/9TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted

WEG 55036OT3G447/9TS-W40 W40 NEMA Premium Efficiency 550 HP 2P 447/9TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted

WEGSKU: 55036OT3G447/9TS-W40

GTIN :

MPN :

Dropship

Price:
$32,629.00

Description

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 550 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC01 - ODP


Electric Motors
Frame 447/9TS
Output 550 HP (400 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3565 rpm
Slip 0.97 %
Rated voltage 460 V
Rated current 580 A
L. R. Amperes 4176 A
LRC 7.2x(Code G)
No load current 122 A
Rated torque 810 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 50.3 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 2279 lb
Efficiency
50% 95.8
75% 96.2
100% 96.2
Power factor
50% 0.84
75% 0.89
100% 0.90
Electric Motors
Frame 447/9TS
Output 450 HP (330 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 380 V
Rated current 582 A
L. R. Amperes 3899 A
LRC 6.7x(Code G)
No load current 120 A
Rated torque 797 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 50.3 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 2279 lb
Efficiency
50% 94.5
75% 95.1
100% 95.8
Power factor
50% 0.82
75% 0.89
100% 0.90
Electric Motors
Frame 447/9TS
Output 500 HP (370 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 400 V
Rated current 619 A
L. R. Amperes 4147 A
LRC 6.7x(Code G)
No load current 135 A
Rated torque 886 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 50.3 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 2279 lb
Efficiency
50% 95.0
75% 95.0
100% 95.8
Power factor
50% 0.83
75% 0.88
100% 0.90
Electric Motors
Frame 447/9TS
Output 500 HP (370 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 415 V
Rated current 604 A
L. R. Amperes 4470 A
LRC 7.4x(Code H)
No load current 145 A
Rated torque 886 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 50.3 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 2279 lb
Efficiency
50% 95.0
75% 95.0
100% 95.8
Power factor
50% 0.82
75% 0.88
100% 0.89
Electric Motors
Frame 447/9TS
Output 500 HP (370 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2960 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 655 A
L. R. Amperes 3930 A
LRC 6.0x(Code F)
No load current 120 A
Rated torque 887 ft.lb
Locked rotor torque 180 %
Breakdown torque 220 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 50.3 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
Approx. weight³ 2279 lb
Efficiency
50% 95.0
75% 95.0
100% 95.4
Power factor
50% 0.85
75% 0.89
100% 0.90
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermistor - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
