Description

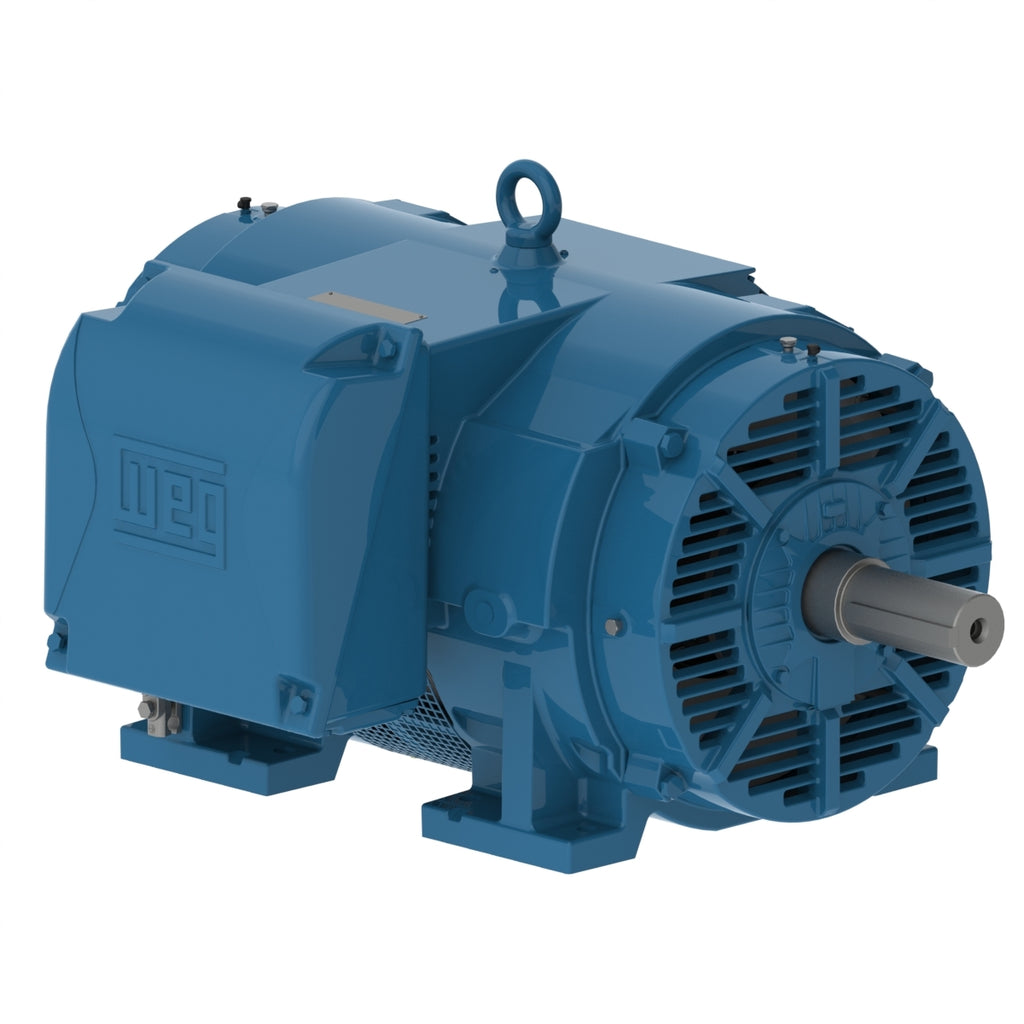

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 460 V |
| Number of poles | 2 |
| Degree of Protection | IP23 |
| Synchronous speed | 3600 rpm |
| Output rating | 450 HP |
| Mounting | F-1 |
| Flange | Without |
| Terminal box¹ | Left position |
| Enclosure | IC01 - ODP |
Electric Motors
| Frame | 447/9TS |
|---|---|
| Output | 450 HP (330 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3565 rpm |
| Slip | 0.97 % |
| Rated voltage | 460 V |
| Rated current | 478 A |
| L. R. Amperes | 3250 A |
| LRC | 6.8x(Code G) |
| No load current | 105 A |
| Rated torque | 663 ft.lb |
| Locked rotor torque | 180 % |
| Breakdown torque | 250 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 43.6 sq.ft.lb |
| Design | A |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 87.0 dB(A) |
| Approx. weight³ | 2122 lb |
Efficiency
| 50% | 95.8 |
|---|---|
| 75% | 96.2 |
| 100% | 96.2 |
Power factor
| 50% | 0.84 |
|---|---|
| 75% | 0.89 |
| 100% | 0.90 |
Electric Motors
| Frame | 447/9TS |
|---|---|
| Output | 400 HP (300 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2960 rpm |
| Slip | 1.33 % |
| Rated voltage | 380 V |
| Rated current | 529 A |
| L. R. Amperes | 3068 A |
| LRC | 5.8x(Code F) |
| No load current | 95.0 A |
| Rated torque | 710 ft.lb |
| Locked rotor torque | 160 % |
| Breakdown torque | 210 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 43.6 sq.ft.lb |
| Design | A |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 81.0 dB(A) |
| Approx. weight³ | 2122 lb |
Efficiency
| 50% | 95.0 |
|---|---|
| 75% | 95.4 |
| 100% | 95.8 |
Power factor
| 50% | 0.85 |
|---|---|
| 75% | 0.89 |
| 100% | 0.90 |
Electric Motors
| Frame | 447/9TS |
|---|---|
| Output | 400 HP (300 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2963 rpm |
| Slip | 1.23 % |
| Rated voltage | 400 V |
| Rated current | 502 A |
| L. R. Amperes | 3263 A |
| LRC | 6.5x(Code G) |
| No load current | 105 A |
| Rated torque | 709 ft.lb |
| Locked rotor torque | 180 % |
| Breakdown torque | 229 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 43.6 sq.ft.lb |
| Design | A |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 81.0 dB(A) |
| Approx. weight³ | 2122 lb |
Efficiency
| 50% | 95.0 |
|---|---|
| 75% | 95.4 |
| 100% | 95.8 |
Power factor
| 50% | 0.84 |
|---|---|
| 75% | 0.89 |
| 100% | 0.90 |
Electric Motors
| Frame | 447/9TS |
|---|---|
| Output | 400 HP (300 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2970 rpm |
| Slip | 1.00 % |
| Rated voltage | 415 V |
| Rated current | 490 A |
| L. R. Amperes | 3430 A |
| LRC | 7.0x(Code G) |
| No load current | 115 A |
| Rated torque | 707 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 240 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 43.6 sq.ft.lb |
| Design | A |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 81.0 dB(A) |
| Approx. weight³ | 2122 lb |
Efficiency
| 50% | 95.0 |
|---|---|
| 75% | 95.4 |
| 100% | 95.8 |
Power factor
| 50% | 0.82 |
|---|---|
| 75% | 0.88 |
| 100% | 0.89 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Constant Resin Flow |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | 2xNPT 3" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Shaft Material | SAE 4140 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 - C2) |
| Grounding Lugs | Double |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Winding thermal protection | Thermistor - 2 wires 1 per phase 155°C |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 12 |
