WEG 40018OT3G447/9TS-W40 W40 NEMA Premium Efficiency 400 HP 4P 447/9TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Roll over image to zoom in Click on image to zoom

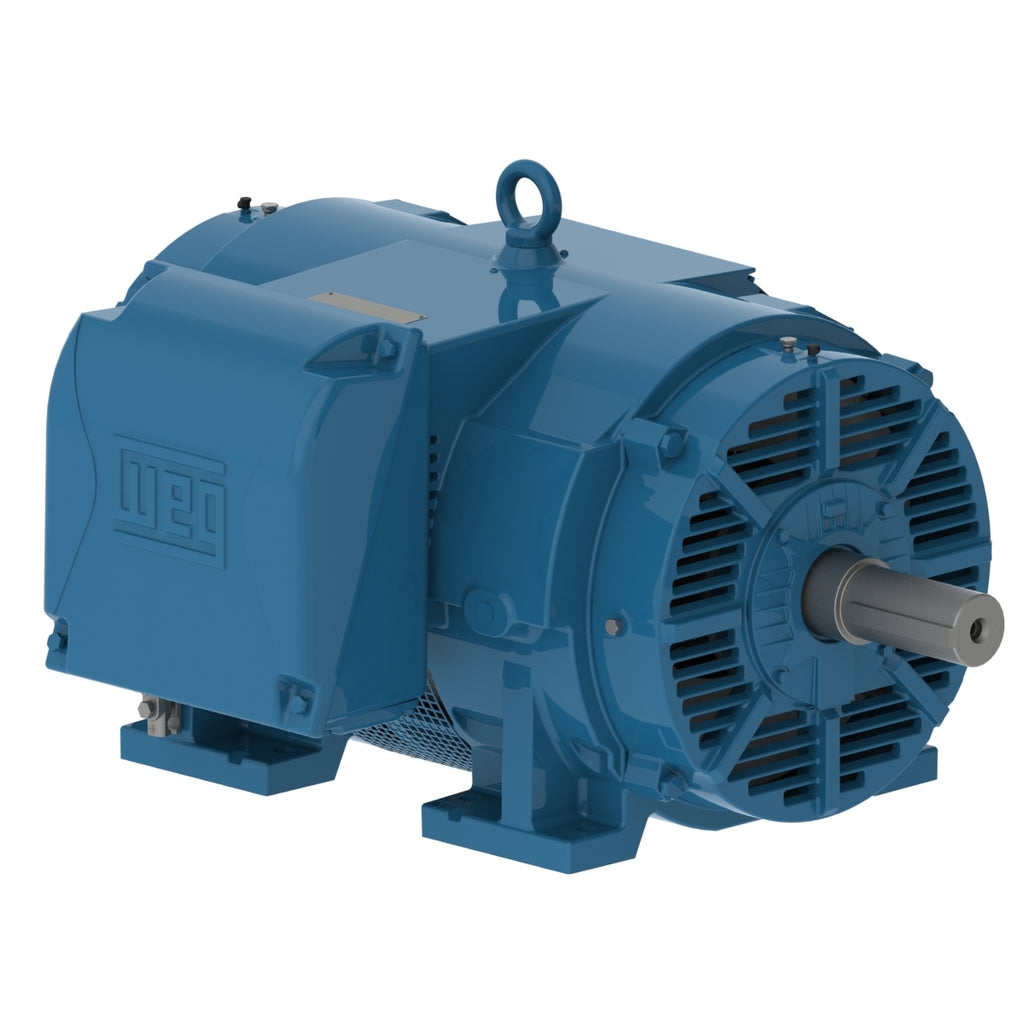

WEG 40018OT3G447/9TS-W40 W40 NEMA Premium Efficiency 400 HP 4P 447/9TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted

WEG 40018OT3G447/9TS-W40 W40 NEMA Premium Efficiency 400 HP 4P 447/9TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted

WEGSKU: 40018OT3G447/9TS-W40

Dropship

Get it by Mon, Dec 01 - Sat, Dec 06

Price:
$21,799.48

Description

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 4
Degree of Protection IP23
Synchronous speed 1800 rpm
Output rating 400 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC01 - ODP


Electric Motors
Frame 447/9TS
Output 400 HP (300 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 460 V
Rated current 452 A
L. R. Amperes 3074 A
LRC 6.8x(Code G)
No load current 140 A
Rated torque 1180 ft.lb
Locked rotor torque 229 %
Breakdown torque 229 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 77.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2292 lb
Efficiency
50% 95.8
75% 95.8
100% 95.8
Power factor
50% 0.78
75% 0.85
100% 0.87
Electric Motors
Frame 447/9TS
Output 300 HP (220 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 400 A
L. R. Amperes 2800 A
LRC 7.0x(Code G)
No load current 138 A
Rated torque 1060 ft.lb
Locked rotor torque 229 %
Breakdown torque 250 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 77.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2292 lb
Efficiency
50% 94.5
75% 94.9
100% 96.0
Power factor
50% 0.74
75% 0.84
100% 0.87
Electric Motors
Frame 447/9TS
Output 300 HP (220 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 385 A
L. R. Amperes 3003 A
LRC 7.8x(Code H)
No load current 149 A
Rated torque 1060 ft.lb
Locked rotor torque 270 %
Breakdown torque 280 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 77.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2292 lb
Efficiency
50% 94.4
75% 95.1
100% 96.0
Power factor
50% 0.71
75% 0.82
100% 0.86
Electric Motors
Frame 447/9TS
Output 300 HP (220 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 375 A
L. R. Amperes 3375 A
LRC 9.0x(Code K)
No load current 159 A
Rated torque 1060 ft.lb
Locked rotor torque 290 %
Breakdown torque 300 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 77.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2292 lb
Efficiency
50% 94.4
75% 95.1
100% 96.0
Power factor
50% 0.68
75% 0.81
100% 0.85
Electric Motors
Frame 447/9TS
Output 350 HP (260 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 479 A
L. R. Amperes 2874 A
LRC 6.0x(Code F)
No load current 138 A
Rated torque 1240 ft.lb
Locked rotor torque 200 %
Breakdown torque 210 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 77.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2292 lb
Efficiency
50% 94.8
75% 94.8
100% 94.8
Power factor
50% 0.79
75% 0.85
100% 0.87
Electric Motors
Frame 447/9TS
Output 350 HP (260 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 457 A
L. R. Amperes 3062 A
LRC 6.7x(Code G)
No load current 149 A
Rated torque 1240 ft.lb
Locked rotor torque 229 %
Breakdown torque 240 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 77.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2292 lb
Efficiency
50% 95.0
75% 95.0
100% 95.4
Power factor
50% 0.76
75% 0.84
100% 0.86
Electric Motors
Frame 447/9TS
Output 350 HP (260 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 441 A
L. R. Amperes 3440 A
LRC 7.8x(Code H)
No load current 159 A
Rated torque 1240 ft.lb
Locked rotor torque 250 %
Breakdown torque 260 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 77.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2292 lb
Efficiency
50% 95.0
75% 95.0
100% 95.4
Power factor
50% 0.74
75% 0.83
100% 0.86
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermistor - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
