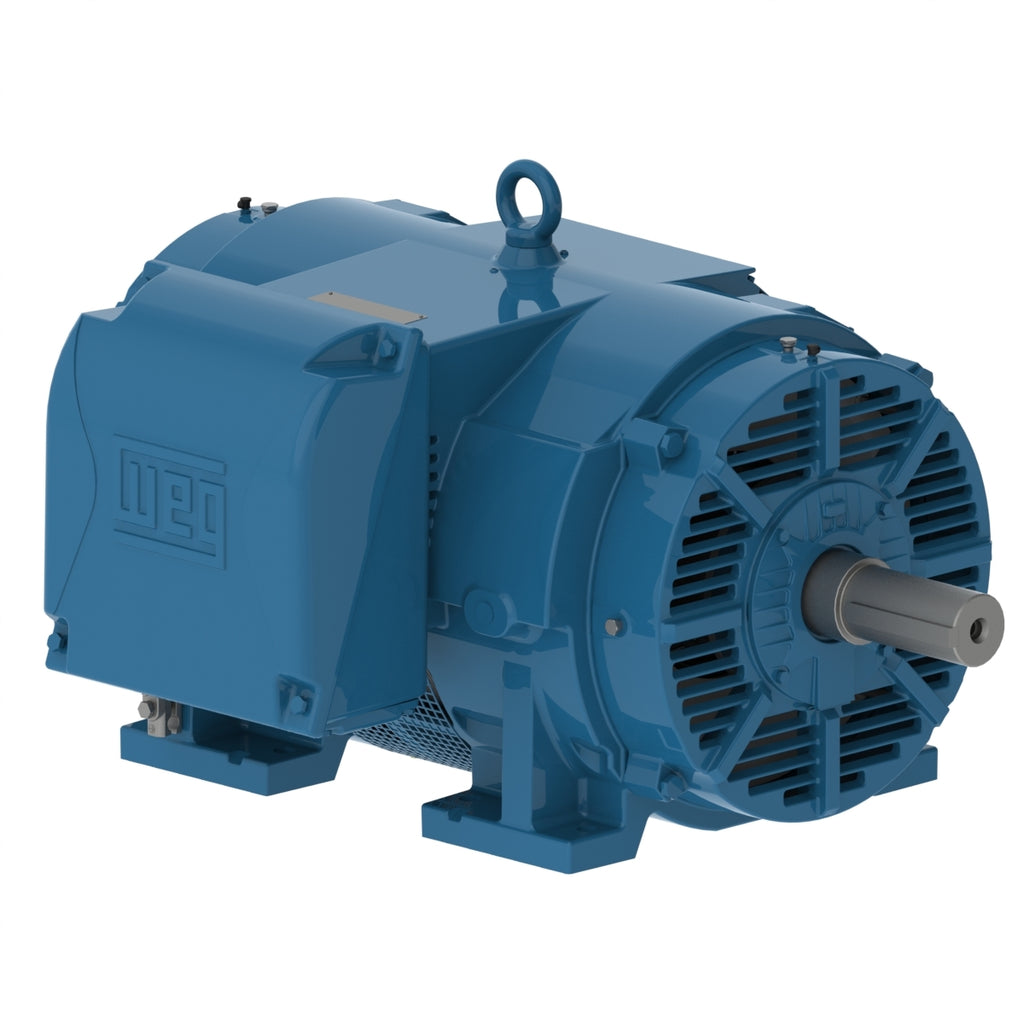

WEG 35018OT3G447/9TS-W40 W40 NEMA Premium Efficiency 350 HP 4P 447/9TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 35018OT3G447/9TS-W40 W40 NEMA Premium Efficiency 350 HP 4P 447/9TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted

WEG 35018OT3G447/9TS-W40 W40 NEMA Premium Efficiency 350 HP 4P 447/9TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted

WEGSKU: 35018OT3G447/9TS-W40

GTIN :

MPN :

Dropship

Price:
$25,174.00

Description

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 4
Degree of Protection IP23
Synchronous speed 1800 rpm
Output rating 350 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC01 - ODP


Electric Motors
Frame 447/9TS
Output 350 HP (260 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 460 V
Rated current 396 A
L. R. Amperes 2614 A
LRC 6.6x(Code G)
No load current 125 A
Rated torque 1030 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 66.1 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2080 lb
Efficiency
50% 95.8
75% 95.8
100% 95.8
Power factor
50% 0.76
75% 0.83
100% 0.86
Electric Motors
Frame 447/9TS
Output 250 HP (185 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 337 A
L. R. Amperes 2460 A
LRC 7.3x(Code H)
No load current 124 A
Rated torque 887 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 66.1 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2080 lb
Efficiency
50% 94.7
75% 95.0
100% 96.0
Power factor
50% 0.74
75% 0.84
100% 0.87
Electric Motors
Frame 447/9TS
Output 250 HP (185 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 323 A
L. R. Amperes 2584 A
LRC 8.0x(Code J)
No load current 135 A
Rated torque 887 ft.lb
Locked rotor torque 250 %
Breakdown torque 290 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 66.1 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2080 lb
Efficiency
50% 94.3
75% 95.1
100% 96.0
Power factor
50% 0.71
75% 0.82
100% 0.86
Electric Motors
Frame 447/9TS
Output 250 HP (185 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 315 A
L. R. Amperes 2867 A
LRC 9.1x(Code K)
No load current 144 A
Rated torque 887 ft.lb
Locked rotor torque 280 %
Breakdown torque 320 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 66.1 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2080 lb
Efficiency
50% 94.3
75% 95.1
100% 96.0
Power factor
50% 0.67
75% 0.80
100% 0.85
Electric Motors
Frame 447/9TS
Output 300 HP (220 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 403 A
L. R. Amperes 2458 A
LRC 6.1x(Code F)
No load current 124 A
Rated torque 1060 ft.lb
Locked rotor torque 180 %
Breakdown torque 210 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 66.1 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2080 lb
Efficiency
50% 95.0
75% 95.0
100% 95.4
Power factor
50% 0.81
75% 0.85
100% 0.87
Electric Motors
Frame 447/9TS
Output 300 HP (220 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 387 A
L. R. Amperes 2593 A
LRC 6.7x(Code G)
No load current 135 A
Rated torque 1060 ft.lb
Locked rotor torque 210 %
Breakdown torque 240 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 66.1 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2080 lb
Efficiency
50% 95.0
75% 95.0
100% 95.4
Power factor
50% 0.77
75% 0.85
100% 0.86
Electric Motors
Frame 447/9TS
Output 300 HP (220 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 377 A
L. R. Amperes 2865 A
LRC 7.6x(Code H)
No load current 144 A
Rated torque 1060 ft.lb
Locked rotor torque 229 %
Breakdown torque 270 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 66.1 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2080 lb
Efficiency
50% 95.0
75% 95.0
100% 95.4
Power factor
50% 0.74
75% 0.83
100% 0.85
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermistor - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
