Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 460//380-415 V |
| Number of poles | 2 |
| Degree of Protection | IP55 |
| Synchronous speed | 3600 rpm |
| Output rating | 400 HP |
| Mounting | B3L(E) |
| Flange | Without |
| Terminal box¹ | Right position |
| Enclosure | IC411 - TEFC |

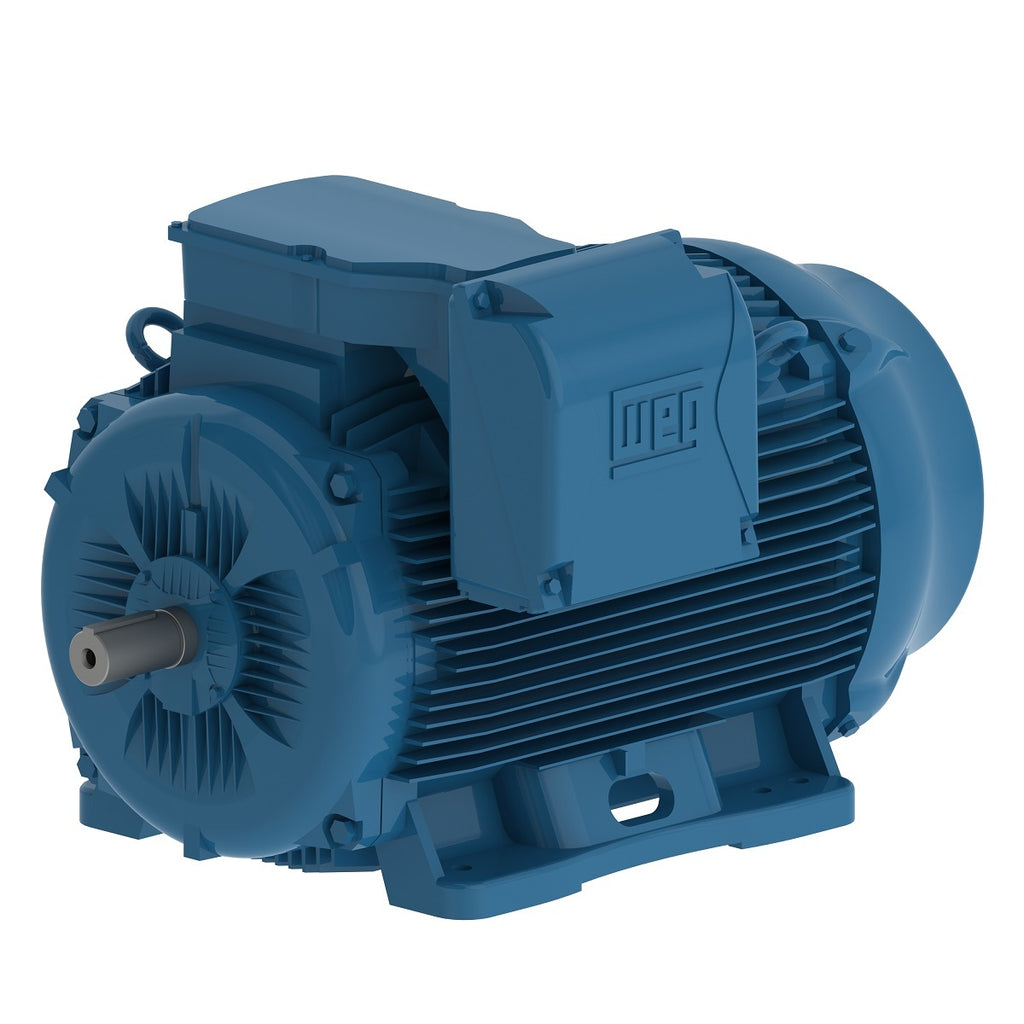

Electric Motors
| Frame | 355M/L |
|---|---|
| Output | 400 HP (300 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2984 rpm |
| Slip | 0.53 % |
| Rated voltage | 380 V |
| Rated current | 523 A |
| L. R. Amperes | 4393 A |
| LRC | 8.4 |
| No load current | 95.0 A |
| Rated torque | 704 ft.lb |
| Locked rotor torque | 229 % |
| Breakdown torque | 245 % |
| Locked rotor time | 41s (cold) 23s (hot) |
| Moment of inertia (J) | 143 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 80.0 dB(A) |
| Approx. weight³ | 4053 lb |
Efficiency
| 50% | 94.2 |
|---|---|
| 75% | 95.2 |
| 100% | 95.7 |
Power factor
| 50% | 0.87 |
|---|---|
| 75% | 0.91 |
| 100% | 0.91 |
Electric Motors
| Frame | 355M/L |
|---|---|
| Output | 400 HP (300 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2988 rpm |
| Slip | 0.40 % |
| Rated voltage | 415 V |
| Rated current | 479 A |
| L. R. Amperes | 4407 A |
| LRC | 9.2 |
| No load current | 105 A |
| Rated torque | 703 ft.lb |
| Locked rotor torque | 265 % |
| Breakdown torque | 300 % |
| Locked rotor time | 41s (cold) 23s (hot) |
| Moment of inertia (J) | 143 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 80.0 dB(A) |
| Approx. weight³ | 4053 lb |
Efficiency
| 50% | 94.9 |
|---|---|
| 75% | 95.6 |
| 100% | 95.8 |
Power factor
| 50% | 0.83 |
|---|---|
| 75% | 0.90 |
| 100% | 0.91 |
Electric Motors
| Frame | 355M/L |
|---|---|
| Output | 400 HP (300 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3588 rpm |
| Slip | 0.33 % |
| Rated voltage | 460 V |
| Rated current | 432 A |
| L. R. Amperes | 4277 A |
| LRC | 9.9 |
| No load current | 97.2 A |
| Rated torque | 585 ft.lb |
| Locked rotor torque | 290 % |
| Breakdown torque | 330 % |
| Locked rotor time | 81s (cold) 45s (hot) |
| Moment of inertia (J) | 143 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 84.0 dB(A) |
| Approx. weight³ | 4053 lb |
Efficiency
| 50% | 95.3 |
|---|---|
| 75% | 96.1 |
| 100% | 95.8 |
Power factor
| 50% | 0.86 |
|---|---|
| 75% | 0.90 |
| 100% | 0.91 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Constant Resin Flow |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | 2xM63x1,5 |
| Terminal Block | BMC - 6 pins |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 4140 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 - C2) |
| Grounding Lugs | Double |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 6 |
