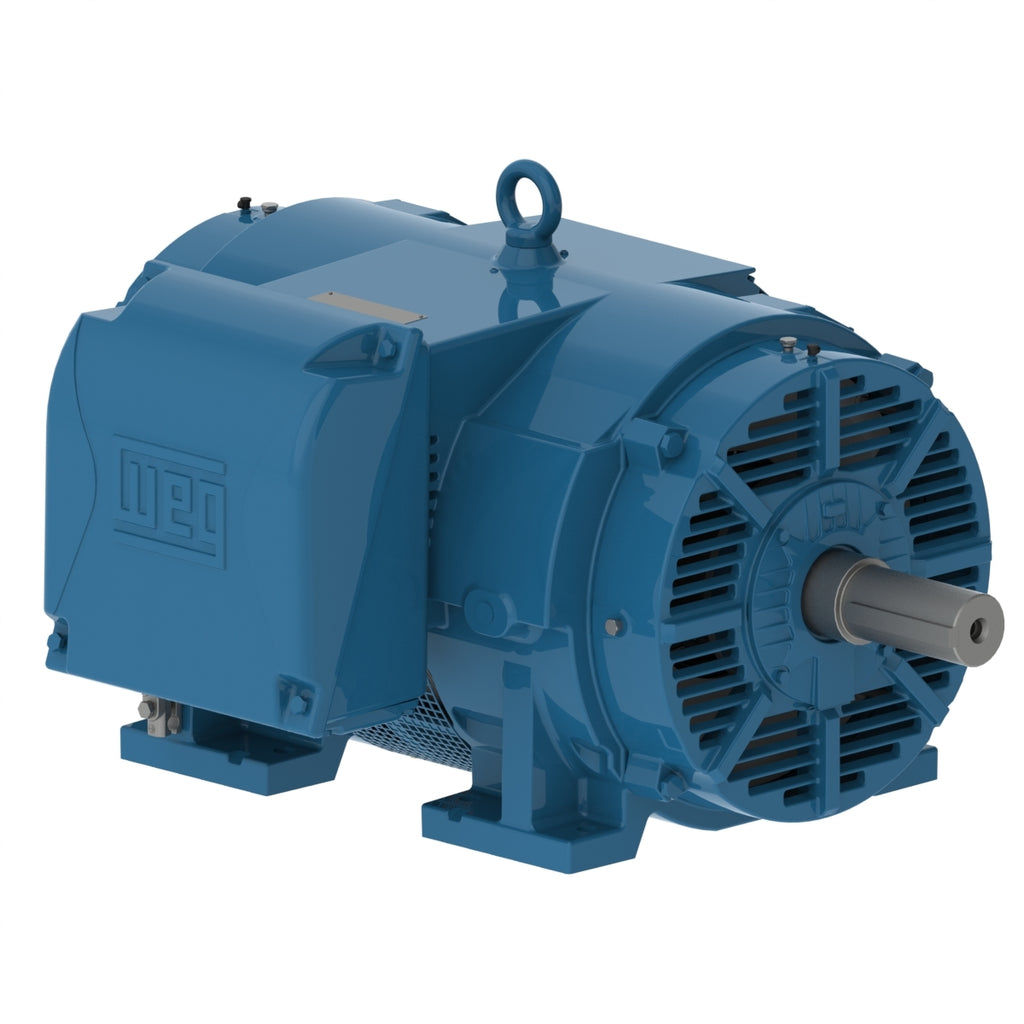

WEG 30012OT3G447/9T-W40 W40 NEMA Premium Efficiency 300 HP 6P 447/9T 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 30012OT3G447/9T-W40 W40 NEMA Premium Efficiency 300 HP 6P 447/9T 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted

WEG 30012OT3G447/9T-W40 W40 NEMA Premium Efficiency 300 HP 6P 447/9T 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted

WEGSKU: 30012OT3G447/9T-W40

GTIN :

MPN :

Dropship

Price:
$29,853.00

Description

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 6
Degree of Protection IP23
Synchronous speed 1200 rpm
Output rating 300 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC01 - ODP


Electric Motors
Frame 447/9T
Output 300 HP (220 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1190 rpm
Slip 0.83 %
Rated voltage 460 V
Rated current 365 A
L. R. Amperes 2446 A
LRC 6.7x(Code H)
No load current 174 A
Rated torque 1320 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 131 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 2340 lb
Efficiency
50% 95.4
75% 95.8
100% 95.8
Power factor
50% 0.62
75% 0.73
100% 0.79
Electric Motors
Frame 447/9T
Output 220 HP (160 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 380 V
Rated current 326 A
L. R. Amperes 2380 A
LRC 7.3x(Code J)
No load current 171 A
Rated torque 1170 ft.lb
Locked rotor torque 260 %
Breakdown torque 310 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 131 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 2340 lb
Efficiency
50% 94.9
75% 95.1
100% 95.6
Power factor
50% 0.58
75% 0.71
100% 0.78
Electric Motors
Frame 447/9T
Output 220 HP (160 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 400 V
Rated current 326 A
L. R. Amperes 2510 A
LRC 7.7x(Code J)
No load current 193 A
Rated torque 1170 ft.lb
Locked rotor torque 290 %
Breakdown torque 360 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 131 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 2340 lb
Efficiency
50% 94.9
75% 95.3
100% 95.6
Power factor
50% 0.52
75% 0.66
100% 0.74
Electric Motors
Frame 447/9T
Output 220 HP (160 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 328 A
L. R. Amperes 2657 A
LRC 8.1x(Code K)
No load current 211 A
Rated torque 1170 ft.lb
Locked rotor torque 320 %
Breakdown torque 390 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 131 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 2340 lb
Efficiency
50% 94.7
75% 95.3
100% 95.6
Power factor
50% 0.48
75% 0.62
100% 0.71
Electric Motors
Frame 447/9T
Output 250 HP (185 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 380 V
Rated current 372 A
L. R. Amperes 2381 A
LRC 6.4x(Code G)
No load current 171 A
Rated torque 1330 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 131 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 2340 lb
Efficiency
50% 95.0
75% 95.0
100% 94.5
Power factor
50% 0.63
75% 0.75
100% 0.80
Electric Motors
Frame 447/9T
Output 250 HP (185 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 400 V
Rated current 365 A
L. R. Amperes 2482 A
LRC 6.8x(Code H)
No load current 193 A
Rated torque 1330 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 131 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 2340 lb
Efficiency
50% 95.0
75% 95.4
100% 95.0
Power factor
50% 0.58
75% 0.70
100% 0.77
Electric Motors
Frame 447/9T
Output 250 HP (185 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 365 A
L. R. Amperes 2628 A
LRC 7.2x(Code J)
No load current 211 A
Rated torque 1330 ft.lb
Locked rotor torque 280 %
Breakdown torque 330 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 131 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 2340 lb
Efficiency
50% 95.0
75% 95.4
100% 95.4
Power factor
50% 0.53
75% 0.67
100% 0.74
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermistor - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
