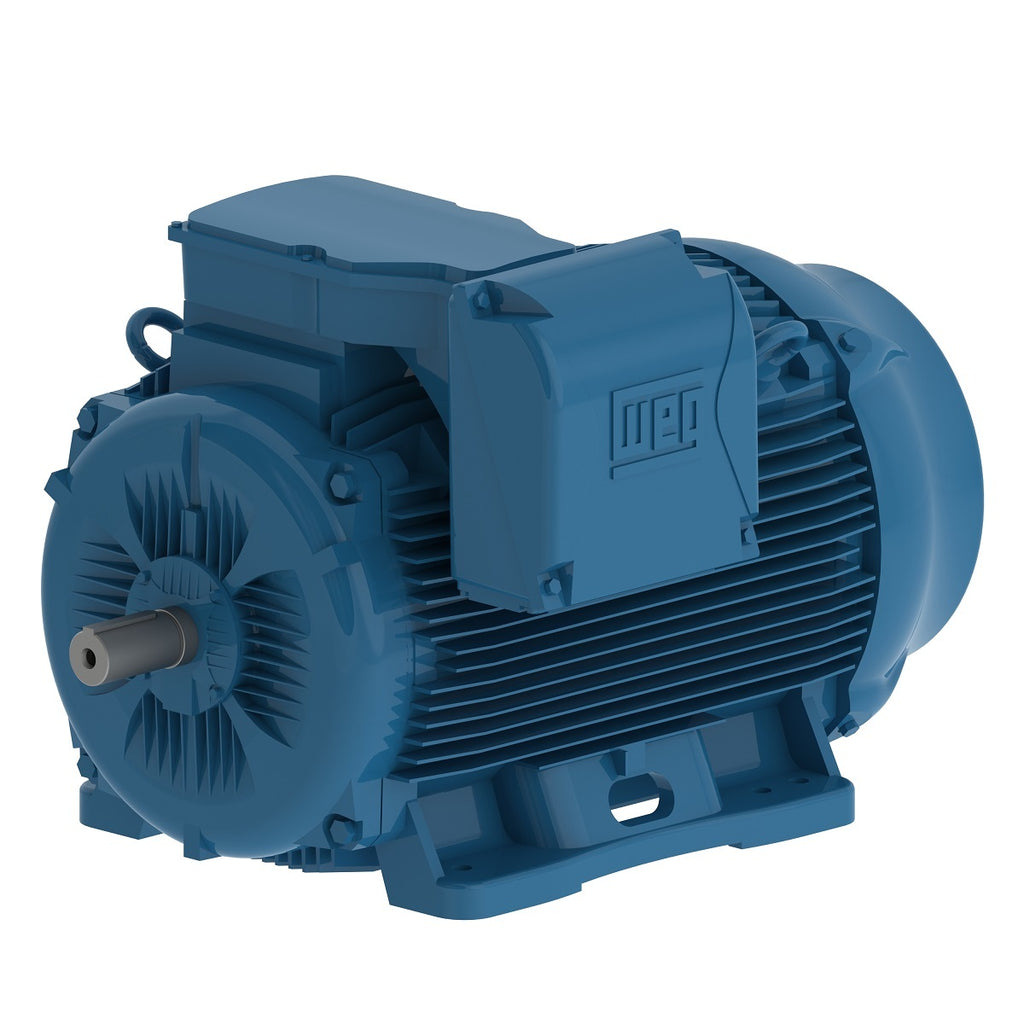

WEG 30012EP3Y355M/L-W22 W22 Tru-Metric IE2 400 HP 6P 355M/L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Roll over image to zoom in Click on image to zoom
WEG 30012EP3Y355M/L-W22 W22 Tru-Metric IE2 400 HP 6P 355M/L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEG 30012EP3Y355M/L-W22 W22 Tru-Metric IE2 400 HP 6P 355M/L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEGSKU: 30012EP3Y355M/L-W22

GTIN :

MPN :

Dropship

Price:
$56,168.00

Description

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 400 HP
Mounting B3L(E)
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 355M/L
Output 400 HP (300 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1190 rpm
Slip 0.83 %
Rated voltage 460 V
Rated current 513 A
L. R. Amperes 3796 A
LRC 7.4
No load current 250 A
Rated torque 1770 ft.lb
Locked rotor torque 250 %
Breakdown torque 250 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 340 sq.ft.lb
Design N
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 4662 lb
Efficiency
50% 95.0
75% 95.4
100% 95.4
Power factor
50% 0.57
75% 0.70
100% 0.77
Electric Motors
Frame 355M/L
Output 400 HP (300 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 380 V
Rated current 597 A
L. R. Amperes 3701 A
LRC 6.2
No load current 240 A
Rated torque 2120 ft.lb
Locked rotor torque 200 %
Breakdown torque 200 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 340 sq.ft.lb
Design N
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 4662 lb
Efficiency
50% 95.7
75% 95.7
100% 95.5
Power factor
50% 0.65
75% 0.75
100% 0.80
Electric Motors
Frame 355M/L
Output 400 HP (300 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 400 V
Rated current 573 A
L. R. Amperes 3553 A
LRC 6.2
No load current 260 A
Rated torque 2120 ft.lb
Locked rotor torque 220 %
Breakdown torque 220 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 340 sq.ft.lb
Design N
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 4662 lb
Efficiency
50% 95.4
75% 95.7
100% 95.6
Power factor
50% 0.63
75% 0.74
100% 0.79
Electric Motors
Frame 355M/L
Output 400 HP (300 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 995 rpm
Slip 0.50 %
Rated voltage 415 V
Rated current 567 A
L. R. Amperes 3515 A
LRC 6.2
No load current 280 A
Rated torque 2110 ft.lb
Locked rotor torque 240 %
Breakdown torque 240 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 340 sq.ft.lb
Design N
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 4662 lb
Efficiency
50% 95.2
75% 95.6
100% 95.6
Power factor
50% 0.60
75% 0.70
100% 0.77
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xM63x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Aluminum
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
