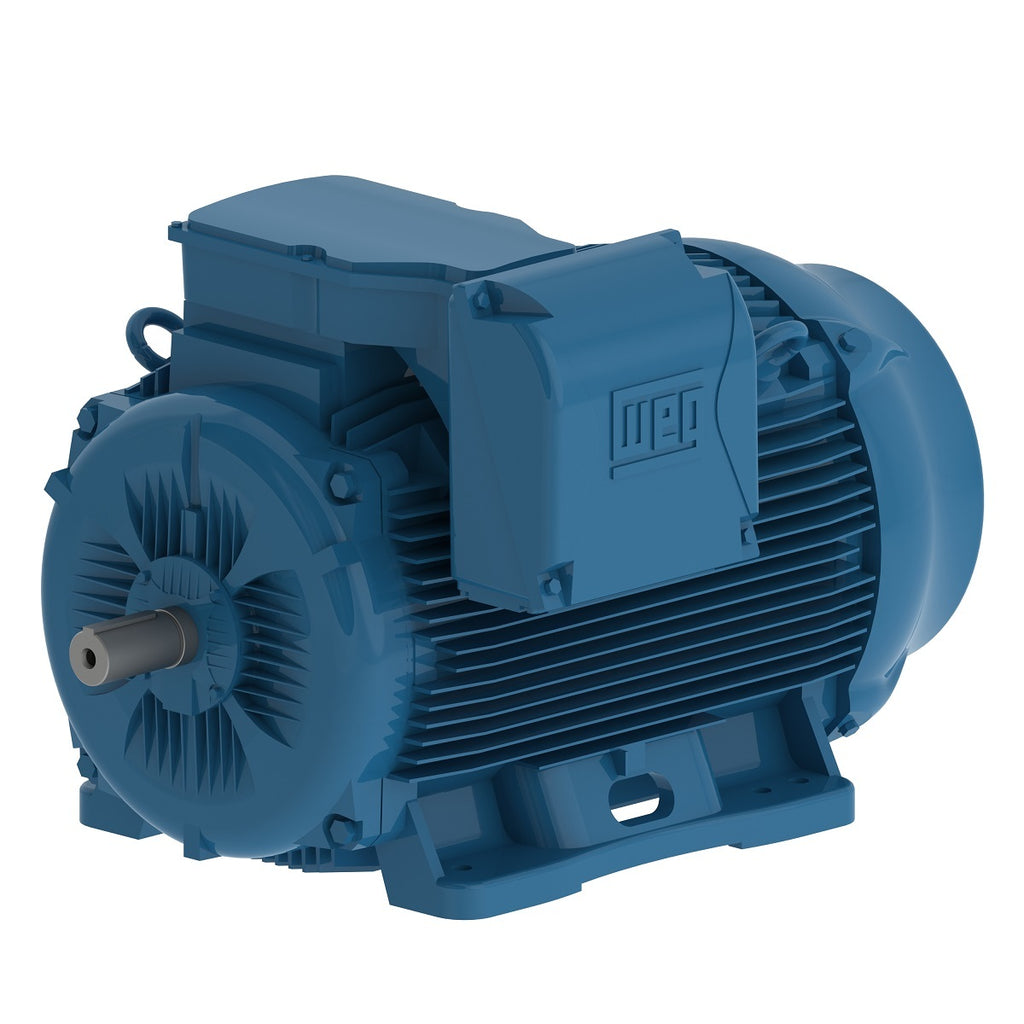

WEG 26012ET3Y355M/L-W22 W22 Tru-Metric IE3 350 HP 6P 355M/L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Roll over image to zoom in Click on image to zoom
WEG 26012ET3Y355M/L-W22 W22 Tru-Metric IE3 350 HP 6P 355M/L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEG 26012ET3Y355M/L-W22 W22 Tru-Metric IE3 350 HP 6P 355M/L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEGSKU: 26012ET3Y355M/L-W22

GTIN :

MPN :

Dropship

Price:
$53,001.00

Description

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 350 HP
Mounting B3L(E)
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 355M/L
Output 350 HP (260 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1193 rpm
Slip 0.58 %
Rated voltage 460 V
Rated current 437 A
L. R. Amperes 2316 A
LRC 5.3
No load current 165 A
Rated torque 1540 ft.lb
Locked rotor torque 200 %
Breakdown torque 220 %
Locked rotor time 131s (cold) 73s (hot)
Moment of inertia (J) 356 sq.ft.lb
Design N
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 4344 lb
Efficiency
50% 95.1
75% 95.4
100% 95.8
Power factor
50% 0.61
75% 0.73
100% 0.78
Electric Motors
Frame 355M/L
Output 350 HP (260 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 380 V
Rated current 501 A
L. R. Amperes 2255 A
LRC 4.5
No load current 160 A
Rated torque 1860 ft.lb
Locked rotor torque 160 %
Breakdown torque 180 %
Locked rotor time 117s (cold) 65s (hot)
Moment of inertia (J) 356 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 4344 lb
Efficiency
50% 95.7
75% 96.1
100% 96.2
Power factor
50% 0.68
75% 0.78
100% 0.82
Electric Motors
Frame 355M/L
Output 350 HP (260 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 992 rpm
Slip 0.80 %
Rated voltage 400 V
Rated current 487 A
L. R. Amperes 2338 A
LRC 4.8
No load current 170 A
Rated torque 1850 ft.lb
Locked rotor torque 180 %
Breakdown torque 200 %
Locked rotor time 111s (cold) 62s (hot)
Moment of inertia (J) 356 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 4344 lb
Efficiency
50% 95.5
75% 96.1
100% 96.3
Power factor
50% 0.64
75% 0.75
100% 0.80
Electric Motors
Frame 355M/L
Output 350 HP (260 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 993 rpm
Slip 0.70 %
Rated voltage 415 V
Rated current 475 A
L. R. Amperes 2470 A
LRC 5.2
No load current 180 A
Rated torque 1850 ft.lb
Locked rotor torque 190 %
Breakdown torque 210 %
Locked rotor time 106s (cold) 59s (hot)
Moment of inertia (J) 356 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 4344 lb
Efficiency
50% 95.3
75% 96.0
100% 96.3
Power factor
50% 0.61
75% 0.73
100% 0.79
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xM63x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Aluminum
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
