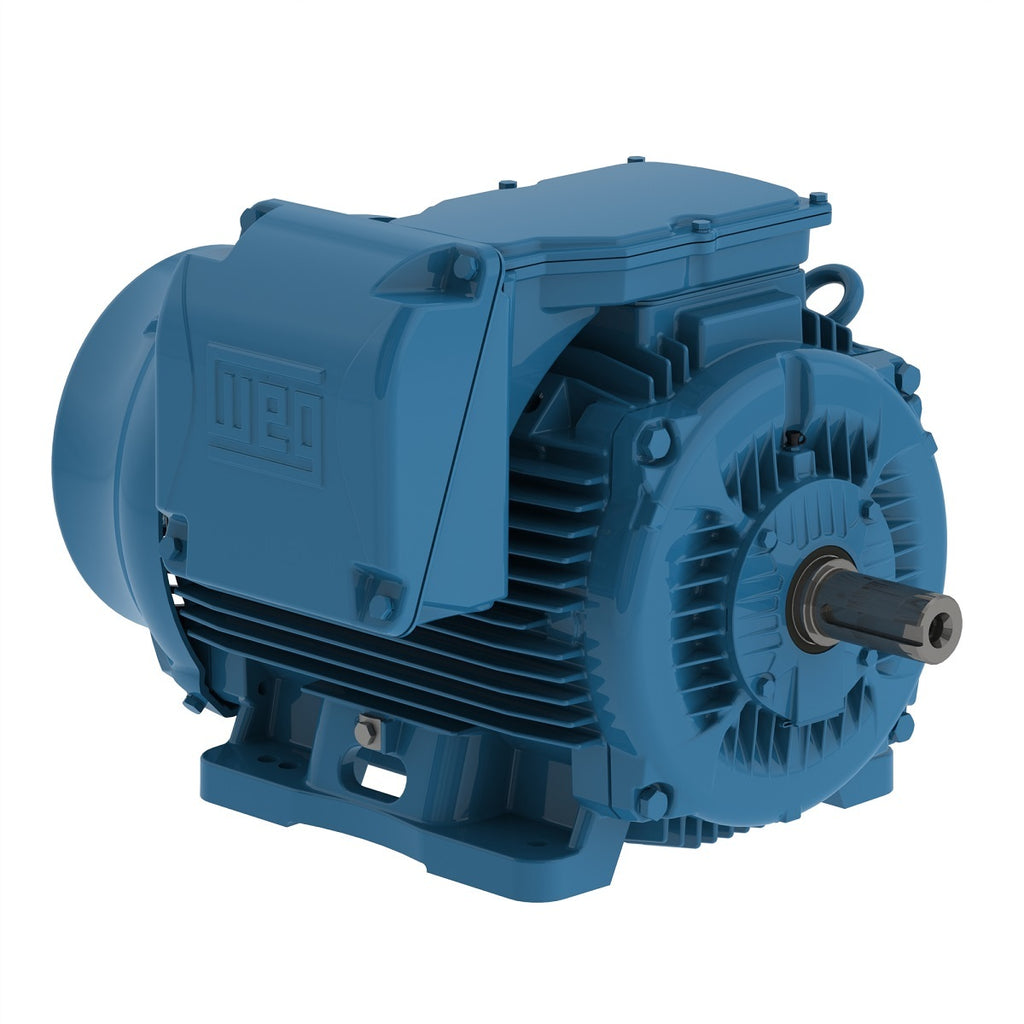

Designed to meet the demanding requirements of the rock crushing industry, the Crusher Duty motor comes standard with 4140 high strength shafts and heavy duty roller bearings. This motor complies or exceeds EISA 2016 requlations. Compliment your WEG Crusher Duty motor with our TPH2 Starter to complete your solution!
| Standard |
NEMA MG-1 |
| Frequency |
60 Hz |
| Voltage |
460 V |
| Number of poles |
6 |
| Degree of Protection |
IP55 |
| Synchronous speed |
1200 rpm |
| Output rating |
250 HP |
| Mounting |
F-1 |
| Flange |
Without |
| Terminal box¹ |
Left position |
| Enclosure |
IC411 - TEFC |
Electric Motors
| Frame |
447/9T |
| Output |
250 HP (185 kW) |
| Number of Poles |
6 |
| Frequency |
60 Hz |
| Rated speed |
1185 rpm |
| Slip |
1.25 % |
| Rated voltage |
460 V |
| Rated current |
292 A |
| L. R. Amperes |
1781 A |
| LRC |
6.1x(Code G) |
| No load current |
120 A |
| Rated torque |
1110 ft.lb |
| Locked rotor torque |
240 % |
| Breakdown torque |
240 % |
| Locked rotor time |
21s (cold) 12s (hot) |
| Moment of inertia (J) |
145 sq.ft.lb |
| Design |
A |
| Insulation Class |
F |
| Temperature rise |
80 K |
| Duty Cycle |
Cont.(S1) |
| Starting Method |
Direct On Line |
| Ambient temperature |
-20°C to +40°C |
| Altitude |
1000 m.a.s.l. |
| Degree of Protection |
IP55 |
| Enclosure |
IC411 - TEFC |
| Mounting |
F-1 |
| Rotation¹ |
Both (CW and CCW) |
| Noise level² |
70.0 dB(A) |
| Approx. weight³ |
3023 lb |
Efficiency
| 50% |
95.0 |
| 75% |
95.4 |
| 100% |
95.8 |
Power factor
| 50% |
0.68 |
| 75% |
0.79 |
| 100% |
0.83 |
Features
| Frame Material |
Cast Iron |
| Impregnation Method |
Constant Resin Flow |
| Regreasing System |
Extended, at Drive end and Non-drive end |
| Main terminal box hole |
2xNPT 3" |
| Terminal Block |
Without |
| Shaft Locking Device |
With |
| Drain |
Rubber, automatic |
| Shaft Material |
SAE 4140 Carbon Steel |
| Painting |
RAL 5009 203A (ISO 12944 - C2) |
| Grounding Lugs |
Double |
| Fan Cover material |
Cast Iron |
| Tropicalized Painting |
Without |
| Fan material |
Aluminum |
| Bearing cap |
Yes- Bearing Cap |
| Balancing Method |
1/2 Key |
| Drip Cover |
Without |
| Overload protector (phenolic) |
Without overload protector |
| Connection Cables Quantity |
12 |
Features
| Frame Material |
Cast Iron |
| Impregnation Method |
Constant Resin Flow |
| Regreasing System |
Extended, at Drive end and Non-drive end |
| Main terminal box hole |
2xNPT 3" |
| Terminal Block |
Without |
| Shaft Locking Device |
With |
| Drain |
Rubber, automatic |
| Shaft Material |
SAE 4140 Carbon Steel |
| Painting |
RAL 5009 203A (ISO 12944 - C2) |
| Grounding Lugs |
Double |
| Fan Cover material |
Cast Iron |
| Tropicalized Painting |
Without |
| Fan material |
Aluminum |
| Bearing cap |
Yes- Bearing Cap |
| Balancing Method |
1/2 Key |
| Drip Cover |
Without |
| Overload protector (phenolic) |
Without overload protector |
| Connection Cables Quantity |
12 |
