Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 460//380-415/660-690 V |
| Number of poles | 6 |
| Degree of Protection | IP55 |
| Synchronous speed | 1200 rpm |
| Output rating | 300 HP |
| Mounting | B3L(E) |
| Flange | Without |
| Terminal box¹ | Right position |
| Enclosure | IC411 - TEFC |

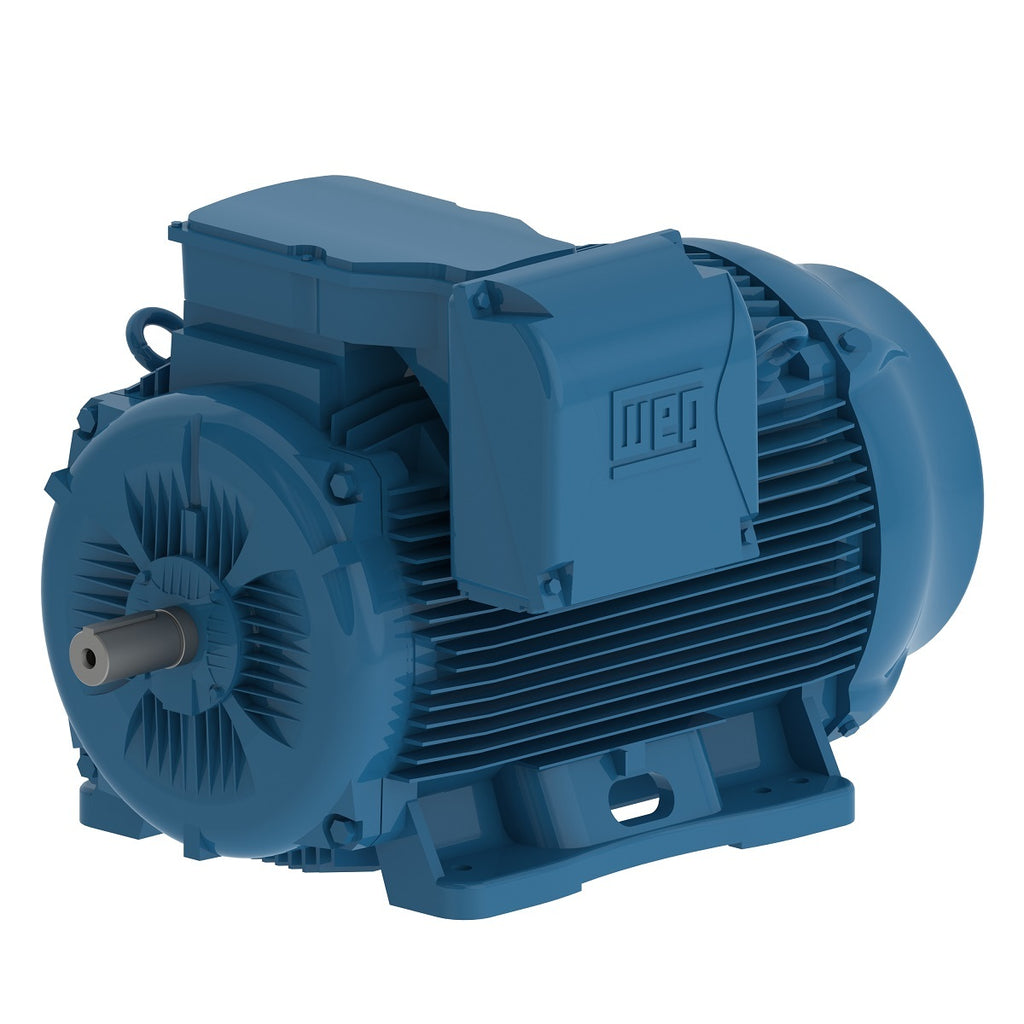

Electric Motors
| Frame | 355M/L |
|---|---|
| Output | 300 HP (220 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 995 rpm |
| Slip | 0.50 % |
| Rated voltage | 380/660 V |
| Rated current | 424/244 A |
| L. R. Amperes | 2756/1586 A |
| LRC | 6.5 |
| No load current | 177/102 A |
| Rated torque | 1580 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 210 % |
| Locked rotor time | 64s (cold) 36s (hot) |
| Moment of inertia (J) | 318 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 73.0 dB(A) |
| Approx. weight³ | 4088 lb |
Efficiency
| 50% | 95.7 |
|---|---|
| 75% | 96.1 |
| 100% | 96.2 |
Power factor
| 50% | 0.68 |
|---|---|
| 75% | 0.78 |
| 100% | 0.82 |
Electric Motors
| Frame | 355M/L |
|---|---|
| Output | 300 HP (220 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 995 rpm |
| Slip | 0.50 % |
| Rated voltage | 400/690 V |
| Rated current | 412/239 A |
| L. R. Amperes | 2678/1554 A |
| LRC | 6.5 |
| No load current | 190/110 A |
| Rated torque | 1580 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 229 % |
| Locked rotor time | 64s (cold) 36s (hot) |
| Moment of inertia (J) | 318 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 73.0 dB(A) |
| Approx. weight³ | 4088 lb |
Efficiency
| 50% | 95.5 |
|---|---|
| 75% | 96.1 |
| 100% | 96.3 |
Power factor
| 50% | 0.64 |
|---|---|
| 75% | 0.75 |
| 100% | 0.80 |
Electric Motors
| Frame | 355M/L |
|---|---|
| Output | 300 HP (220 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 995 rpm |
| Slip | 0.50 % |
| Rated voltage | 415 V |
| Rated current | 402 A |
| L. R. Amperes | 2613 A |
| LRC | 6.5 |
| No load current | 201 A |
| Rated torque | 1580 ft.lb |
| Locked rotor torque | 240 % |
| Breakdown torque | 250 % |
| Locked rotor time | 64s (cold) 36s (hot) |
| Moment of inertia (J) | 318 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 73.0 dB(A) |
| Approx. weight³ | 4088 lb |
Efficiency
| 50% | 95.3 |
|---|---|
| 75% | 96.0 |
| 100% | 96.3 |
Power factor
| 50% | 0.61 |
|---|---|
| 75% | 0.73 |
| 100% | 0.79 |
Electric Motors
| Frame | 355M/L |
|---|---|
| Output | 300 HP (220 kW) |
| Number of Poles | 6 |
| Frequency | 60 Hz |
| Rated speed | 1195 rpm |
| Slip | 0.42 % |
| Rated voltage | 460 V |
| Rated current | 370 A |
| L. R. Amperes | 2590 A |
| LRC | 7.0 |
| No load current | 181 A |
| Rated torque | 1320 ft.lb |
| Locked rotor torque | 260 % |
| Breakdown torque | 290 % |
| Locked rotor time | 90s (cold) 50s (hot) |
| Moment of inertia (J) | 318 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 77.0 dB(A) |
| Approx. weight³ | 4088 lb |
Efficiency
| 50% | 94.8 |
|---|---|
| 75% | 95.8 |
| 100% | 95.8 |
Power factor
| 50% | 0.60 |
|---|---|
| 75% | 0.72 |
| 100% | 0.78 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Constant Resin Flow |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | 2xM63x1,5 |
| Terminal Block | BMC - 6 pins |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 4140 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 - C2) |
| Grounding Lugs | Double |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 6 |
