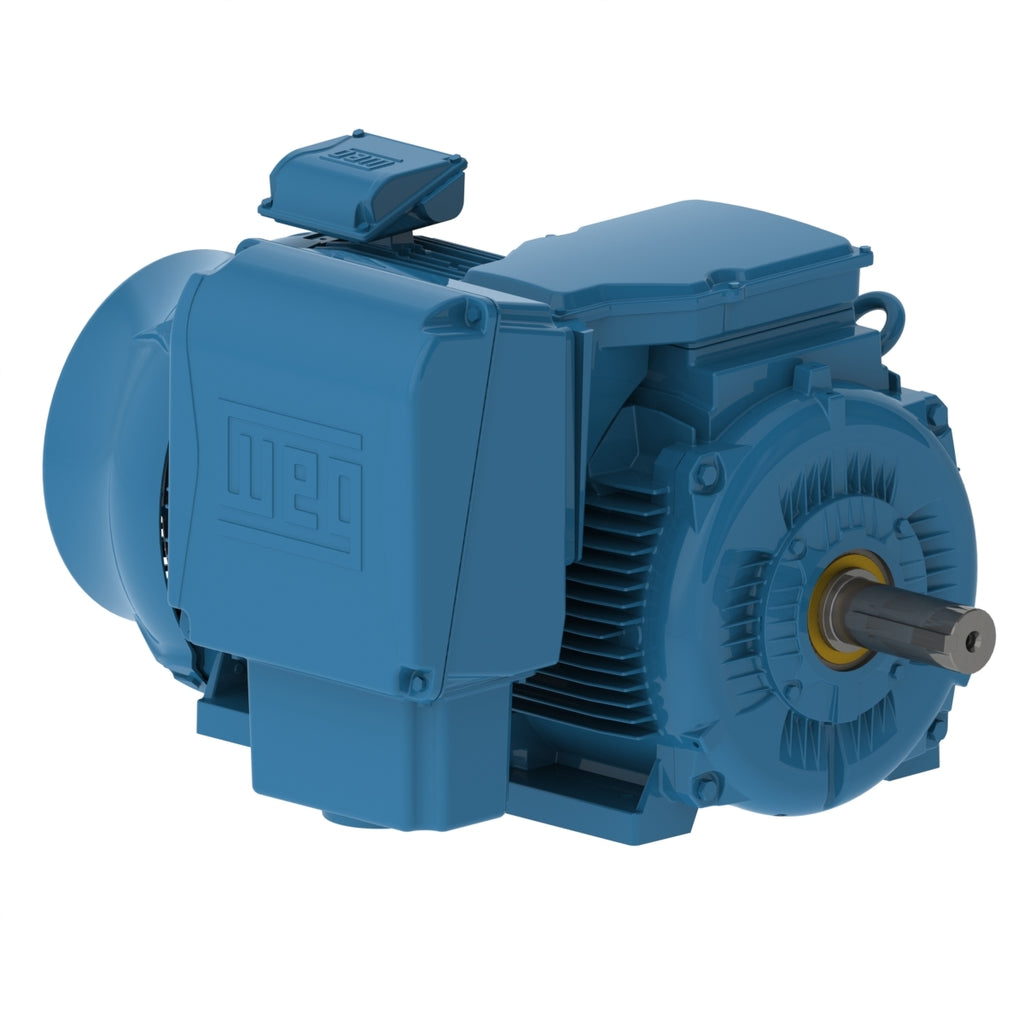

Description
Note: This item can be derated to 50HP less than the rated power. Please contact Inside Sales for more information.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 2300/4160 V |
| Number of poles | 2 |
| Degree of Protection | IP55 |
| Synchronous speed | 3600 rpm |
| Output rating | 200 HP |
| Mounting | F-1 |
| Flange | Without |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
Electric Motors
| Frame | L447/9TS |
|---|---|
| Output | 200 HP (150 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3580 rpm |
| Slip | 0.56 % |
| Rated voltage | 2300 V |
| Rated current | 47.1 A |
| L. R. Amperes | 410 A |
| LRC | 8.7x(Code K) |
| No load current | 19.0 A |
| Rated torque | 293 ft.lb |
| Locked rotor torque | 180 % |
| Breakdown torque | 280 % |
| Locked rotor time | 32s (cold) 18s (hot) |
| Moment of inertia (J) | 37.7 sq.ft.lb |
| Design | A |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 88.0 dB(A) |
| Approx. weight³ | 3105 lb |
Efficiency
| 50% | 92.4 |
|---|---|
| 75% | 93.6 |
| 100% | 94.1 |
Power factor
| 50% | 0.72 |
|---|---|
| 75% | 0.82 |
| 100% | 0.85 |
Electric Motors
| Frame | L447/9TS |
|---|---|
| Output | 200 HP (150 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3582 rpm |
| Slip | 0.50 % |
| Rated voltage | 4160 V |
| Rated current | 26.4 A |
| L. R. Amperes | 230 A |
| LRC | 8.7x(Code K) |
| No load current | 11.0 A |
| Rated torque | 293 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 300 % |
| Locked rotor time | 32s (cold) 18s (hot) |
| Moment of inertia (J) | 37.7 sq.ft.lb |
| Design | A |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 88.0 dB(A) |
| Approx. weight³ | 3105 lb |
Efficiency
| 50% | 92.1 |
|---|---|
| 75% | 93.4 |
| 100% | 94.0 |
Power factor
| 50% | 0.70 |
|---|---|
| 75% | 0.80 |
| 100% | 0.84 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Sealed winding (2x VPI + pulverization) |
| Regreasing System | Extended, at Drive end and Non-drive end |
| Space Heater Voltage | 110 - 127 V |
| Main terminal box hole | NPT 3" |
| Accessories Terminal Box | With |
| Space Heater Terminal Box | With |
| Shaft Locking Device | Without |
| Drain | Type T, Threaded |
| Shaft Material | SAE 4140 Carbon Steel |
| Painting | RAL 5009 202E (ISO 12944 - C4) |
| Grounding Lugs | Double + Additional in Brass |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | According to IEEE-841 (96h) |
| Joints Seal | Molykote |
| Foot flatness | (0.005 pol) 0.127 mm |
| Fan material | Aluminum |
| Bearing cap | Yes- Bearing Cap |
| Winding thermal protection | PT100 - 3 wires 2 per phase |
| Bearing thermal protection | PT100 - 3 wires 1 on DE bearing PT100 - 3 wires 1 on NDE bearing |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 6 |
