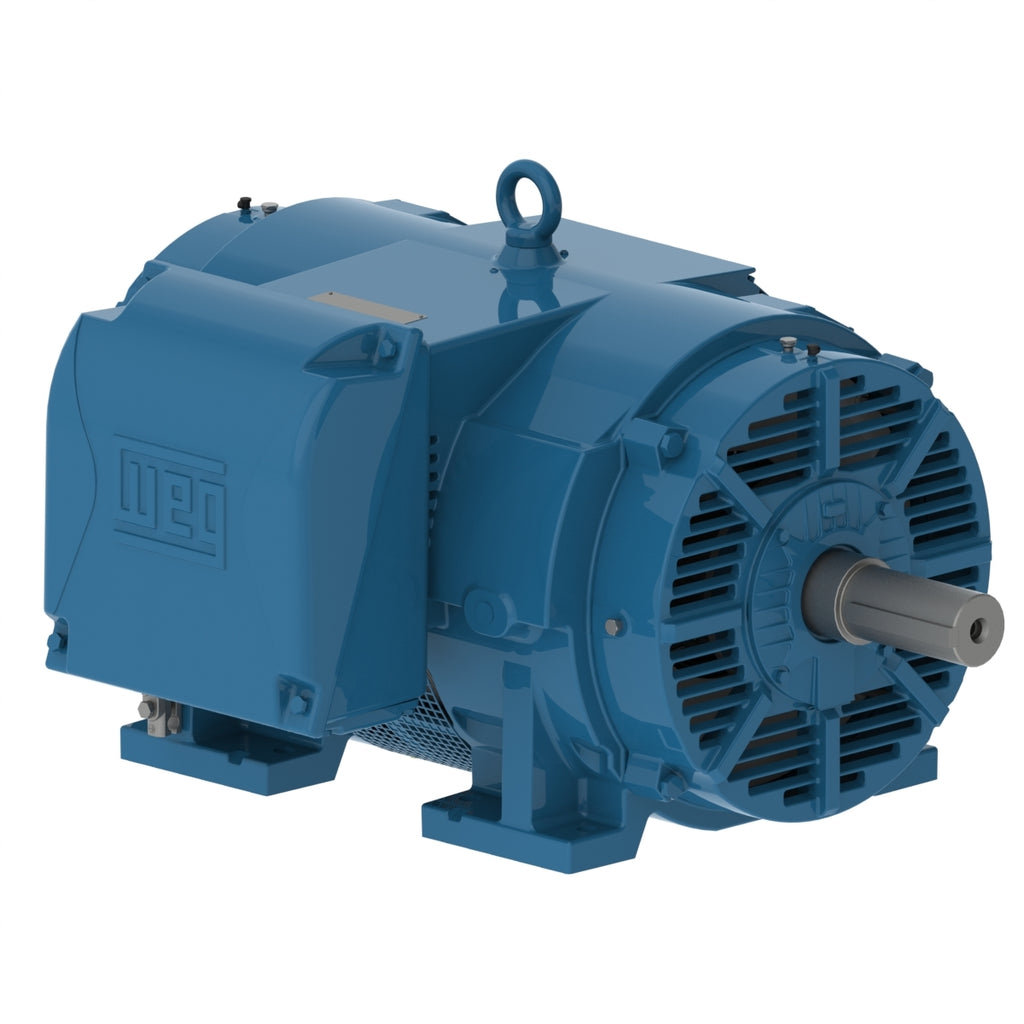

WEG 20012OT3G447/9T-W40 W40 NEMA Premium Efficiency 200 HP 6P 447/9T 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 20012OT3G447/9T-W40 W40 NEMA Premium Efficiency 200 HP 6P 447/9T 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted

WEG 20012OT3G447/9T-W40 W40 NEMA Premium Efficiency 200 HP 6P 447/9T 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted

WEGSKU: 20012OT3G447/9T-W40

GTIN :

MPN :

Dropship

Price:
$23,380.00

Description

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 6
Degree of Protection IP23
Synchronous speed 1200 rpm
Output rating 200 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC01 - ODP


Electric Motors
Frame 447/9T
Output 200 HP (150 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1185 rpm
Slip 1.25 %
Rated voltage 460 V
Rated current 241 A
L. R. Amperes 1398 A
LRC 5.8x(Code F)
No load current 95.0 A
Rated torque 886 ft.lb
Locked rotor torque 200 %
Breakdown torque 220 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 98.2 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 1997 lb
Efficiency
50% 95.0
75% 95.4
100% 95.4
Power factor
50% 0.69
75% 0.78
100% 0.82
Electric Motors
Frame 447/9T
Output 175 HP (132 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 253 A
L. R. Amperes 1316 A
LRC 5.2x(Code E)
No load current 93.7 A
Rated torque 938 ft.lb
Locked rotor torque 170 %
Breakdown torque 190 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 98.2 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 1997 lb
Efficiency
50% 94.3
75% 94.6
100% 95.4
Power factor
50% 0.70
75% 0.80
100% 0.83
Electric Motors
Frame 447/9T
Output 175 HP (132 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 244 A
L. R. Amperes 1415 A
LRC 5.8x(Code G)
No load current 101 A
Rated torque 938 ft.lb
Locked rotor torque 190 %
Breakdown torque 220 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 98.2 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 1997 lb
Efficiency
50% 94.1
75% 94.6
100% 95.4
Power factor
50% 0.66
75% 0.77
100% 0.82
Electric Motors
Frame 447/9T
Output 175 HP (132 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 238 A
L. R. Amperes 1499 A
LRC 6.3x(Code G)
No load current 108 A
Rated torque 938 ft.lb
Locked rotor torque 210 %
Breakdown torque 240 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 98.2 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 1997 lb
Efficiency
50% 94.0
75% 94.6
100% 95.4
Power factor
50% 0.63
75% 0.76
100% 0.81
Electric Motors
Frame 447/9T
Output 200 HP (150 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 290 A
L. R. Amperes 1305 A
LRC 4.5x(Code D)
No load current 93.7 A
Rated torque 1070 ft.lb
Locked rotor torque 150 %
Breakdown torque 170 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 98.2 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 1997 lb
Efficiency
50% 94.5
75% 94.5
100% 94.7
Power factor
50% 0.75
75% 0.81
100% 0.83
Electric Motors
Frame 447/9T
Output 200 HP (150 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 275 A
L. R. Amperes 1403 A
LRC 5.1x(Code E)
No load current 101 A
Rated torque 1070 ft.lb
Locked rotor torque 170 %
Breakdown torque 190 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 98.2 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 1997 lb
Efficiency
50% 94.5
75% 94.5
100% 94.7
Power factor
50% 0.71
75% 0.79
100% 0.83
Electric Motors
Frame 447/9T
Output 200 HP (150 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 269 A
L. R. Amperes 1506 A
LRC 5.6x(Code F)
No load current 108 A
Rated torque 1070 ft.lb
Locked rotor torque 180 %
Breakdown torque 210 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 98.2 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 1997 lb
Efficiency
50% 94.5
75% 94.5
100% 94.7
Power factor
50% 0.68
75% 0.78
100% 0.82
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermistor - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
