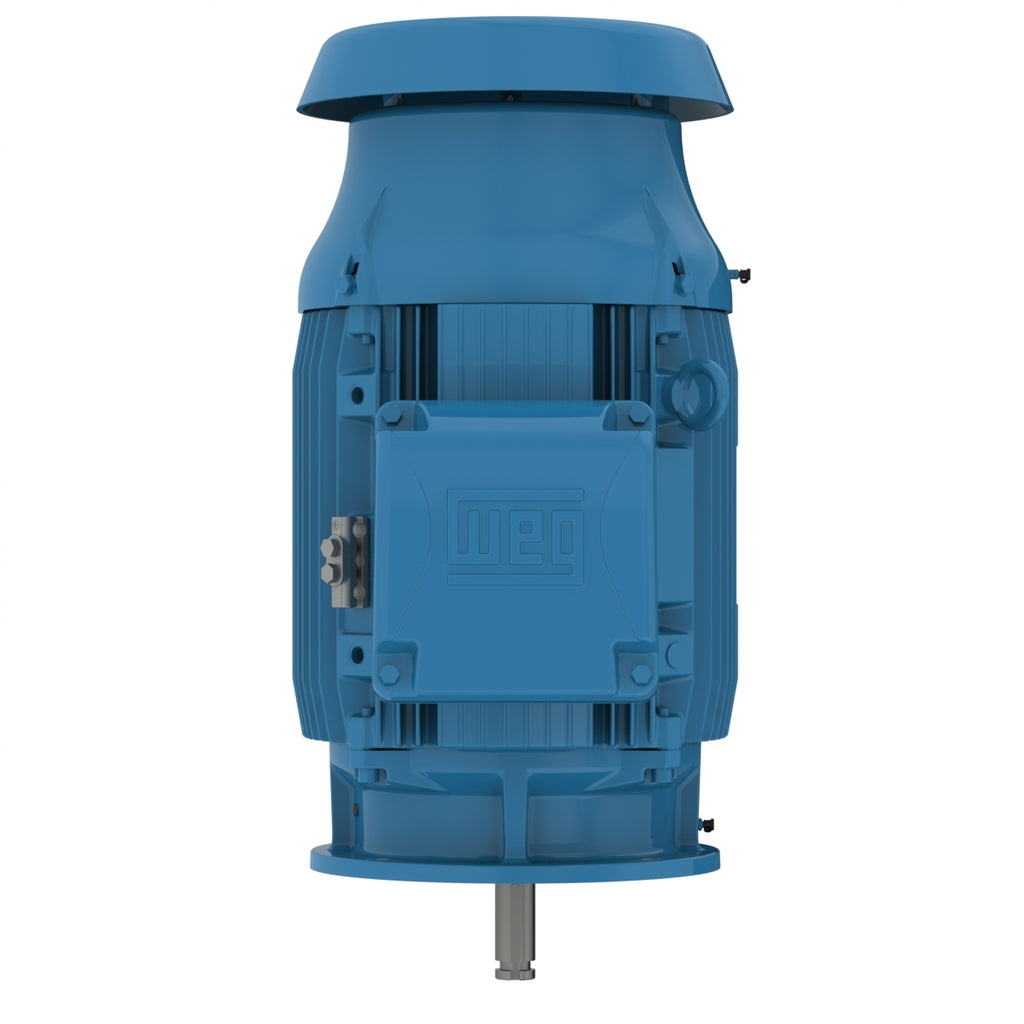

WEG 15018ET3G445HP-W22 W22 P Base NEMA Premium Efficiency 150 HP 4P 444/5HP 3Ph 460 V 60 Hz IC411 - TEFC - Footless
Roll over image to zoom in Click on image to zoom
WEG 15018ET3G445HP-W22 W22 P Base NEMA Premium Efficiency 150 HP 4P 444/5HP 3Ph 460 V 60 Hz IC411 - TEFC - Footless

WEG 15018ET3G445HP-W22 W22 P Base NEMA Premium Efficiency 150 HP 4P 444/5HP 3Ph 460 V 60 Hz IC411 - TEFC - Footless

WEGSKU: 15018ET3G445HP-W22

GTIN : 7909322211572

MPN :

Dropship

Price:
$17,845.00

Description

Line of vertical motors with flange type P. For application on irrigation pumps, water treatment, petrochemical industry, among others, in environments with dust and humidity demanding high torque.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 150 HP
Mounting W-6
Flange P
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 444/5HP
Output 150 HP (110 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 460 V
Rated current 170 A
L. R. Amperes 1122 A
LRC 6.6x(Code G)
No load current 58.0 A
Rated torque 443 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 48s (cold) 27s (hot)
Moment of inertia (J) 66.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 1887 lb
Efficiency
50% 95.4
75% 95.8
100% 95.8
Power factor
50% 0.74
75% 0.82
100% 0.85
Electric Motors
Frame 444/5HP
Output 125 HP
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 170 A
L. R. Amperes 1190 A
LRC 7.0x(Code G)
No load current 58.0 A
Rated torque 444 ft.lb
Locked rotor torque 190 %
Breakdown torque 240 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 66.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1887 lb
Efficiency
50% 95.1
75% 95.5
100% 95.3
Power factor
50% 0.73
75% 0.83
100% 0.86
Electric Motors
Frame 444/5HP
Output 125 HP
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 163 A
L. R. Amperes 1127 A
LRC 6.9x(Code G)
No load current 61.2 A
Rated torque 444 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 66.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1887 lb
Efficiency
50% 95.1
75% 95.5
100% 95.3
Power factor
50% 0.70
75% 0.81
100% 0.85
Electric Motors
Frame 444/5HP
Output 150 HP (110 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 189 A
L. R. Amperes 1191 A
LRC 6.3x(Code G)
No load current 64.0 A
Rated torque 532 ft.lb
Locked rotor torque 190 %
Breakdown torque 240 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 66.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1887 lb
Efficiency
50% 95.4
75% 95.4
100% 95.4
Power factor
50% 0.74
75% 0.82
100% 0.85
Electric Motors
Frame 444/5HP
Output 150 HP (110 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 380 V
Rated current 205 A
L. R. Amperes 1189 A
LRC 5.8x(Code F)
No load current 58.0 A
Rated torque 534 ft.lb
Locked rotor torque 160 %
Breakdown torque 200 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 66.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1887 lb
Efficiency
50% 95.4
75% 95.4
100% 95.0
Power factor
50% 0.79
75% 0.85
100% 0.86
Electric Motors
Frame 444/5HP
Output 150 HP (110 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 400 V
Rated current 194 A
L. R. Amperes 1125 A
LRC 5.8x(Code F)
No load current 61.2 A
Rated torque 534 ft.lb
Locked rotor torque 180 %
Breakdown torque 220 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 66.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1887 lb
Efficiency
50% 95.4
75% 95.4
100% 95.0
Power factor
50% 0.76
75% 0.83
100% 0.86
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover With
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
