Description

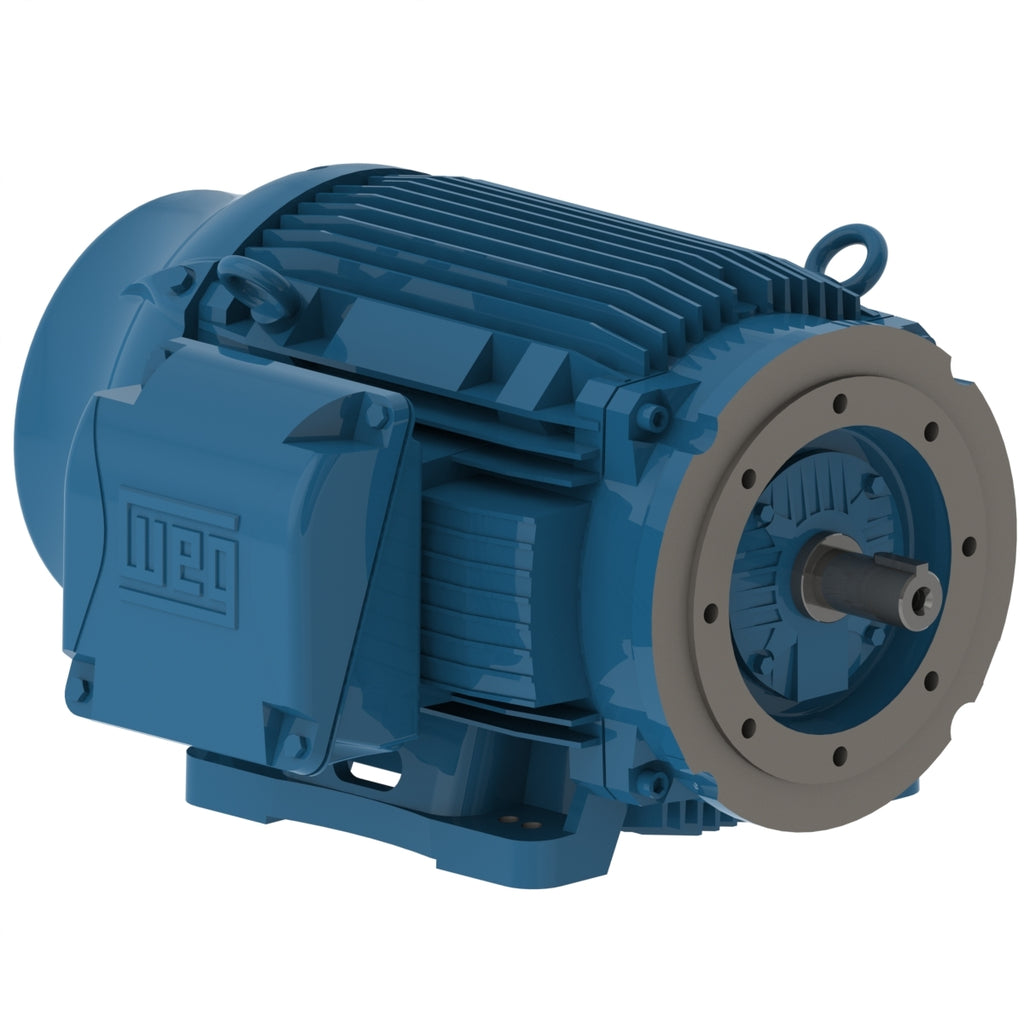

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//380 V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Output rating | 150 HP |
| Mounting | F-1 |
| Flange | C |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
Specifications
230/460 V 60 Hz 4P 380 V 50 Hz 4P IE3 400 V 50 Hz 4P IE3 415 V 50 Hz 4P IE3 380 V 50 Hz 4P IE2 400 V 50 Hz 4P IE2Electric Motors
| Frame | 444/5TC |
|---|---|
| Output | 150 HP (110 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1780 rpm |
| Slip | 1.11 % |
| Rated voltage | 230/460 V |
| Rated current | 340/170 A |
| L. R. Amperes | 2244/1122 A |
| LRC | 6.6x(Code G) |
| No load current | 116/58.0 A |
| Rated torque | 443 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 250 % |
| Locked rotor time | 48s (cold) 27s (hot) |
| Moment of inertia (J) | 66.7 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 73.0 dB(A) |
| Approx. weight³ | 1785 lb |
Efficiency
| 50% | 95.4 |
|---|---|
| 75% | 95.8 |
| 100% | 95.8 |
Power factor
| 50% | 0.74 |
|---|---|
| 75% | 0.82 |
| 100% | 0.85 |
Electric Motors
| Frame | 444/5TC |
|---|---|
| Output | 125 HP |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1480 rpm |
| Slip | 1.33 % |
| Rated voltage | 380 V |
| Rated current | 170 A |
| L. R. Amperes | 1190 A |
| LRC | 7.0x(Code G) |
| No load current | 58.0 A |
| Rated torque | 444 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 240 % |
| Locked rotor time | 32s (cold) 18s (hot) |
| Moment of inertia (J) | 66.7 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 69.0 dB(A) |
| Approx. weight³ | 1785 lb |
Efficiency
| 50% | 95.1 |
|---|---|
| 75% | 95.5 |
| 100% | 95.3 |
Power factor
| 50% | 0.73 |
|---|---|
| 75% | 0.83 |
| 100% | 0.86 |
Electric Motors
| Frame | 444/5TC |
|---|---|
| Output | 125 HP |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1480 rpm |
| Slip | 1.33 % |
| Rated voltage | 400 V |
| Rated current | 163 A |
| L. R. Amperes | 1127 A |
| LRC | 6.9x(Code G) |
| No load current | 61.2 A |
| Rated torque | 444 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 260 % |
| Locked rotor time | 32s (cold) 18s (hot) |
| Moment of inertia (J) | 66.7 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 69.0 dB(A) |
| Approx. weight³ | 1785 lb |
Efficiency
| 50% | 95.1 |
|---|---|
| 75% | 95.5 |
| 100% | 95.3 |
Power factor
| 50% | 0.70 |
|---|---|
| 75% | 0.81 |
| 100% | 0.85 |
Electric Motors
| Frame | 444/5TC |
|---|---|
| Output | 150 HP (110 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1480 rpm |
| Slip | 1.33 % |
| Rated voltage | 415 V |
| Rated current | 189 A |
| L. R. Amperes | 1191 A |
| LRC | 6.3x(Code G) |
| No load current | 64.0 A |
| Rated torque | 532 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 240 % |
| Locked rotor time | 32s (cold) 18s (hot) |
| Moment of inertia (J) | 66.7 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 69.0 dB(A) |
| Approx. weight³ | 1785 lb |
Efficiency
| 50% | 95.4 |
|---|---|
| 75% | 95.4 |
| 100% | 95.4 |
Power factor
| 50% | 0.74 |
|---|---|
| 75% | 0.82 |
| 100% | 0.85 |
Electric Motors
| Frame | 444/5TC |
|---|---|
| Output | 150 HP (110 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1475 rpm |
| Slip | 1.67 % |
| Rated voltage | 380 V |
| Rated current | 205 A |
| L. R. Amperes | 1189 A |
| LRC | 5.8x(Code F) |
| No load current | 58.0 A |
| Rated torque | 534 ft.lb |
| Locked rotor torque | 160 % |
| Breakdown torque | 200 % |
| Locked rotor time | 32s (cold) 18s (hot) |
| Moment of inertia (J) | 66.7 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 69.0 dB(A) |
| Approx. weight³ | 1785 lb |
Efficiency
| 50% | 95.4 |
|---|---|
| 75% | 95.4 |
| 100% | 95.0 |
Power factor
| 50% | 0.79 |
|---|---|
| 75% | 0.85 |
| 100% | 0.86 |
Electric Motors
| Frame | 444/5TC |
|---|---|
| Output | 150 HP (110 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1475 rpm |
| Slip | 1.67 % |
| Rated voltage | 400 V |
| Rated current | 194 A |
| L. R. Amperes | 1125 A |
| LRC | 5.8x(Code F) |
| No load current | 61.2 A |
| Rated torque | 534 ft.lb |
| Locked rotor torque | 180 % |
| Breakdown torque | 220 % |
| Locked rotor time | 32s (cold) 18s (hot) |
| Moment of inertia (J) | 66.7 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 69.0 dB(A) |
| Approx. weight³ | 1785 lb |
Efficiency
| 50% | 95.4 |
|---|---|
| 75% | 95.4 |
| 100% | 95.0 |
Power factor
| 50% | 0.76 |
|---|---|
| 75% | 0.83 |
| 100% | 0.86 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Constant Resin Flow |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | 2xNPT 3" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 4140 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 - C2) |
| Grounding Lugs | Double |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 12 |
