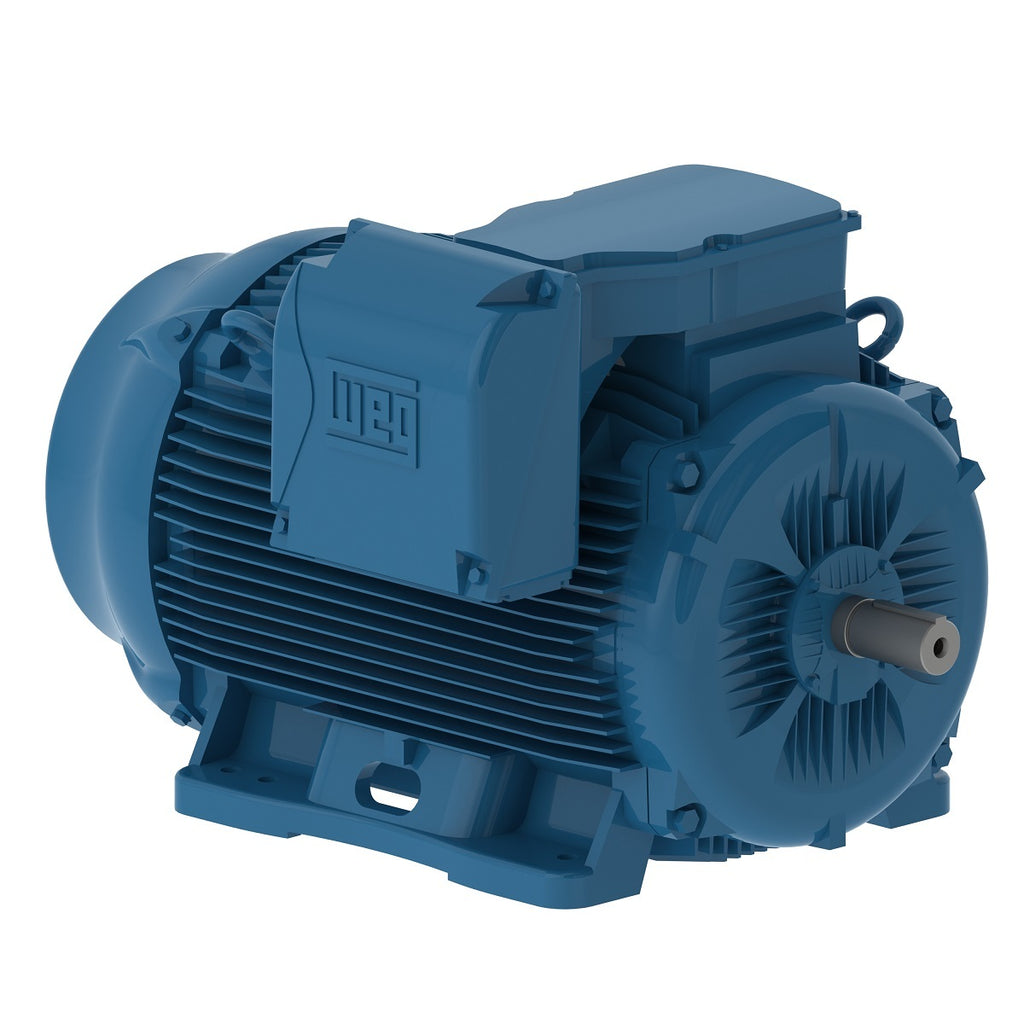

WEG 15012ET3G447T-W22 W22 NEMA Premium Efficiency 150 HP 6P 445/7T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 15012ET3G447T-W22 W22 NEMA Premium Efficiency 150 HP 6P 445/7T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

WEG 15012ET3G447T-W22 W22 NEMA Premium Efficiency 150 HP 6P 445/7T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 15012ET3G447T-W22

GTIN : 7894171933778

MPN :

Dropship

Price:
$20,639.00

Description

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 150 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 445/7T
Output 150 HP (110 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1187 rpm
Slip 1.08 %
Rated voltage 460 V
Rated current 176 A
L. R. Amperes 1091 A
LRC 6.2x(Code G)
No load current 70.0 A
Rated torque 664 ft.lb
Locked rotor torque 240 %
Breakdown torque 250 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 134 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 2272 lb
Efficiency
50% 95.0
75% 95.4
100% 95.8
Power factor
50% 0.67
75% 0.78
100% 0.82
Electric Motors
Frame 445/7T
Output 125 HP
Number of Poles 6
Frequency 50 Hz
Rated speed 987 rpm
Slip 1.30 %
Rated voltage 380 V
Rated current 174 A
L. R. Amperes 1044 A
LRC 6.0x(Code F)
No load current 70.0 A
Rated torque 665 ft.lb
Locked rotor torque 240 %
Breakdown torque 240 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 134 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 2272 lb
Efficiency
50% 94.8
75% 95.1
100% 94.9
Power factor
50% 0.67
75% 0.79
100% 0.83
Electric Motors
Frame 445/7T
Output 125 HP
Number of Poles 6
Frequency 50 Hz
Rated speed 989 rpm
Slip 1.10 %
Rated voltage 400 V
Rated current 167 A
L. R. Amperes 1086 A
LRC 6.5x(Code G)
No load current 74.0 A
Rated torque 664 ft.lb
Locked rotor torque 270 %
Breakdown torque 270 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 134 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 2272 lb
Efficiency
50% 94.5
75% 95.1
100% 95.1
Power factor
50% 0.64
75% 0.76
100% 0.82
Electric Motors
Frame 445/7T
Output 125 HP
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 165 A
L. R. Amperes 1155 A
LRC 7.0x(Code H)
No load current 78.0 A
Rated torque 663 ft.lb
Locked rotor torque 290 %
Breakdown torque 290 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 134 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 2272 lb
Efficiency
50% 94.5
75% 95.1
100% 95.1
Power factor
50% 0.60
75% 0.74
100% 0.80
Electric Motors
Frame 445/7T
Output 150 HP (110 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 982 rpm
Slip 1.80 %
Rated voltage 380 V
Rated current 211 A
L. R. Amperes 1055 A
LRC 5.0x(Code E)
No load current 70.0 A
Rated torque 802 ft.lb
Locked rotor torque 190 %
Breakdown torque 200 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 134 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 2272 lb
Efficiency
50% 95.0
75% 95.0
100% 94.5
Power factor
50% 0.73
75% 0.82
100% 0.84
Electric Motors
Frame 445/7T
Output 150 HP (110 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 400 V
Rated current 201 A
L. R. Amperes 1106 A
LRC 5.5x(Code F)
No load current 74.0 A
Rated torque 800 ft.lb
Locked rotor torque 220 %
Breakdown torque 229 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 134 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 2272 lb
Efficiency
50% 95.0
75% 95.0
100% 95.0
Power factor
50% 0.70
75% 0.80
100% 0.83
Electric Motors
Frame 445/7T
Output 150 HP (110 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 986 rpm
Slip 1.40 %
Rated voltage 415 V
Rated current 196 A
L. R. Amperes 1176 A
LRC 6.0x(Code G)
No load current 78.0 A
Rated torque 799 ft.lb
Locked rotor torque 240 %
Breakdown torque 250 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 134 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 2272 lb
Efficiency
50% 95.0
75% 95.0
100% 95.0
Power factor
50% 0.67
75% 0.78
100% 0.82
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
