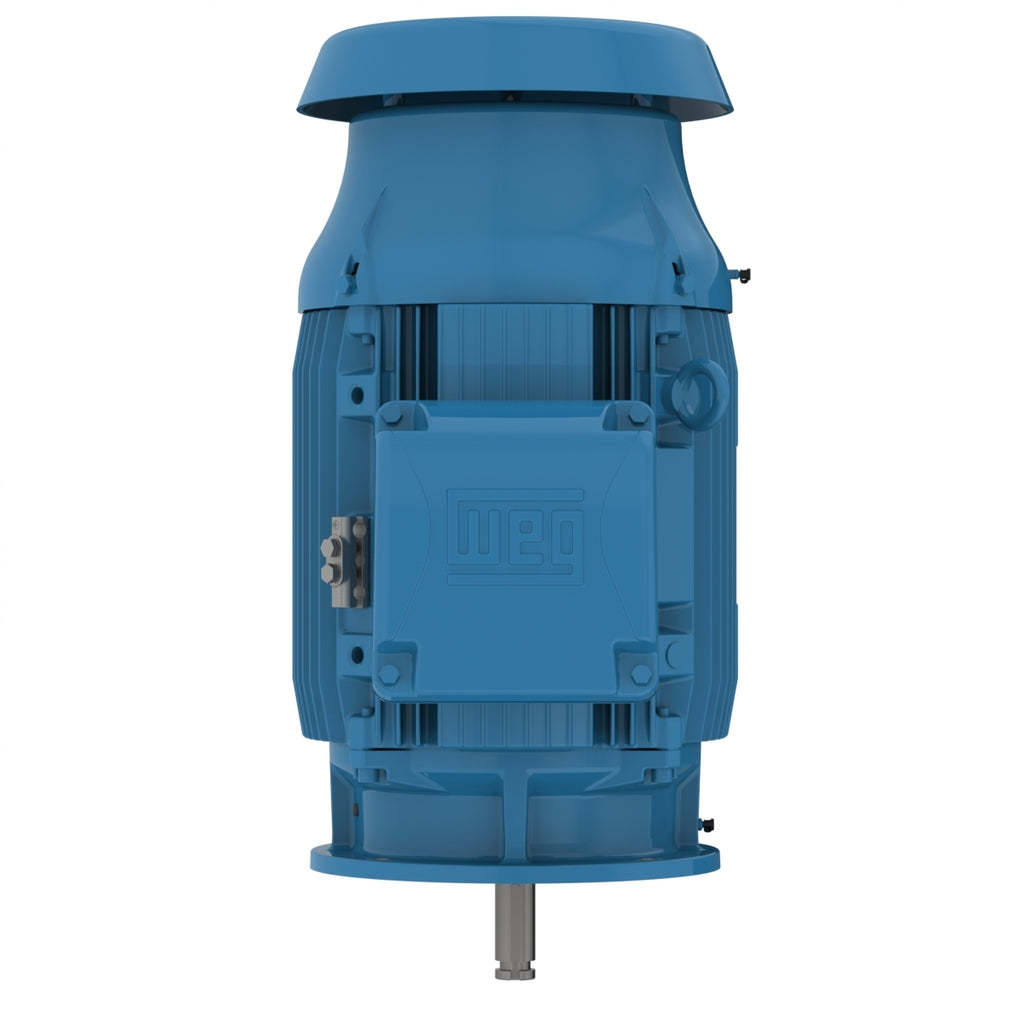

WEG 12536ET3G444HP-W22 W22 P Base NEMA Premium Efficiency 125 HP 2P 444/5HP 3Ph 460 V 60 Hz IC411 - TEFC - Footless
Roll over image to zoom in Click on image to zoom
WEG 12536ET3G444HP-W22 W22 P Base NEMA Premium Efficiency 125 HP 2P 444/5HP 3Ph 460 V 60 Hz IC411 - TEFC - Footless

WEG 12536ET3G444HP-W22 W22 P Base NEMA Premium Efficiency 125 HP 2P 444/5HP 3Ph 460 V 60 Hz IC411 - TEFC - Footless

WEGSKU: 12536ET3G444HP-W22

GTIN : 7909322287409

MPN :

Dropship

Price:
$17,969.00

Description

Line of vertical motors with flange type P. For application on irrigation pumps, water treatment, petrochemical industry, among others, in environments with dust and humidity demanding high torque.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 125 HP
Mounting W-6
Flange P
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 444/5HP
Output 125 HP
Number of Poles 2
Frequency 60 Hz
Rated speed 3570 rpm
Slip 0.83 %
Rated voltage 460 V
Rated current 134 A
L. R. Amperes 884 A
LRC 6.6x(Code G)
No load current 34.0 A
Rated torque 184 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 52s (cold) 29s (hot)
Moment of inertia (J) 33.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 81.0 dB(A)
Approx. weight³ 1683 lb
Efficiency
50% 93.6
75% 94.5
100% 95.0
Power factor
50% 0.82
75% 0.87
100% 0.89
Electric Motors
Frame 444/5HP
Output 100 HP (75 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 380 V
Rated current 135 A
L. R. Amperes 878 A
LRC 6.5x(Code G)
No load current 33.6 A
Rated torque 177 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 33.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 1683 lb
Efficiency
50% 93.2
75% 94.3
100% 94.7
Power factor
50% 0.79
75% 0.87
100% 0.89
Electric Motors
Frame 444/5HP
Output 100 HP (75 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 400 V
Rated current 128 A
L. R. Amperes 909 A
LRC 7.1x(Code G)
No load current 36.0 A
Rated torque 177 ft.lb
Locked rotor torque 210 %
Breakdown torque 280 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 33.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 1683 lb
Efficiency
50% 93.2
75% 94.3
100% 94.7
Power factor
50% 0.77
75% 0.87
100% 0.89
Electric Motors
Frame 444/5HP
Output 125 HP
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 148 A
L. R. Amperes 918 A
LRC 6.2x(Code F)
No load current 37.9 A
Rated torque 221 ft.lb
Locked rotor torque 190 %
Breakdown torque 240 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 33.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 1683 lb
Efficiency
50% 94.0
75% 94.5
100% 95.0
Power factor
50% 0.82
75% 0.87
100% 0.89
Electric Motors
Frame 444/5HP
Output 125 HP
Number of Poles 2
Frequency 50 Hz
Rated speed 2960 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 163 A
L. R. Amperes 848 A
LRC 5.2x(Code D)
No load current 33.6 A
Rated torque 222 ft.lb
Locked rotor torque 160 %
Breakdown torque 200 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 33.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 1683 lb
Efficiency
50% 94.0
75% 94.5
100% 94.5
Power factor
50% 0.85
75% 0.88
100% 0.89
Electric Motors
Frame 444/5HP
Output 125 HP
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 400 V
Rated current 154 A
L. R. Amperes 878 A
LRC 5.7x(Code E)
No load current 36.0 A
Rated torque 221 ft.lb
Locked rotor torque 170 %
Breakdown torque 220 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 33.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 1683 lb
Efficiency
50% 94.0
75% 94.5
100% 94.5
Power factor
50% 0.84
75% 0.88
100% 0.89
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover With
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
