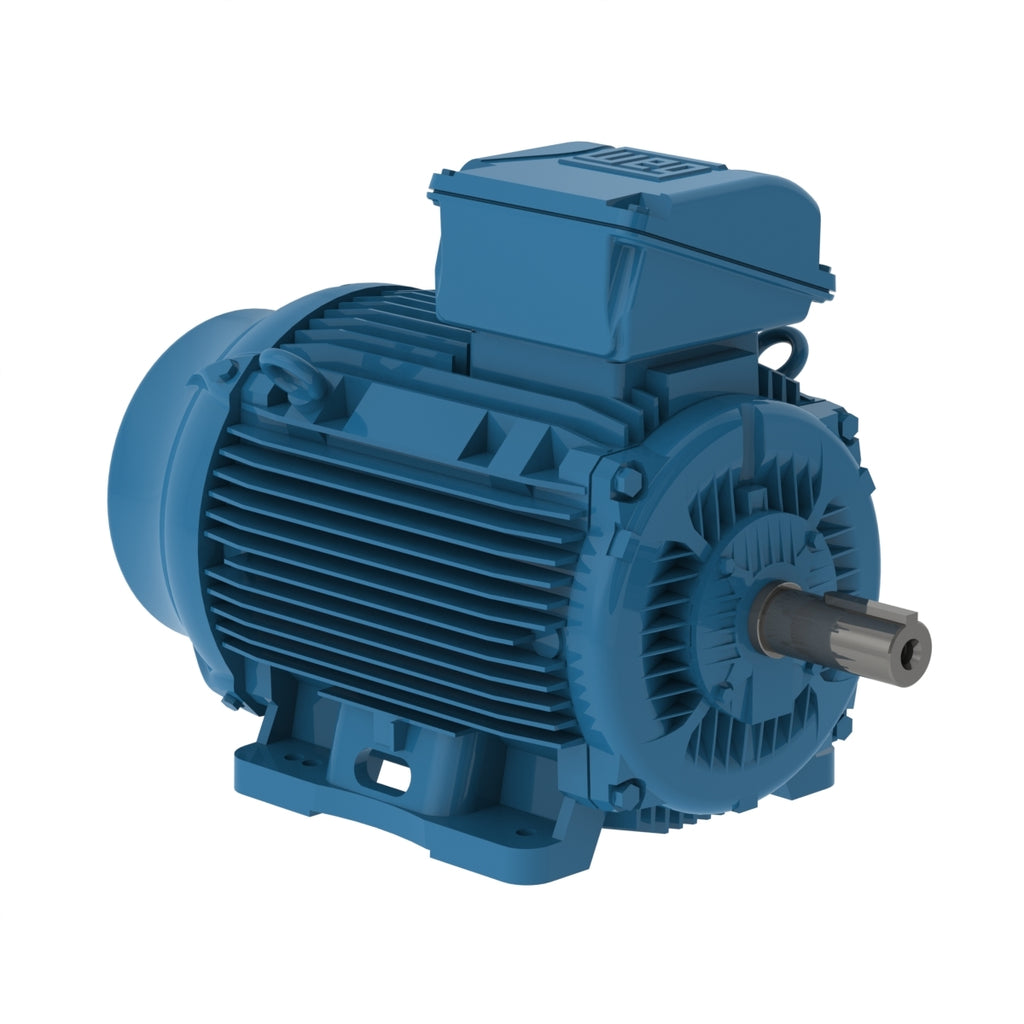

WEG 12536ET3E444TSF3-W22 W22 NEMA Premium Efficiency 125 HP 2P 444/5TS 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 12536ET3E444TSF3-W22 W22 NEMA Premium Efficiency 125 HP 2P 444/5TS 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEG 12536ET3E444TSF3-W22 W22 NEMA Premium Efficiency 125 HP 2P 444/5TS 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 12536ET3E444TSF3-W22

GTIN :

MPN :

Dropship

Price:
$15,811.00

Description

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 125 HP
Mounting F-3
Flange Without
Terminal box¹ Top
Enclosure IC411 - TEFC


Electric Motors
Frame 444/5TS
Output 125 HP
Number of Poles 2
Frequency 60 Hz
Rated speed 3570 rpm
Slip 0.83 %
Rated voltage 230/460 V
Rated current 268/134 A
L. R. Amperes 1769/884 A
LRC 6.6x(Code G)
No load current 68.0/34.0 A
Rated torque 184 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 52s (cold) 29s (hot)
Moment of inertia (J) 33.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 81.0 dB(A)
Approx. weight³ 1646 lb
Efficiency
50% 93.6
75% 94.5
100% 95.0
Power factor
50% 0.82
75% 0.87
100% 0.89
Electric Motors
Frame 444/5TS
Output 100 HP (75 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 380 V
Rated current 135 A
L. R. Amperes 878 A
LRC 6.5x(Code G)
No load current 33.6 A
Rated torque 177 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 33.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 1646 lb
Efficiency
50% 93.2
75% 94.3
100% 94.7
Power factor
50% 0.79
75% 0.87
100% 0.89
Electric Motors
Frame 444/5TS
Output 100 HP (75 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 400 V
Rated current 128 A
L. R. Amperes 909 A
LRC 7.1x(Code G)
No load current 36.0 A
Rated torque 177 ft.lb
Locked rotor torque 210 %
Breakdown torque 280 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 33.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 1646 lb
Efficiency
50% 93.2
75% 94.3
100% 94.7
Power factor
50% 0.77
75% 0.87
100% 0.89
Electric Motors
Frame 444/5TS
Output 125 HP
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 148 A
L. R. Amperes 918 A
LRC 6.2x(Code F)
No load current 37.9 A
Rated torque 221 ft.lb
Locked rotor torque 190 %
Breakdown torque 240 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 33.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 1646 lb
Efficiency
50% 94.0
75% 94.5
100% 95.0
Power factor
50% 0.82
75% 0.87
100% 0.89
Electric Motors
Frame 444/5TS
Output 125 HP
Number of Poles 2
Frequency 50 Hz
Rated speed 2960 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 163 A
L. R. Amperes 848 A
LRC 5.2x(Code D)
No load current 33.6 A
Rated torque 222 ft.lb
Locked rotor torque 160 %
Breakdown torque 200 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 33.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 1646 lb
Efficiency
50% 94.0
75% 94.5
100% 94.5
Power factor
50% 0.85
75% 0.88
100% 0.89
Electric Motors
Frame 444/5TS
Output 125 HP
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 400 V
Rated current 154 A
L. R. Amperes 878 A
LRC 5.7x(Code E)
No load current 36.0 A
Rated torque 221 ft.lb
Locked rotor torque 170 %
Breakdown torque 220 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 33.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 1646 lb
Efficiency
50% 94.0
75% 94.5
100% 94.5
Power factor
50% 0.84
75% 0.88
100% 0.89
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
