Description

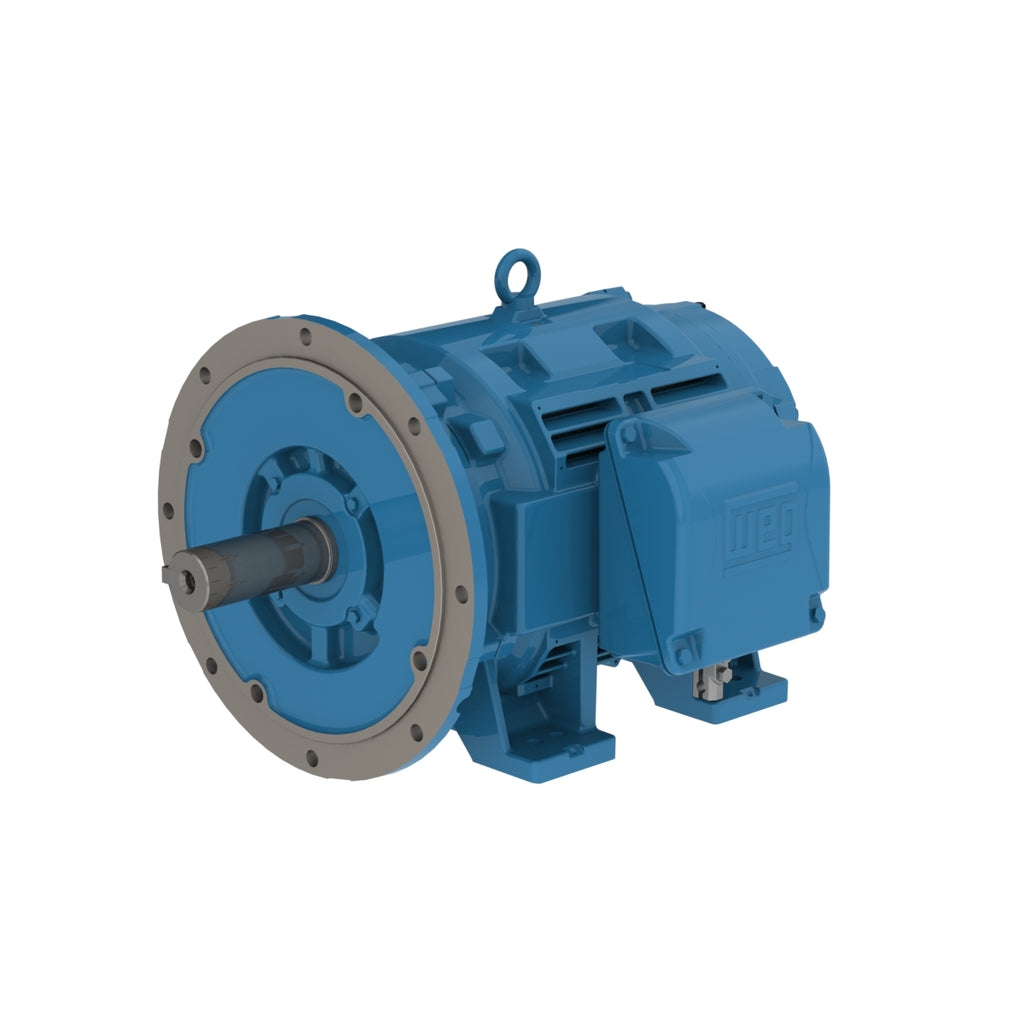

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 460//380 V |
| Number of poles | 4 |
| Degree of Protection | IP23 |
| Synchronous speed | 1800 rpm |
| Output rating | 125 HP |
| Mounting | F-2 |
| Flange | D |
| Terminal box¹ | Right position |
| Enclosure | IC01 - ODP |
Electric Motors
| Frame | 404/5TSD |
|---|---|
| Output | 125 HP |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1780 rpm |
| Slip | 1.11 % |
| Rated voltage | 460 V |
| Rated current | 138 A |
| L. R. Amperes | 952 A |
| LRC | 6.9x(Code G) |
| No load current | 47.0 A |
| Rated torque | 369 ft.lb |
| Locked rotor torque | 270 % |
| Breakdown torque | 260 % |
| Locked rotor time | 18s (cold) 10s (hot) |
| Moment of inertia (J) | 25.5 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 - ODP |
| Mounting | F-2 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 69.0 dB(A) |
| Approx. weight³ | 1067 lb |
Efficiency
| 50% | 95.0 |
|---|---|
| 75% | 95.4 |
| 100% | 95.4 |
Power factor
| 50% | 0.75 |
|---|---|
| 75% | 0.83 |
| 100% | 0.86 |
Electric Motors
| Frame | 404/5TSD |
|---|---|
| Output | 100 HP (75 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1480 rpm |
| Slip | 1.33 % |
| Rated voltage | 380 V |
| Rated current | 138 A |
| L. R. Amperes | 994 A |
| LRC | 7.2x(Code H) |
| No load current | 46.3 A |
| Rated torque | 355 ft.lb |
| Locked rotor torque | 240 % |
| Breakdown torque | 260 % |
| Locked rotor time | 16s (cold) 9s (hot) |
| Moment of inertia (J) | 25.5 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 - ODP |
| Mounting | F-2 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 69.0 dB(A) |
| Approx. weight³ | 1067 lb |
Efficiency
| 50% | 94.6 |
|---|---|
| 75% | 95.0 |
| 100% | 95.0 |
Power factor
| 50% | 0.76 |
|---|---|
| 75% | 0.84 |
| 100% | 0.87 |
Electric Motors
| Frame | 404/5TSD |
|---|---|
| Output | 100 HP (75 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1480 rpm |
| Slip | 1.33 % |
| Rated voltage | 400 V |
| Rated current | 133 A |
| L. R. Amperes | 1024 A |
| LRC | 7.7x(Code H) |
| No load current | 50.2 A |
| Rated torque | 355 ft.lb |
| Locked rotor torque | 270 % |
| Breakdown torque | 300 % |
| Locked rotor time | 16s (cold) 9s (hot) |
| Moment of inertia (J) | 25.5 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 - ODP |
| Mounting | F-2 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 69.0 dB(A) |
| Approx. weight³ | 1067 lb |
Efficiency
| 50% | 94.6 |
|---|---|
| 75% | 95.0 |
| 100% | 95.0 |
Power factor
| 50% | 0.72 |
|---|---|
| 75% | 0.82 |
| 100% | 0.86 |
Electric Motors
| Frame | 404/5TSD |
|---|---|
| Output | 100 HP (75 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1480 rpm |
| Slip | 1.33 % |
| Rated voltage | 415 V |
| Rated current | 129 A |
| L. R. Amperes | 1032 A |
| LRC | 8.0x(Code J) |
| No load current | 53.7 A |
| Rated torque | 355 ft.lb |
| Locked rotor torque | 290 % |
| Breakdown torque | 320 % |
| Locked rotor time | 14s (cold) 8s (hot) |
| Moment of inertia (J) | 25.5 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 - ODP |
| Mounting | F-2 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 69.0 dB(A) |
| Approx. weight³ | 1067 lb |
Efficiency
| 50% | 94.9 |
|---|---|
| 75% | 95.0 |
| 100% | 95.0 |
Power factor
| 50% | 0.69 |
|---|---|
| 75% | 0.80 |
| 100% | 0.85 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Constant Resin Flow |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | NPT 3" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 - C2) |
| Grounding Lugs | Double |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 12 |
