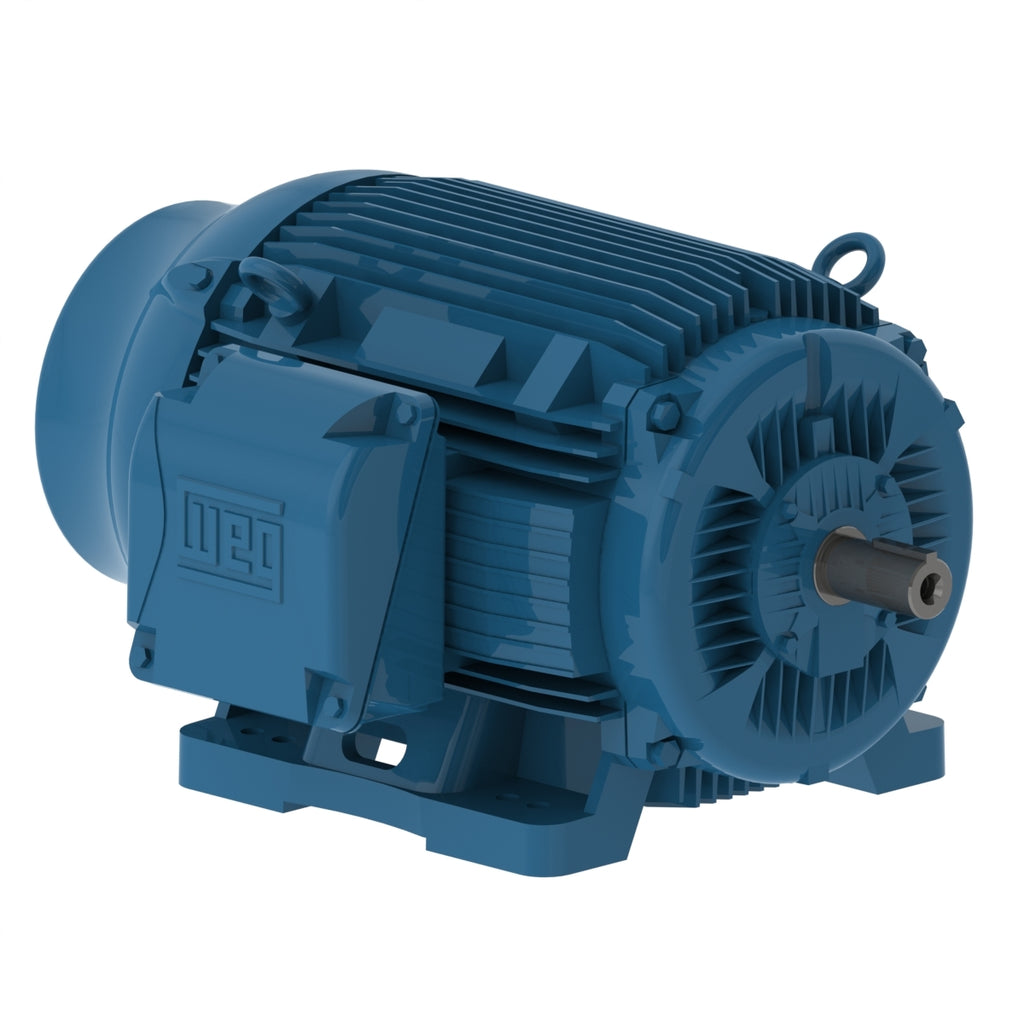

WEG 12518ET3GRB444T-W22 W22 NEMA Premium Efficiency 125 HP 4P 444/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 12518ET3GRB444T-W22 W22 NEMA Premium Efficiency 125 HP 4P 444/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

WEG 12518ET3GRB444T-W22 W22 NEMA Premium Efficiency 125 HP 4P 444/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 12518ET3GRB444T-W22

GTIN : 7894171933426

MPN :

Dropship

Price:
$14,748.00

Description

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 125 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 444/5T
Output 125 HP
Number of Poles 4
Frequency 60 Hz
Rated speed 1785 rpm
Slip 0.83 %
Rated voltage 460 V
Rated current 139 A
L. R. Amperes 904 A
LRC 6.5x(Code G)
No load current 40.0 A
Rated torque 368 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 48s (cold) 27s (hot)
Moment of inertia (J) 57.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 1656 lb
Efficiency
50% 95.0
75% 95.4
100% 95.4
Power factor
50% 0.74
75% 0.82
100% 0.85
Electric Motors
Frame 444/5T
Output 100 HP (75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1485 rpm
Slip 1.00 %
Rated voltage 380 V
Rated current 139 A
L. R. Amperes 890 A
LRC 6.4x(Code G)
No load current 40.0 A
Rated torque 354 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 57.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1656 lb
Efficiency
50% 94.7
75% 95.1
100% 95.0
Power factor
50% 0.73
75% 0.82
100% 0.86
Electric Motors
Frame 444/5T
Output 100 HP (75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1485 rpm
Slip 1.00 %
Rated voltage 400 V
Rated current 136 A
L. R. Amperes 952 A
LRC 7.0x(Code H)
No load current 43.0 A
Rated torque 354 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 57.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1656 lb
Efficiency
50% 94.6
75% 95.1
100% 95.0
Power factor
50% 0.69
75% 0.80
100% 0.84
Electric Motors
Frame 444/5T
Output 100 HP (75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1487 rpm
Slip 0.87 %
Rated voltage 415 V
Rated current 132 A
L. R. Amperes 1003 A
LRC 7.6x(Code J)
No load current 45.0 A
Rated torque 353 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 57.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1656 lb
Efficiency
50% 94.3
75% 95.1
100% 95.2
Power factor
50% 0.67
75% 0.78
100% 0.83
Electric Motors
Frame 444/5T
Output 125 HP
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 380 V
Rated current 168 A
L. R. Amperes 857 A
LRC 5.1x(Code E)
No load current 40.0 A
Rated torque 445 ft.lb
Locked rotor torque 160 %
Breakdown torque 180 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 57.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1656 lb
Efficiency
50% 95.0
75% 95.0
100% 94.5
Power factor
50% 0.79
75% 0.85
100% 0.86
Electric Motors
Frame 444/5T
Output 125 HP
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 160 A
L. R. Amperes 912 A
LRC 5.7x(Code F)
No load current 43.0 A
Rated torque 444 ft.lb
Locked rotor torque 180 %
Breakdown torque 200 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 57.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1656 lb
Efficiency
50% 95.0
75% 95.0
100% 94.5
Power factor
50% 0.76
75% 0.83
100% 0.86
Electric Motors
Frame 444/5T
Output 125 HP
Number of Poles 4
Frequency 50 Hz
Rated speed 1483 rpm
Slip 1.13 %
Rated voltage 415 V
Rated current 155 A
L. R. Amperes 961 A
LRC 6.2x(Code F)
No load current 45.0 A
Rated torque 443 ft.lb
Locked rotor torque 190 %
Breakdown torque 220 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 57.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1656 lb
Efficiency
50% 95.0
75% 95.0
100% 95.0
Power factor
50% 0.74
75% 0.82
100% 0.85
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device With
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
