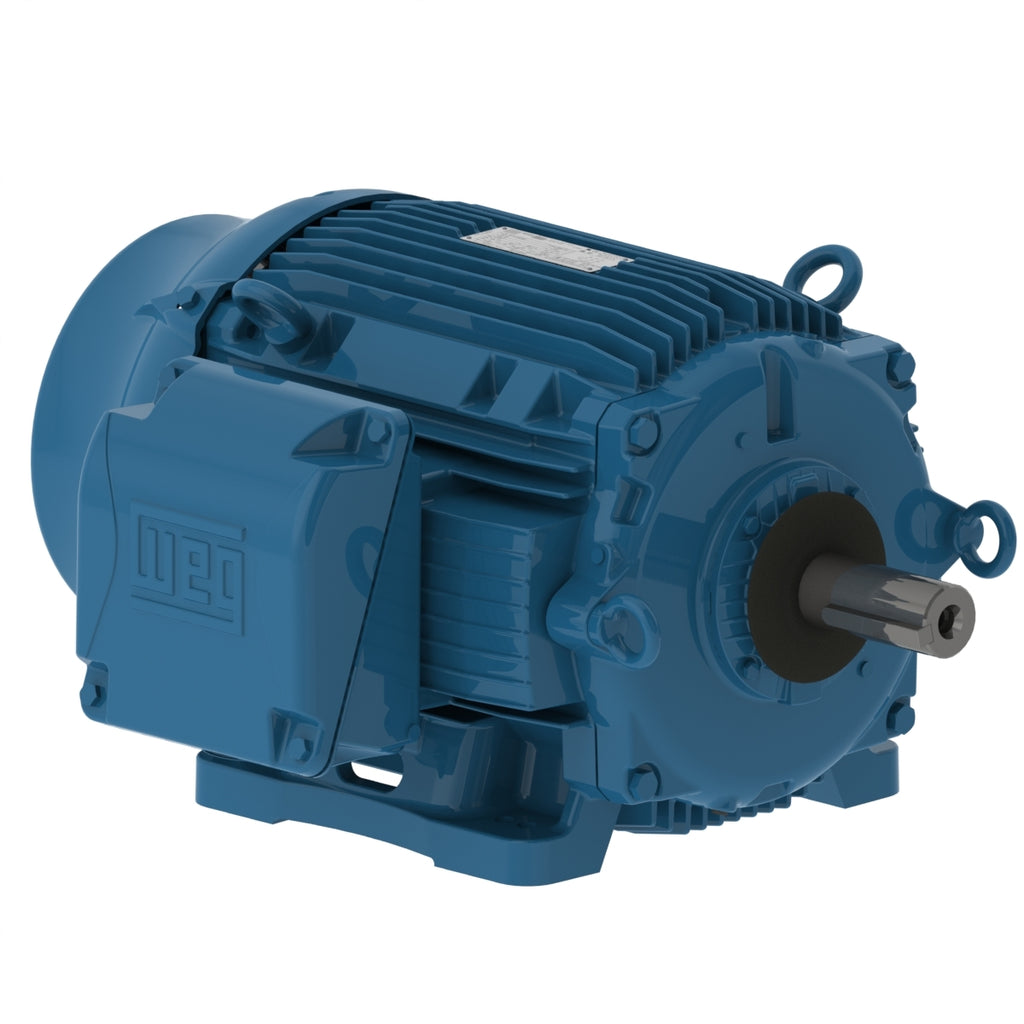

WEG 10089EP3QCT444VF1-W2 W22 Cooling Tower High Efficiency 25/100 HP 8/4P 444/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 10089EP3QCT444VF1-W2 W22 Cooling Tower High Efficiency 25/100 HP 8/4P 444/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

WEG 10089EP3QCT444VF1-W2 W22 Cooling Tower High Efficiency 25/100 HP 8/4P 444/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 10089EP3QCT444VF1-W2

GTIN : 7909018693354

MPN :

Dropship

Price:
$16,398.00

Description

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 8/4
Degree of Protection IP55
Synchronous speed 900/1800 rpm
Output rating 25/100 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC411 - TEFC

Specifications

460 V 60 Hz 4P 460 V 60 Hz 8P

Electric Motors
Frame 444/5T
Output 100 HP (75 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 1785 rpm
Slip 0.83 %
Rated voltage 460 V
Rated current 119 A
L. R. Amperes 952 A
LRC 8.0x(Code J)
No load current 39.0 A
Rated torque 294 ft.lb
Locked rotor torque 240 %
Breakdown torque 300 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 70.5 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
Approx. weight³ 0.0 lb
Efficiency
50% 91.0
75% 93.0
100% 94.1
Power factor
50% 0.70
75% 0.80
100% 0.84
Electric Motors
Frame 444/5T
Output 25 HP (18.5 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 890 rpm
Slip 1.11 %
Rated voltage 460 V
Rated current 44.0 A
L. R. Amperes 207 A
LRC 4.7x(Code H)
No load current 23.0 A
Rated torque 148 ft.lb
Locked rotor torque 180 %
Breakdown torque 190 %
Locked rotor time 90s (cold) 50s (hot)
Moment of inertia (J) 70.5 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 0.0 lb
Efficiency
50% 87.5
75% 90.2
100% 91.0
Power factor
50% 0.42
75% 0.50
100% 0.58
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Space Heater Voltage 110-127/200-240 V
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
