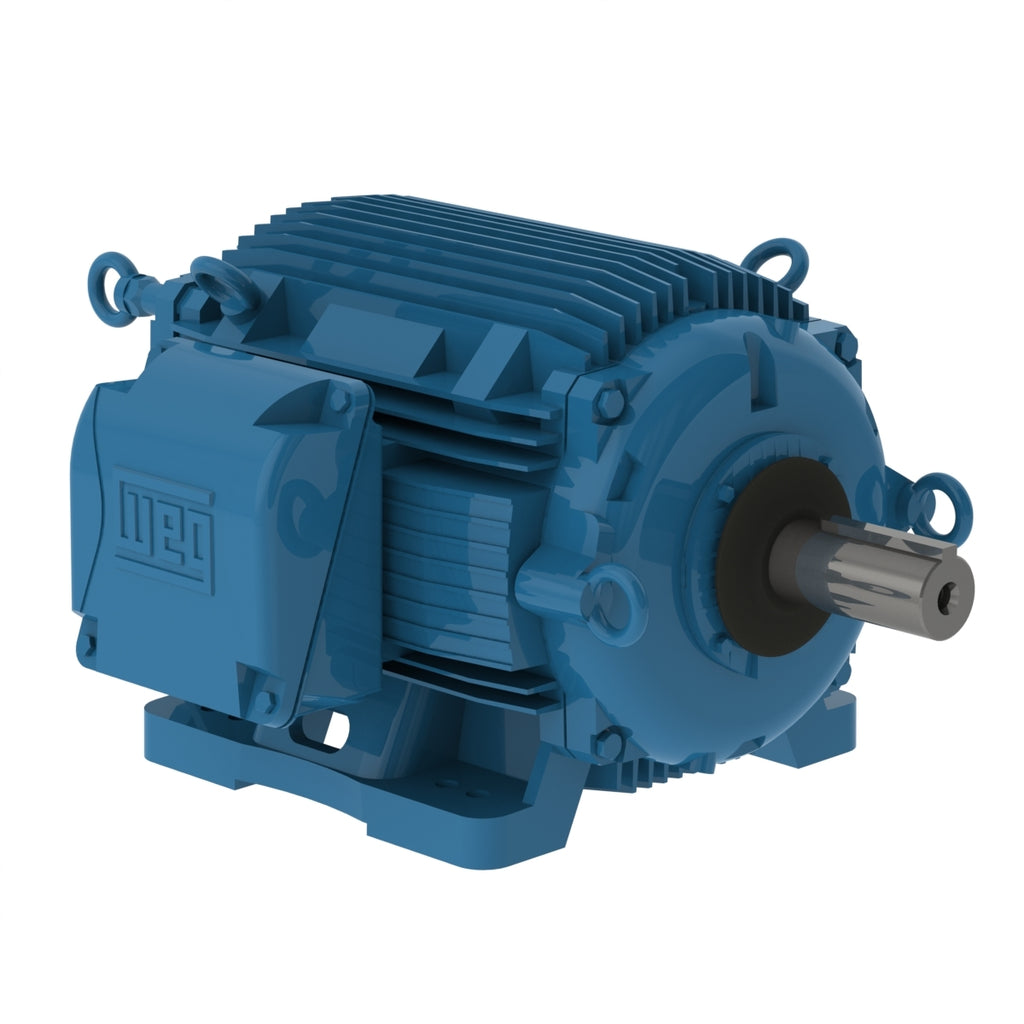

WEG 10018AT3ECT405TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 100 HP 4P 404/5T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 10018AT3ECT405TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 100 HP 4P 404/5T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted

WEG 10018AT3ECT405TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 100 HP 4P 404/5T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted

WEGSKU: 10018AT3ECT405TF1-W2

GTIN :

MPN :

Dropship

Price:
$11,412.00

Description

These TEFC motors are built according to NEMA standard, and designed to operate with 100% of humidity in the most corrosive environments. All the line is certified for use with frequency inverter, and can operate in both the horizontal and vertical position. The Cooling Tower was tested according to the IEEE 112, method B, and it has efficiency values certified by UL (CSA C390). They ensure high efficiency levels with high torque, even at low speeds.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 100 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC410 - TEAO


Electric Motors
Frame 404/5T
Output 100 HP (75 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 208-230/460 V
Rated current 245-226/113 A
L. R. Amperes 1792-1650/825 A
LRC 7.3x(Code H)
No load current 65.5-76.0/38.0 A
Rated torque 295 ft.lb
Locked rotor torque 240 %
Breakdown torque 260 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 29.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 1154 lb
Efficiency
50% 95.0
75% 95.0
100% 95.4
Power factor
50% 0.77
75% 0.84
100% 0.87
Electric Motors
Frame 404/5T
Output 75 HP (55 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1485 rpm
Slip 1.00 %
Rated voltage 380 V
Rated current 102 A
L. R. Amperes 785 A
LRC 7.7x(Code H)
No load current 37.6 A
Rated torque 265 ft.lb
Locked rotor torque 260 %
Breakdown torque 280 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 29.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1154 lb
Efficiency
50% 94.0
75% 94.4
100% 95.0
Power factor
50% 0.72
75% 0.83
100% 0.86
Electric Motors
Frame 404/5T
Output 75 HP (55 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1485 rpm
Slip 1.00 %
Rated voltage 400 V
Rated current 98.3 A
L. R. Amperes 826 A
LRC 8.4x(Code J)
No load current 40.1 A
Rated torque 265 ft.lb
Locked rotor torque 280 %
Breakdown torque 310 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 29.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1154 lb
Efficiency
50% 93.9
75% 94.5
100% 95.0
Power factor
50% 0.69
75% 0.81
100% 0.85
Electric Motors
Frame 404/5T
Output 75 HP (55 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1485 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 95.9 A
L. R. Amperes 854 A
LRC 8.9x(Code K)
No load current 42.0 A
Rated torque 265 ft.lb
Locked rotor torque 290 %
Breakdown torque 330 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 29.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1154 lb
Efficiency
50% 93.6
75% 94.5
100% 95.0
Power factor
50% 0.66
75% 0.79
100% 0.84
Electric Motors
Frame 404/5T
Output 100 HP (75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 138 A
L. R. Amperes 814 A
LRC 5.9x(Code F)
No load current 37.6 A
Rated torque 357 ft.lb
Locked rotor torque 190 %
Breakdown torque 210 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 29.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1154 lb
Efficiency
50% 94.5
75% 94.1
100% 93.6
Power factor
50% 0.82
75% 0.86
100% 0.88
Electric Motors
Frame 404/5T
Output 100 HP (75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 400 V
Rated current 131 A
L. R. Amperes 852 A
LRC 6.5x(Code G)
No load current 40.1 A
Rated torque 356 ft.lb
Locked rotor torque 210 %
Breakdown torque 229 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 29.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1154 lb
Efficiency
50% 94.5
75% 94.5
100% 94.1
Power factor
50% 0.79
75% 0.85
100% 0.88
Electric Motors
Frame 404/5T
Output 100 HP (75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 415 V
Rated current 127 A
L. R. Amperes 902 A
LRC 7.1x(Code H)
No load current 42.0 A
Rated torque 356 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 29.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1154 lb
Efficiency
50% 94.5
75% 94.5
100% 94.5
Power factor
50% 0.77
75% 0.84
100% 0.87
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Without fan
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
