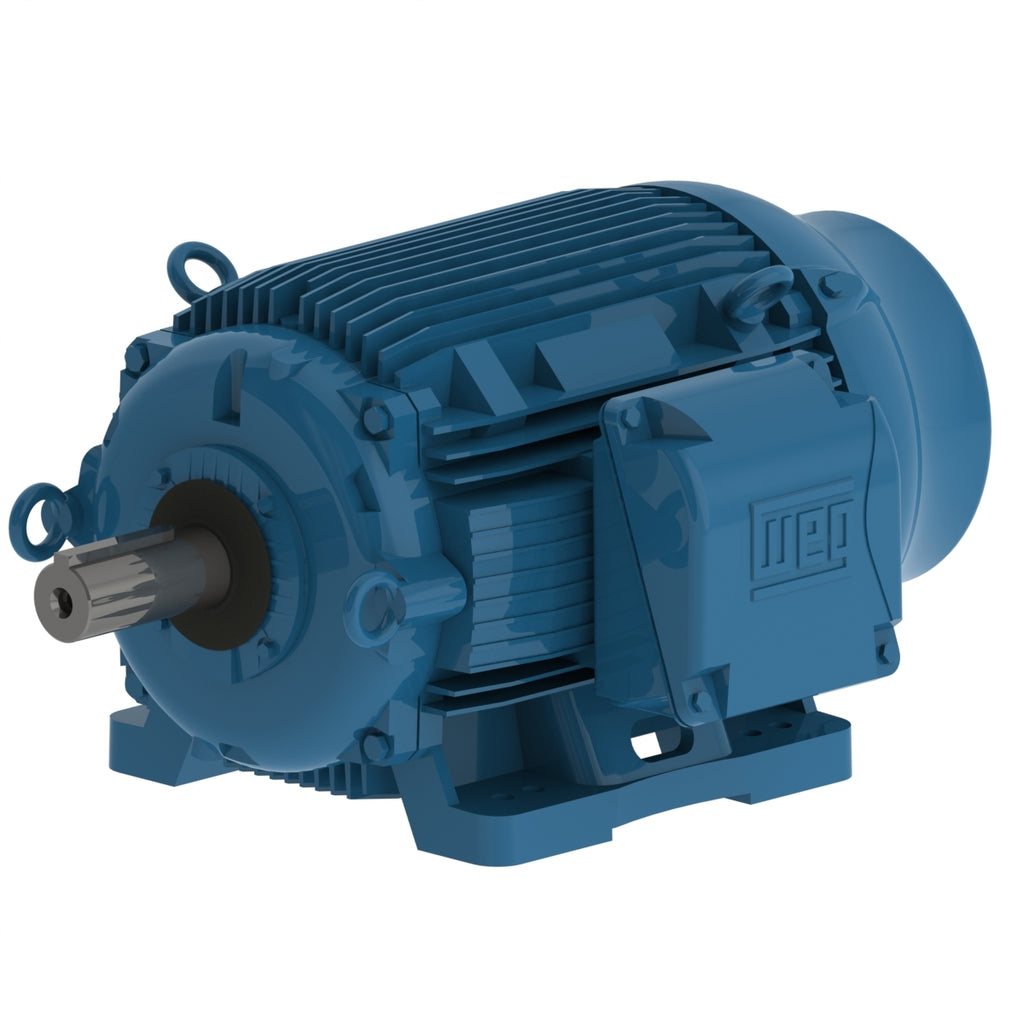

WEG 10012ET3ECT444T-W22 W22 Cooling Tower NEMA Premium Efficiency 100 HP 6P 444/5T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 10012ET3ECT444T-W22 W22 Cooling Tower NEMA Premium Efficiency 100 HP 6P 444/5T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEG 10012ET3ECT444T-W22 W22 Cooling Tower NEMA Premium Efficiency 100 HP 6P 444/5T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 10012ET3ECT444T-W22

GTIN : 7909018508986

MPN :

Dropship

Price:
$17,194.00

Description

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 100 HP
Mounting F-2
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 444/5T
Output 100 HP (75 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1185 rpm
Slip 1.25 %
Rated voltage 230/460 V
Rated current 242/121 A
L. R. Amperes 1500/750 A
LRC 6.2x(Code G)
No load current 90.0/45.0 A
Rated torque 443 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 87.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 0.0 lb
Efficiency
50% 94.5
75% 95.0
100% 95.0
Power factor
50% 0.68
75% 0.78
100% 0.82
Electric Motors
Frame 444/5T
Output 75 HP (55 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 380 V
Rated current 107 A
L. R. Amperes 706 A
LRC 6.6x(Code G)
No load current 45.0 A
Rated torque 400 ft.lb
Locked rotor torque 229 %
Breakdown torque 280 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 87.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 0.0 lb
Efficiency
50% 93.8
75% 94.3
100% 94.2
Power factor
50% 0.64
75% 0.77
100% 0.83
Electric Motors
Frame 444/5T
Output 75 HP (55 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 400 V
Rated current 104 A
L. R. Amperes 749 A
LRC 7.2x(Code H)
No load current 48.0 A
Rated torque 398 ft.lb
Locked rotor torque 250 %
Breakdown torque 310 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 87.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 0.0 lb
Efficiency
50% 93.8
75% 94.6
100% 94.5
Power factor
50% 0.60
75% 0.74
100% 0.81
Electric Motors
Frame 444/5T
Output 75 HP (55 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 102 A
L. R. Amperes 785 A
LRC 7.7x(Code J)
No load current 50.0 A
Rated torque 398 ft.lb
Locked rotor torque 270 %
Breakdown torque 340 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 87.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 0.0 lb
Efficiency
50% 93.7
75% 94.6
100% 94.6
Power factor
50% 0.57
75% 0.71
100% 0.79
Electric Motors
Frame 444/5T
Output 100 HP (75 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 145 A
L. R. Amperes 725 A
LRC 5.0x(Code E)
No load current 45.0 A
Rated torque 536 ft.lb
Locked rotor torque 170 %
Breakdown torque 210 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 87.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 0.0 lb
Efficiency
50% 94.5
75% 94.0
100% 93.6
Power factor
50% 0.74
75% 0.82
100% 0.84
Electric Motors
Frame 444/5T
Output 100 HP (75 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 400 V
Rated current 139 A
L. R. Amperes 765 A
LRC 5.5x(Code F)
No load current 48.0 A
Rated torque 533 ft.lb
Locked rotor torque 190 %
Breakdown torque 229 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 87.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 0.0 lb
Efficiency
50% 94.5
75% 94.5
100% 94.0
Power factor
50% 0.71
75% 0.80
100% 0.83
Electric Motors
Frame 444/5T
Output 100 HP (75 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 135 A
L. R. Amperes 810 A
LRC 6.0x(Code G)
No load current 50.0 A
Rated torque 533 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 87.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 0.0 lb
Efficiency
50% 94.5
75% 94.5
100% 94.0
Power factor
50% 0.68
75% 0.78
100% 0.82
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Space Heater Voltage 110-127/200-240 V
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
