Description

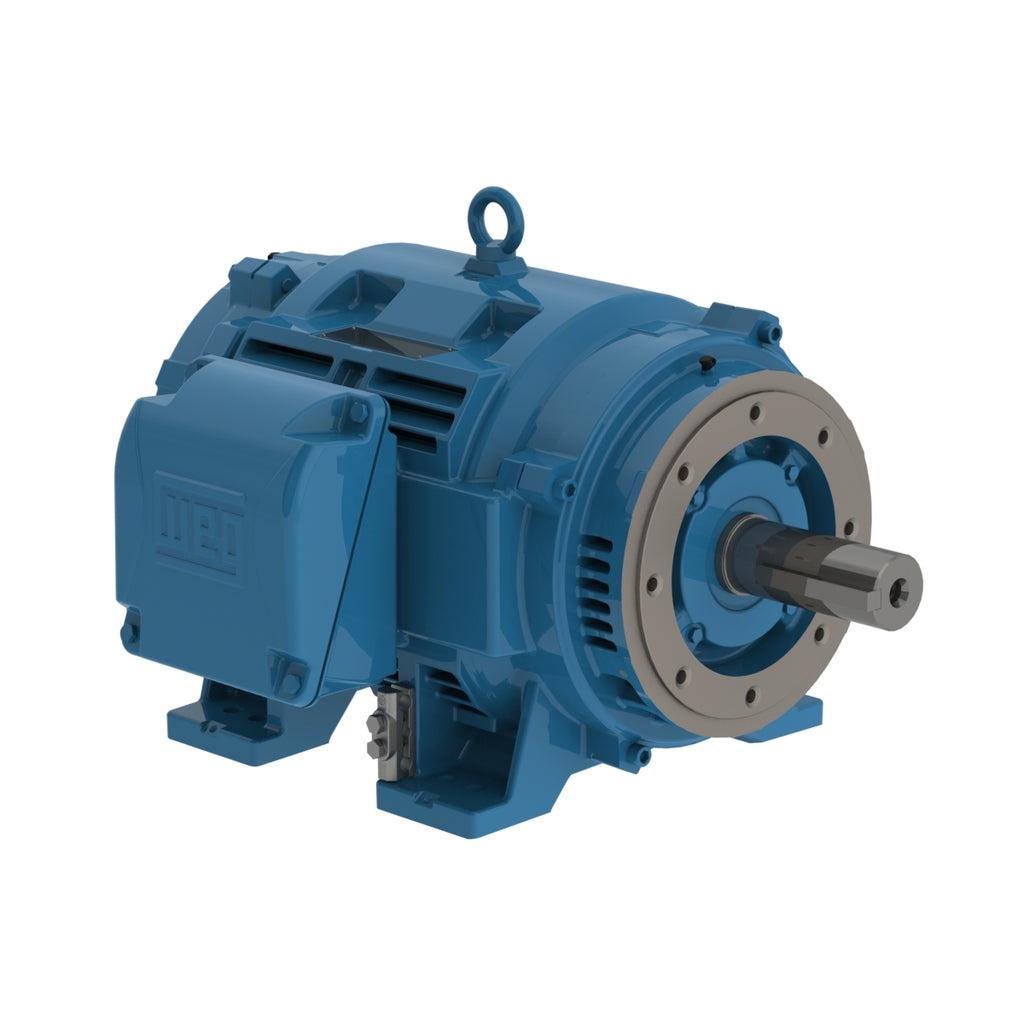

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//380 V |
| Number of poles | 2 |
| Degree of Protection | IP23 |
| Synchronous speed | 3600 rpm |
| Output rating | 75 HP |
| Mounting | F-1 |
| Flange | C |
| Terminal box¹ | Left position |
| Enclosure | IC01 - ODP |
Electric Motors
| Frame | 364/5TSC |
|---|---|
| Output | 75 HP (55 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3555 rpm |
| Slip | 1.25 % |
| Rated voltage | 230/460 V |
| Rated current | 170/84.8 A |
| L. R. Amperes | 1119/560 A |
| LRC | 6.6x(Code G) |
| No load current | 43.0/21.5 A |
| Rated torque | 111 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 250 % |
| Locked rotor time | 34s (cold) 19s (hot) |
| Moment of inertia (J) | 6.40 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 84.0 dB(A) |
| Approx. weight³ | 736 lb |
Efficiency
| 50% | 91.7 |
|---|---|
| 75% | 93.0 |
| 100% | 93.6 |
Power factor
| 50% | 0.77 |
|---|---|
| 75% | 0.84 |
| 100% | 0.87 |
Electric Motors
| Frame | 364/5TSC |
|---|---|
| Output | 60 HP (45 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2955 rpm |
| Slip | 1.50 % |
| Rated voltage | 380 V |
| Rated current | 82.7 A |
| L. R. Amperes | 579 A |
| LRC | 7.0x(Code H) |
| No load current | 20.7 A |
| Rated torque | 107 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 229 % |
| Locked rotor time | 27s (cold) 15s (hot) |
| Moment of inertia (J) | 6.40 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 84.0 dB(A) |
| Approx. weight³ | 736 lb |
Efficiency
| 50% | 91.7 |
|---|---|
| 75% | 92.9 |
| 100% | 94.0 |
Power factor
| 50% | 0.78 |
|---|---|
| 75% | 0.85 |
| 100% | 0.88 |
Electric Motors
| Frame | 364/5TSC |
|---|---|
| Output | 60 HP (45 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2963 rpm |
| Slip | 1.23 % |
| Rated voltage | 400 V |
| Rated current | 79.4 A |
| L. R. Amperes | 588 A |
| LRC | 7.4x(Code H) |
| No load current | 22.7 A |
| Rated torque | 106 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 250 % |
| Locked rotor time | 27s (cold) 15s (hot) |
| Moment of inertia (J) | 6.40 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 84.0 dB(A) |
| Approx. weight³ | 736 lb |
Efficiency
| 50% | 91.4 |
|---|---|
| 75% | 92.8 |
| 100% | 94.0 |
Power factor
| 50% | 0.73 |
|---|---|
| 75% | 0.83 |
| 100% | 0.87 |
Electric Motors
| Frame | 364/5TSC |
|---|---|
| Output | 60 HP (45 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2965 rpm |
| Slip | 1.17 % |
| Rated voltage | 415 V |
| Rated current | 78.4 A |
| L. R. Amperes | 588 A |
| LRC | 7.5x(Code H) |
| No load current | 25.0 A |
| Rated torque | 106 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 280 % |
| Locked rotor time | 27s (cold) 15s (hot) |
| Moment of inertia (J) | 6.40 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 84.0 dB(A) |
| Approx. weight³ | 736 lb |
Efficiency
| 50% | 91.0 |
|---|---|
| 75% | 92.7 |
| 100% | 94.0 |
Power factor
| 50% | 0.69 |
|---|---|
| 75% | 0.80 |
| 100% | 0.85 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Constant Resin Flow |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | NPT 3" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 - C2) |
| Grounding Lugs | Double |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 12 |
