Description

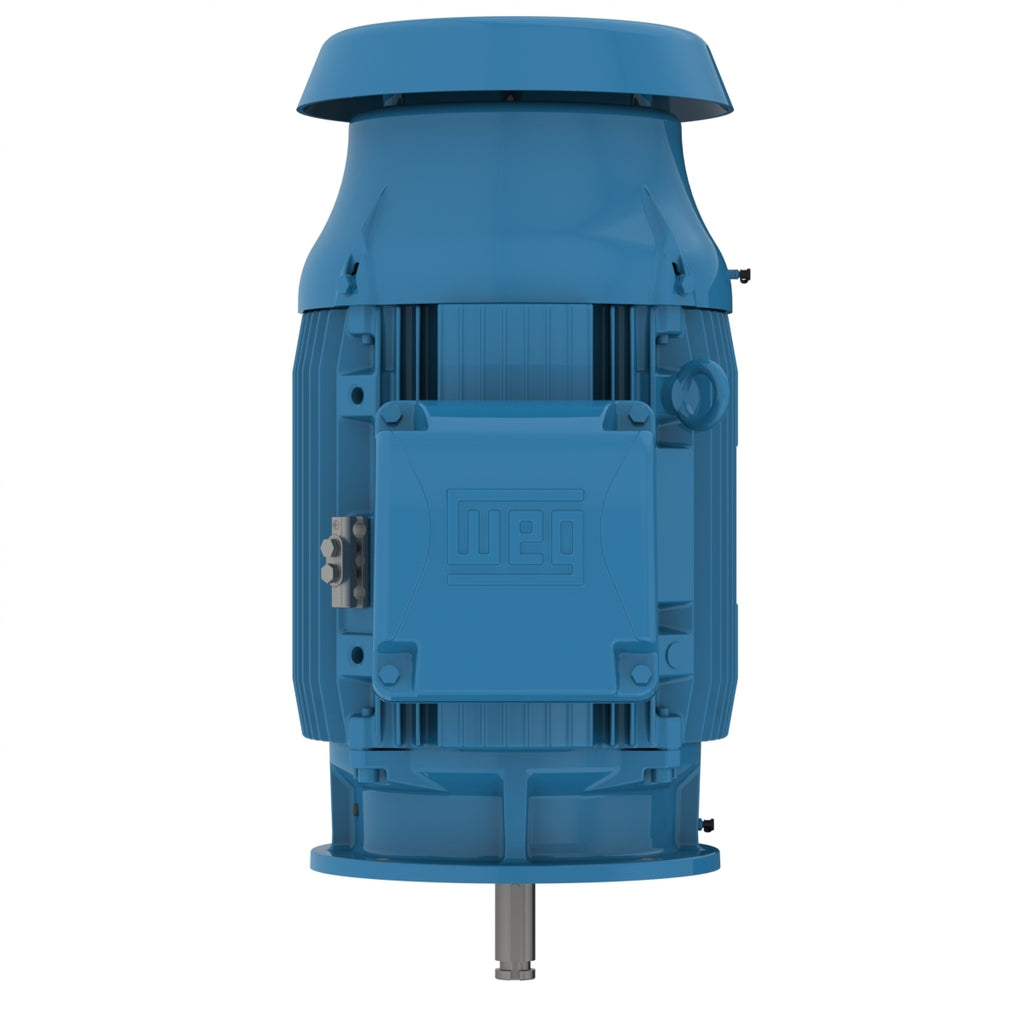

Line of vertical motors with flange type P. For application on irrigation pumps, water treatment, petrochemical industry, among others, in environments with dust and humidity demanding high torque.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230/460 V |
| Number of poles | 2 |
| Degree of Protection | IP55 |
| Synchronous speed | 3600 rpm |
| Output rating | 75 HP |
| Mounting | W-6 |
| Flange | P |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
Specifications
230/460 V 60 Hz 2P 380 V 50 Hz 2P IE3 400 V 50 Hz 2P IE3 415 V 50 Hz 2P IE3 380 V 50 Hz 2P IE1 400 V 50 Hz 2P IE1 415 V 50 Hz 2P IE1Electric Motors
| Frame | 364/5HP |
|---|---|
| Output | 75 HP (55 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3555 rpm |
| Slip | 1.25 % |
| Rated voltage | 230/460 V |
| Rated current | 164/81.9 A |
| L. R. Amperes | 1097/549 A |
| LRC | 6.7x(Code G) |
| No load current | 40.0/20.0 A |
| Rated torque | 111 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 250 % |
| Locked rotor time | 18s (cold) 10s (hot) |
| Moment of inertia (J) | 11.9 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 79.0 dB(A) |
| Approx. weight³ | 888 lb |
Efficiency
| 50% | 92.4 |
|---|---|
| 75% | 93.6 |
| 100% | 93.6 |
Power factor
| 50% | 0.83 |
|---|---|
| 75% | 0.88 |
| 100% | 0.90 |
Electric Motors
| Frame | 364/5HP |
|---|---|
| Output | 60 HP (45 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2955 rpm |
| Slip | 1.50 % |
| Rated voltage | 380 V |
| Rated current | 80.8 A |
| L. R. Amperes | 525 A |
| LRC | 6.5x(Code G) |
| No load current | 19.0 A |
| Rated torque | 107 ft.lb |
| Locked rotor torque | 210 % |
| Breakdown torque | 260 % |
| Locked rotor time | 39s (cold) 22s (hot) |
| Moment of inertia (J) | 11.9 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 74.0 dB(A) |
| Approx. weight³ | 888 lb |
Efficiency
| 50% | 91.2 |
|---|---|
| 75% | 92.5 |
| 100% | 94.0 |
Power factor
| 50% | 0.75 |
|---|---|
| 75% | 0.85 |
| 100% | 0.90 |
Electric Motors
| Frame | 364/5HP |
|---|---|
| Output | 60 HP (45 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2960 rpm |
| Slip | 1.33 % |
| Rated voltage | 400 V |
| Rated current | 78.5 A |
| L. R. Amperes | 557 A |
| LRC | 7.1x(Code H) |
| No load current | 20.0 A |
| Rated torque | 106 ft.lb |
| Locked rotor torque | 229 % |
| Breakdown torque | 390 % |
| Locked rotor time | 39s (cold) 22s (hot) |
| Moment of inertia (J) | 11.9 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 74.0 dB(A) |
| Approx. weight³ | 888 lb |
Efficiency
| 50% | 91.5 |
|---|---|
| 75% | 93.0 |
| 100% | 94.0 |
Power factor
| 50% | 0.72 |
|---|---|
| 75% | 0.83 |
| 100% | 0.88 |
Electric Motors
| Frame | 364/5HP |
|---|---|
| Output | 60 HP (45 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2965 rpm |
| Slip | 1.17 % |
| Rated voltage | 415 V |
| Rated current | 75.7 A |
| L. R. Amperes | 598 A |
| LRC | 7.9x(Code J) |
| No load current | 21.5 A |
| Rated torque | 106 ft.lb |
| Locked rotor torque | 250 % |
| Breakdown torque | 310 % |
| Locked rotor time | 37s (cold) 21s (hot) |
| Moment of inertia (J) | 11.9 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 74.0 dB(A) |
| Approx. weight³ | 888 lb |
Efficiency
| 50% | 91.8 |
|---|---|
| 75% | 93.1 |
| 100% | 94.0 |
Power factor
| 50% | 0.70 |
|---|---|
| 75% | 0.82 |
| 100% | 0.88 |
Electric Motors
| Frame | 364/5HP |
|---|---|
| Output | 75 HP (55 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2930 rpm |
| Slip | 2.33 % |
| Rated voltage | 380 V |
| Rated current | 100 A |
| L. R. Amperes | 520 A |
| LRC | 5.2x(Code E) |
| No load current | 19.0 A |
| Rated torque | 134 ft.lb |
| Locked rotor torque | 160 % |
| Breakdown torque | 200 % |
| Locked rotor time | 12s (cold) 7s (hot) |
| Moment of inertia (J) | 11.9 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 74.0 dB(A) |
| Approx. weight³ | 888 lb |
Efficiency
| 50% | 92.4 |
|---|---|
| 75% | 93.0 |
| 100% | 92.4 |
Power factor
| 50% | 0.86 |
|---|---|
| 75% | 0.89 |
| 100% | 0.90 |
Electric Motors
| Frame | 364/5HP |
|---|---|
| Output | 75 HP (55 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2945 rpm |
| Slip | 1.83 % |
| Rated voltage | 400 V |
| Rated current | 94.8 A |
| L. R. Amperes | 559 A |
| LRC | 5.9x(Code F) |
| No load current | 20.0 A |
| Rated torque | 134 ft.lb |
| Locked rotor torque | 175 % |
| Breakdown torque | 220 % |
| Locked rotor time | 12s (cold) 7s (hot) |
| Moment of inertia (J) | 11.9 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 74.0 dB(A) |
| Approx. weight³ | 888 lb |
Efficiency
| 50% | 92.4 |
|---|---|
| 75% | 93.0 |
| 100% | 93.0 |
Power factor
| 50% | 0.84 |
|---|---|
| 75% | 0.89 |
| 100% | 0.90 |
Electric Motors
| Frame | 364/5HP |
|---|---|
| Output | 75 HP (55 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2950 rpm |
| Slip | 1.67 % |
| Rated voltage | 415 V |
| Rated current | 91.4 A |
| L. R. Amperes | 594 A |
| LRC | 6.5x(Code G) |
| No load current | 21.5 A |
| Rated torque | 134 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 240 % |
| Locked rotor time | 12s (cold) 7s (hot) |
| Moment of inertia (J) | 11.9 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 74.0 dB(A) |
| Approx. weight³ | 888 lb |
Efficiency
| 50% | 93.0 |
|---|---|
| 75% | 93.6 |
| 100% | 93.0 |
Power factor
| 50% | 0.83 |
|---|---|
| 75% | 0.88 |
| 100% | 0.90 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Constant Resin Flow |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | NPT 3" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 - C2) |
| Grounding Lugs | Double |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | With |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 12 |
