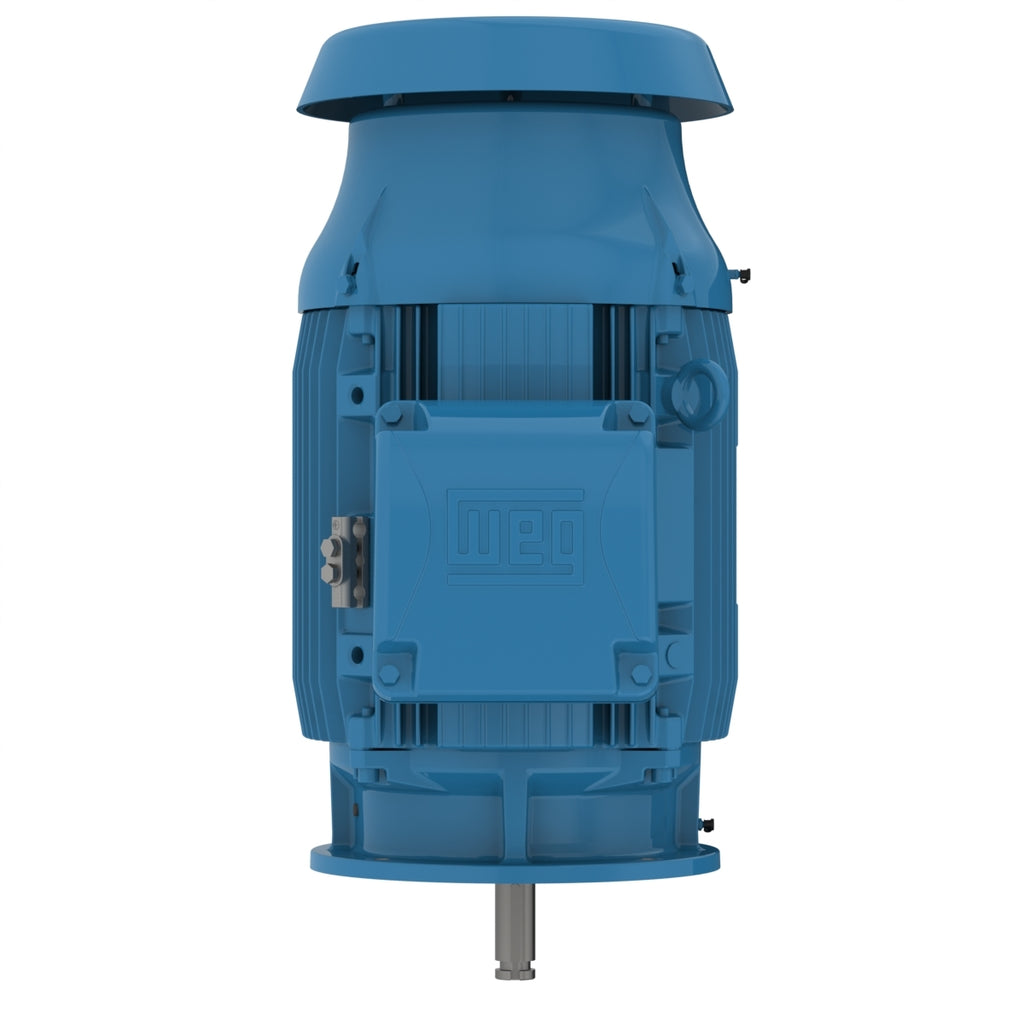

WEG 07518ET3E365HP-W22 W22 P Base NEMA Premium Efficiency 75 HP 4P 364/5HP 3Ph 230/460 V 60 Hz IC411 - TEFC - Footless
Roll over image to zoom in Click on image to zoom
WEG 07518ET3E365HP-W22 W22 P Base NEMA Premium Efficiency 75 HP 4P 364/5HP 3Ph 230/460 V 60 Hz IC411 - TEFC - Footless

WEG 07518ET3E365HP-W22 W22 P Base NEMA Premium Efficiency 75 HP 4P 364/5HP 3Ph 230/460 V 60 Hz IC411 - TEFC - Footless

WEGSKU: 07518ET3E365HP-W22

GTIN : 7909265382025

MPN :

Dropship

Price:
$9,352.00

Description

Line of vertical motors with flange type P. For application on irrigation pumps, water treatment, petrochemical industry, among others, in environments with dust and humidity demanding high torque.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 75 HP
Mounting W-6
Flange P
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 364/5HP
Output 75 HP (55 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 230/460 V
Rated current 174/87.2 A
L. R. Amperes 1116/558 A
LRC 6.4x(Code G)
No load current 66.0/33.0 A
Rated torque 221 ft.lb
Locked rotor torque 240 %
Breakdown torque 260 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 23.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 952 lb
Efficiency
50% 94.5
75% 95.0
100% 95.4
Power factor
50% 0.68
75% 0.78
100% 0.83
Electric Motors
Frame 364/5HP
Output 60 HP (45 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 88.5 A
L. R. Amperes 620 A
LRC 7.0x(Code H)
No load current 33.0 A
Rated torque 213 ft.lb
Locked rotor torque 210 %
Breakdown torque 250 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 23.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 952 lb
Efficiency
50% 93.7
75% 94.2
100% 94.2
Power factor
50% 0.68
75% 0.78
100% 0.82
Electric Motors
Frame 364/5HP
Output 60 HP (45 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 84.9 A
L. R. Amperes 637 A
LRC 7.5x(Code J)
No load current 35.0 A
Rated torque 213 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 23.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 952 lb
Efficiency
50% 93.6
75% 94.2
100% 94.4
Power factor
50% 0.64
75% 0.75
100% 0.81
Electric Motors
Frame 364/5HP
Output 60 HP (45 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1485 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 82.7 A
L. R. Amperes 662 A
LRC 8.0x(Code J)
No load current 38.0 A
Rated torque 212 ft.lb
Locked rotor torque 260 %
Breakdown torque 310 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 23.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 952 lb
Efficiency
50% 93.5
75% 94.2
100% 94.6
Power factor
50% 0.61
75% 0.73
100% 0.80
Electric Motors
Frame 364/5HP
Output 75 HP (55 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 106 A
L. R. Amperes 541 A
LRC 5.1x(Code E)
No load current 33.0 A
Rated torque 268 ft.lb
Locked rotor torque 170 %
Breakdown torque 200 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 23.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 952 lb
Efficiency
50% 94.5
75% 94.1
100% 93.6
Power factor
50% 0.75
75% 0.82
100% 0.84
Electric Motors
Frame 364/5HP
Output 75 HP (55 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 400 V
Rated current 102 A
L. R. Amperes 571 A
LRC 5.6x(Code F)
No load current 35.0 A
Rated torque 267 ft.lb
Locked rotor torque 200 %
Breakdown torque 220 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 23.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 952 lb
Efficiency
50% 94.5
75% 94.5
100% 94.1
Power factor
50% 0.70
75% 0.80
100% 0.83
Electric Motors
Frame 364/5HP
Output 75 HP (55 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 98.7 A
L. R. Amperes 602 A
LRC 6.1x(Code G)
No load current 38.0 A
Rated torque 266 ft.lb
Locked rotor torque 210 %
Breakdown torque 240 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 23.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 952 lb
Efficiency
50% 94.1
75% 94.5
100% 94.5
Power factor
50% 0.67
75% 0.78
100% 0.82
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover With
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
