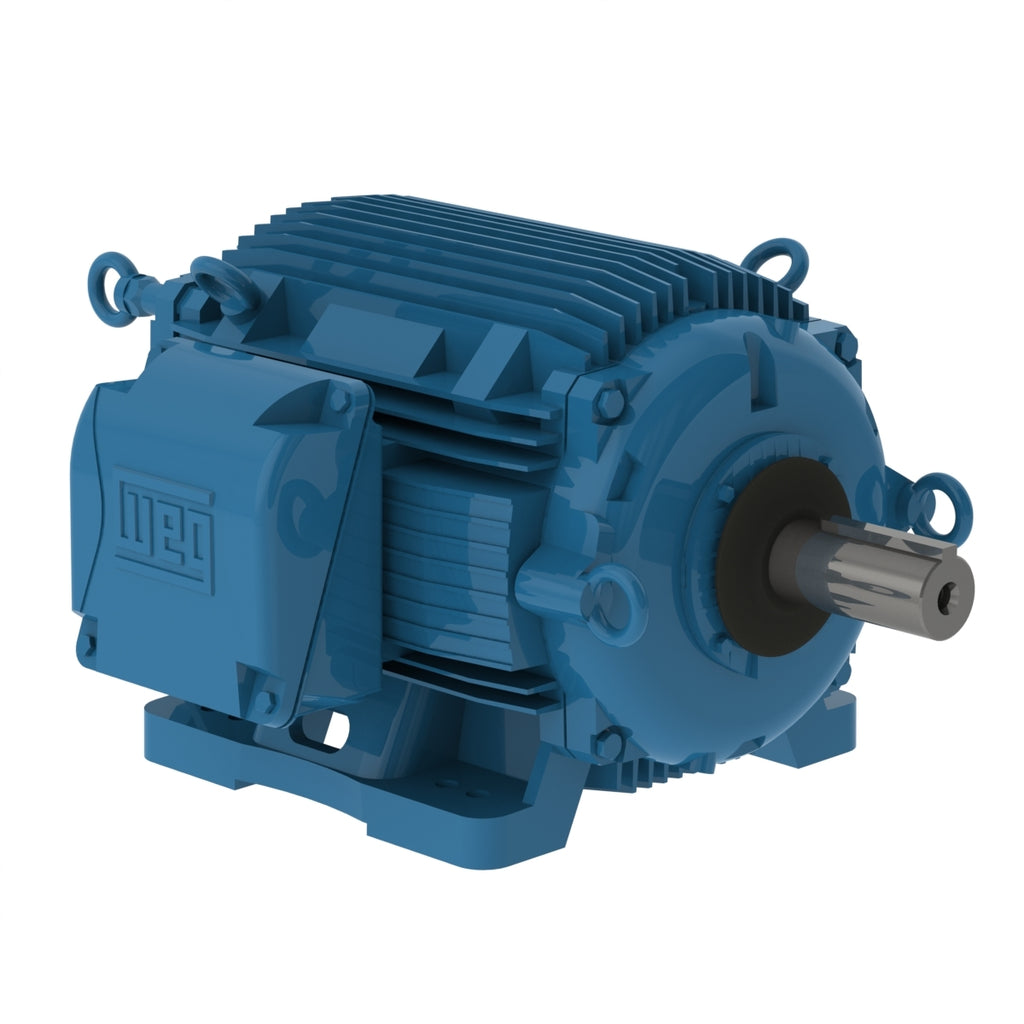

WEG 07512AT3ECT405TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 75 HP 6P 404/5T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 07512AT3ECT405TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 75 HP 6P 404/5T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted

WEG 07512AT3ECT405TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 75 HP 6P 404/5T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted

WEGSKU: 07512AT3ECT405TF1-W2

GTIN :

MPN :

Dropship

Price:
$12,026.00

Description

These TEFC motors are built according to NEMA standard, and designed to operate with 100% of humidity in the most corrosive environments. All the line is certified for use with frequency inverter, and can operate in both the horizontal and vertical position. The Cooling Tower was tested according to the IEEE 112, method B, and it has efficiency values certified by UL (CSA C390). They ensure high efficiency levels with high torque, even at low speeds.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 75 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC410 - TEAO


Electric Motors
Frame 404/5T
Output 75 HP (55 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1184 rpm
Slip 1.33 %
Rated voltage 208-230/460 V
Rated current 188-170/84.9 A
L. R. Amperes 1202-1087/543 A
LRC 6.4x(Code G)
No load current 51.7-60.0/30.0 A
Rated torque 333 ft.lb
Locked rotor torque 229 %
Breakdown torque 229 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 40.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 1167 lb
Efficiency
50% 94.1
75% 94.5
100% 94.5
Power factor
50% 0.74
75% 0.83
100% 0.86
Electric Motors
Frame 404/5T
Output 60 HP (45 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 380 V
Rated current 85.5 A
L. R. Amperes 547 A
LRC 6.4x(Code G)
No load current 29.7 A
Rated torque 320 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 61s (cold) 34s (hot)
Moment of inertia (J) 40.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1167 lb
Efficiency
50% 93.5
75% 94.0
100% 94.1
Power factor
50% 0.66
75% 0.79
100% 0.85
Electric Motors
Frame 404/5T
Output 60 HP (45 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 400 V
Rated current 83.2 A
L. R. Amperes 574 A
LRC 6.9x(Code H)
No load current 31.8 A
Rated torque 320 ft.lb
Locked rotor torque 240 %
Breakdown torque 270 %
Locked rotor time 57s (cold) 32s (hot)
Moment of inertia (J) 40.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1167 lb
Efficiency
50% 93.5
75% 94.0
100% 94.1
Power factor
50% 0.62
75% 0.75
100% 0.83
Electric Motors
Frame 404/5T
Output 60 HP (45 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 82.1 A
L. R. Amperes 599 A
LRC 7.3x(Code J)
No load current 33.5 A
Rated torque 320 ft.lb
Locked rotor torque 270 %
Breakdown torque 290 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 40.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1167 lb
Efficiency
50% 93.5
75% 94.0
100% 94.1
Power factor
50% 0.60
75% 0.74
100% 0.81
Electric Motors
Frame 404/5T
Output 75 HP (55 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 978 rpm
Slip 2.20 %
Rated voltage 380 V
Rated current 104 A
L. R. Amperes 541 A
LRC 5.2x(Code E)
No load current 29.7 A
Rated torque 403 ft.lb
Locked rotor torque 170 %
Breakdown torque 180 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 40.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1167 lb
Efficiency
50% 91.8
75% 92.2
100% 92.4
Power factor
50% 0.79
75% 0.85
100% 0.87
Electric Motors
Frame 404/5T
Output 75 HP (55 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 981 rpm
Slip 1.90 %
Rated voltage 400 V
Rated current 99.3 A
L. R. Amperes 566 A
LRC 5.7x(Code F)
No load current 31.8 A
Rated torque 401 ft.lb
Locked rotor torque 190 %
Breakdown torque 200 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 40.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1167 lb
Efficiency
50% 92.4
75% 92.8
100% 93.0
Power factor
50% 0.76
75% 0.84
100% 0.86
Electric Motors
Frame 404/5T
Output 75 HP (55 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 983 rpm
Slip 1.70 %
Rated voltage 415 V
Rated current 95.7 A
L. R. Amperes 593 A
LRC 6.2x(Code G)
No load current 33.5 A
Rated torque 401 ft.lb
Locked rotor torque 210 %
Breakdown torque 220 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 40.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1167 lb
Efficiency
50% 92.4
75% 92.8
100% 93.0
Power factor
50% 0.74
75% 0.83
100% 0.86
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Without fan
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
Downloads
