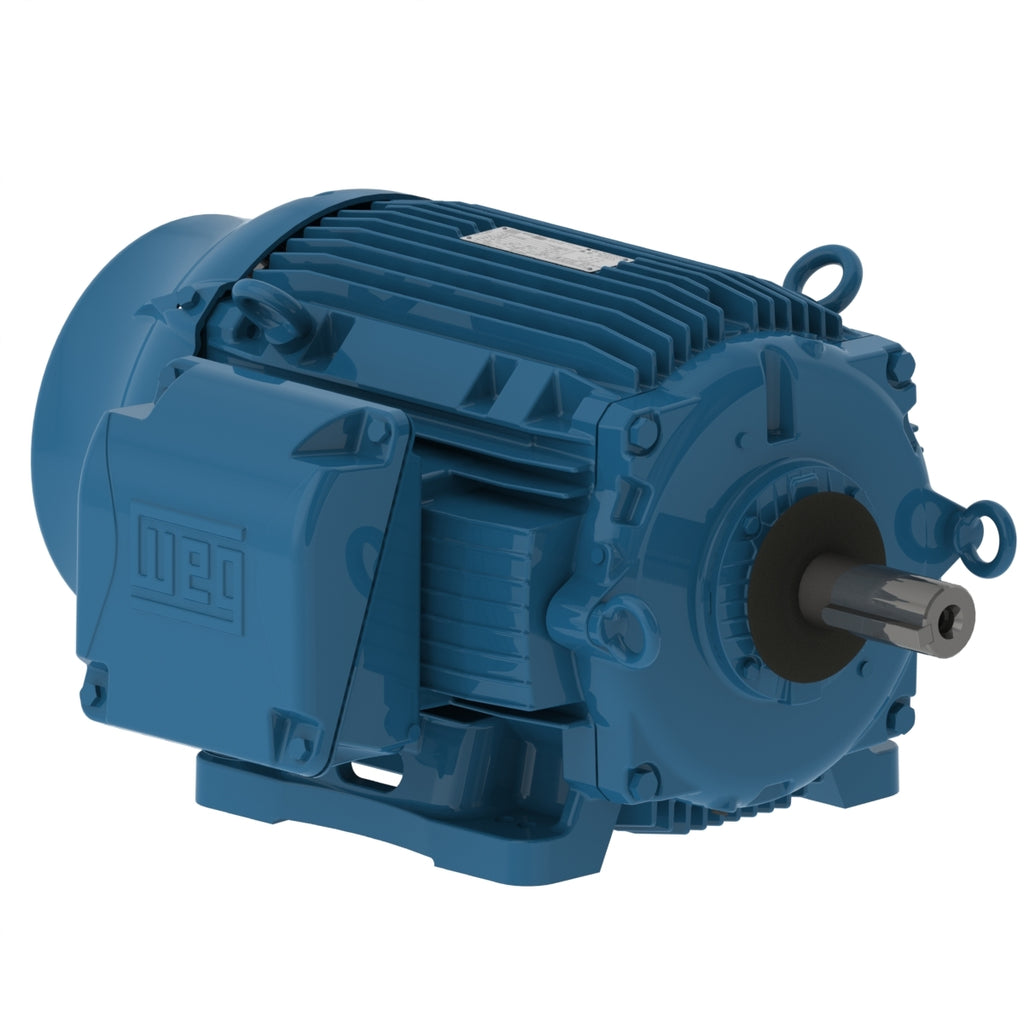

WEG 06089EP3PCT365VF1-W2 W22 Cooling Tower High Efficiency 15/60 HP 8/4P 364/5T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 06089EP3PCT365VF1-W2 W22 Cooling Tower High Efficiency 15/60 HP 8/4P 364/5T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted

WEG 06089EP3PCT365VF1-W2 W22 Cooling Tower High Efficiency 15/60 HP 8/4P 364/5T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 06089EP3PCT365VF1-W2

GTIN : 7909018682020

MPN :

Dropship

Price:
$11,068.00

Description

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200 V
Number of poles 8/4
Degree of Protection IP55
Synchronous speed 900/1800 rpm
Output rating 15/60 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC411 - TEFC

Specifications

200 V 60 Hz 4P 200 V 60 Hz 8P

Electric Motors
Frame 364/5T
Output 60 HP (45 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 200 V
Rated current 166 A
L. R. Amperes 1330 A
LRC 8.0x(Code J)
No load current 75.0 A
Rated torque 177 ft.lb
Locked rotor torque 250 %
Breakdown torque 320 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 23.3 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 71.0 dB(A)
Approx. weight³ 2.2 lb
Efficiency
50% 91.0
75% 92.4
100% 93.0
Power factor
50% 0.69
75% 0.79
100% 0.84
Electric Motors
Frame 364/5T
Output 15 HP (11 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 885 rpm
Slip 1.67 %
Rated voltage 200 V
Rated current 58.2 A
L. R. Amperes 256 A
LRC 4.4x(Code G)
No load current 41.4 A
Rated torque 89.0 ft.lb
Locked rotor torque 210 %
Breakdown torque 210 %
Locked rotor time 82s (cold) 46s (hot)
Moment of inertia (J) 23.3 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 2.2 lb
Efficiency
50% 86.5
75% 88.5
100% 89.5
Power factor
50% 0.42
75% 0.55
100% 0.61
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
