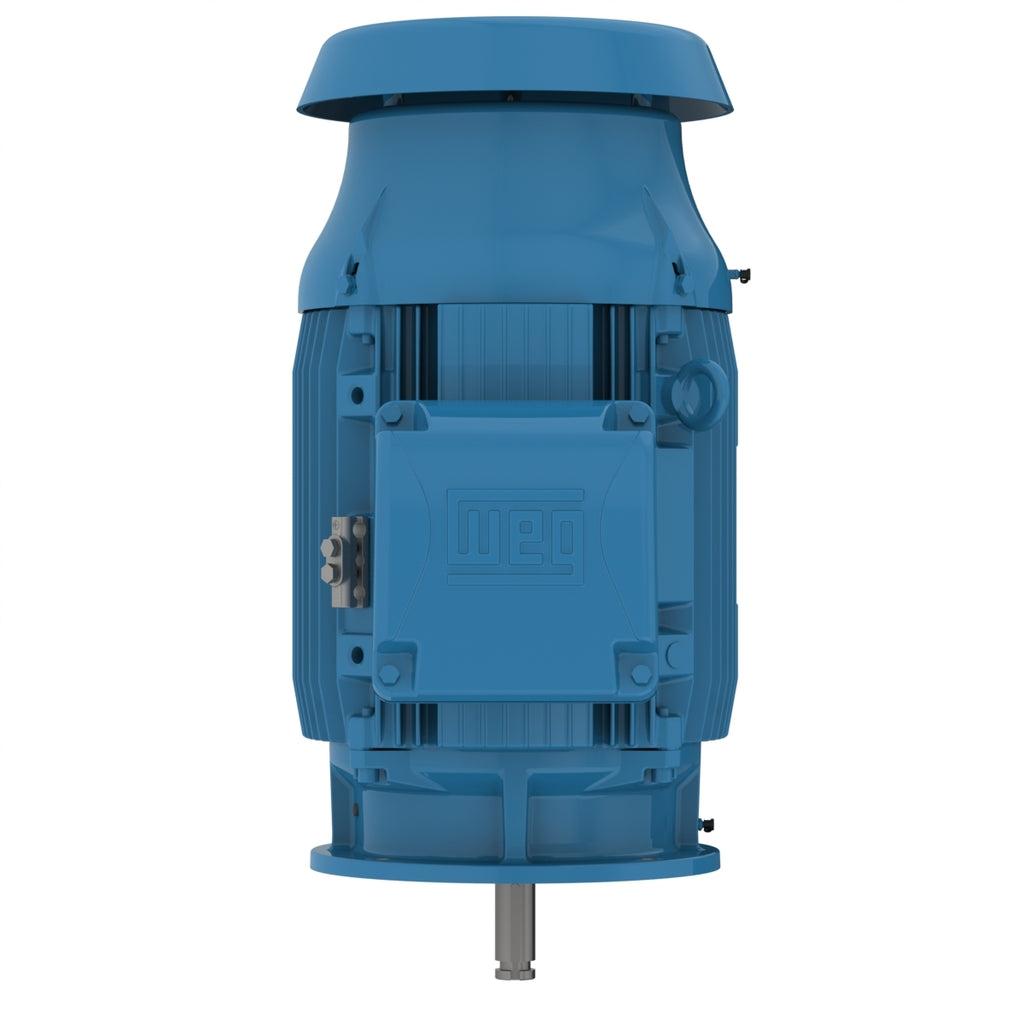

WEG 06018ET3E364HP-W22 W22 P Base NEMA Premium Efficiency 60 HP 4P 364/5HP 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless
Roll over image to zoom in Click on image to zoom
WEG 06018ET3E364HP-W22 W22 P Base NEMA Premium Efficiency 60 HP 4P 364/5HP 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless

WEG 06018ET3E364HP-W22 W22 P Base NEMA Premium Efficiency 60 HP 4P 364/5HP 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless

WEGSKU: 06018ET3E364HP-W22

GTIN : 7909265060992

MPN :

Dropship

Price:
$8,525.00

Description

Line of vertical motors with flange type P. For application on irrigation pumps, water treatment, petrochemical industry, among others, in environments with dust and humidity demanding high torque.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 60 HP
Mounting W-6
Flange P
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 364/5HP
Output 60 HP (45 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 230/460 V
Rated current 143/71.6 A
L. R. Amperes 888/444 A
LRC 6.2x(Code G)
No load current 56.0/28.0 A
Rated torque 177 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 22.4 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 893 lb
Efficiency
50% 94.1
75% 94.5
100% 95.0
Power factor
50% 0.71
75% 0.80
100% 0.83
Electric Motors
Frame 364/5HP
Output 50 HP (37 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 71.0 A
L. R. Amperes 447 A
LRC 6.3x(Code G)
No load current 27.6 A
Rated torque 177 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 22.4 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 893 lb
Efficiency
50% 93.7
75% 93.9
100% 94.2
Power factor
50% 0.71
75% 0.80
100% 0.84
Electric Motors
Frame 364/5HP
Output 50 HP (37 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1482 rpm
Slip 1.20 %
Rated voltage 400 V
Rated current 69.1 A
L. R. Amperes 477 A
LRC 6.9x(Code H)
No load current 29.8 A
Rated torque 177 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 22.4 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 893 lb
Efficiency
50% 93.3
75% 93.9
100% 94.2
Power factor
50% 0.68
75% 0.78
100% 0.82
Electric Motors
Frame 364/5HP
Output 50 HP (37 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1484 rpm
Slip 1.07 %
Rated voltage 415 V
Rated current 67.4 A
L. R. Amperes 499 A
LRC 7.4x(Code J)
No load current 31.6 A
Rated torque 177 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 22.4 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 893 lb
Efficiency
50% 93.4
75% 94.2
100% 94.3
Power factor
50% 0.65
75% 0.76
100% 0.81
Electric Motors
Frame 364/5HP
Output 60 HP (45 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 86.5 A
L. R. Amperes 450 A
LRC 5.2x(Code E)
No load current 27.6 A
Rated torque 214 ft.lb
Locked rotor torque 160 %
Breakdown torque 200 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 22.4 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 893 lb
Efficiency
50% 94.1
75% 93.6
100% 93.0
Power factor
50% 0.76
75% 0.82
100% 0.85
Electric Motors
Frame 364/5HP
Output 60 HP (45 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 400 V
Rated current 82.6 A
L. R. Amperes 479 A
LRC 5.8x(Code F)
No load current 29.8 A
Rated torque 214 ft.lb
Locked rotor torque 180 %
Breakdown torque 210 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 22.4 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 893 lb
Efficiency
50% 94.1
75% 93.6
100% 93.6
Power factor
50% 0.73
75% 0.81
100% 0.84
Electric Motors
Frame 364/5HP
Output 60 HP (45 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1477 rpm
Slip 1.53 %
Rated voltage 415 V
Rated current 80.2 A
L. R. Amperes 497 A
LRC 6.2x(Code G)
No load current 31.6 A
Rated torque 213 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 22.4 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 893 lb
Efficiency
50% 94.1
75% 94.1
100% 94.1
Power factor
50% 0.70
75% 0.80
100% 0.83
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover With
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
