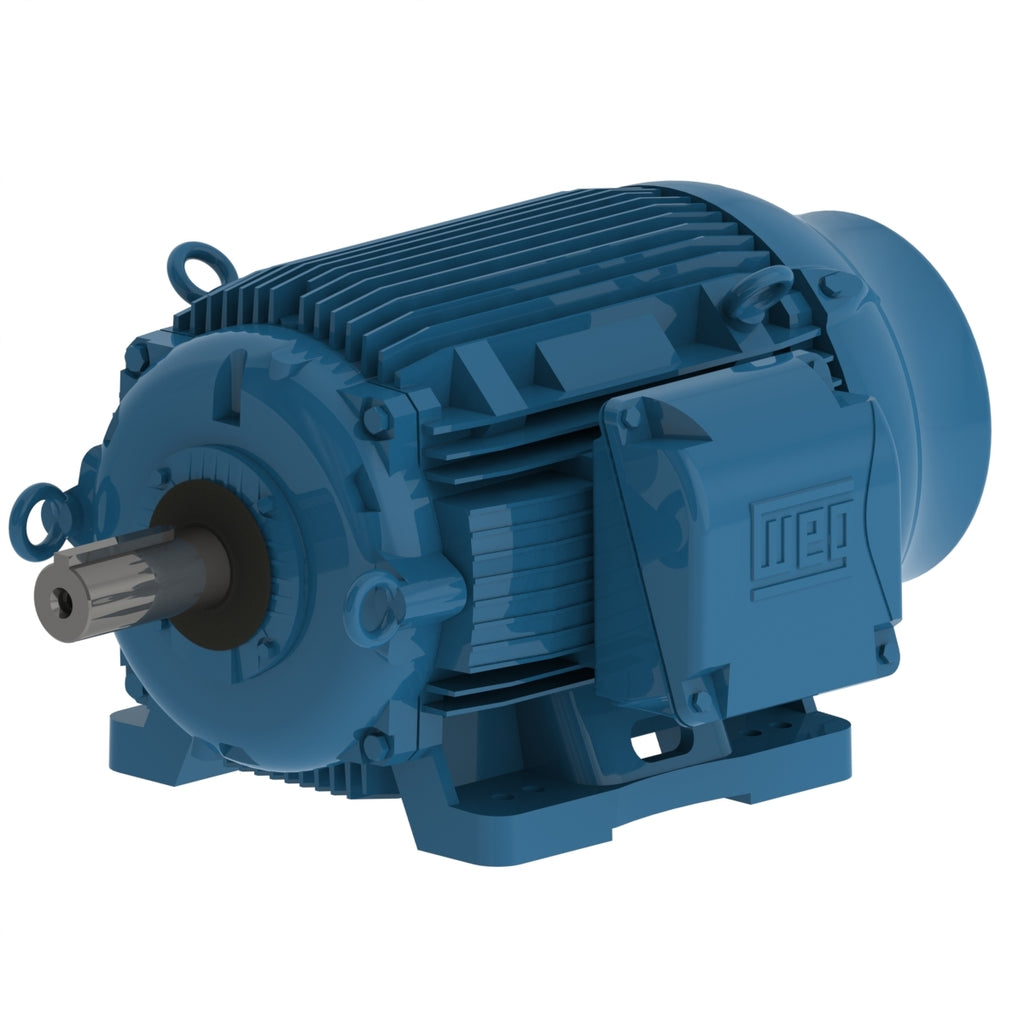

WEG 06012ET3PCT404T-W22 W22 Cooling Tower NEMA Premium Efficiency 60 HP 6P 404/5T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 06012ET3PCT404T-W22 W22 Cooling Tower NEMA Premium Efficiency 60 HP 6P 404/5T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted

WEG 06012ET3PCT404T-W22 W22 Cooling Tower NEMA Premium Efficiency 60 HP 6P 404/5T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 06012ET3PCT404T-W22

GTIN : 7909018509433

MPN :

Dropship

Price:
$11,861.00

Description

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 60 HP
Mounting F-2
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC
Electric Motors
Frame 404/5T
Output 60 HP (45 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1185 rpm
Slip 1.25 %
Rated voltage 200 V
Rated current 160 A
L. R. Amperes 1135 A
LRC 7.1x(Code H)
No load current 57.5 A
Rated torque 266 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 36.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 0.0 lb
Efficiency
50% 94.1
75% 94.5
100% 94.5
Power factor
50% 0.74
75% 0.82
100% 0.86
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
