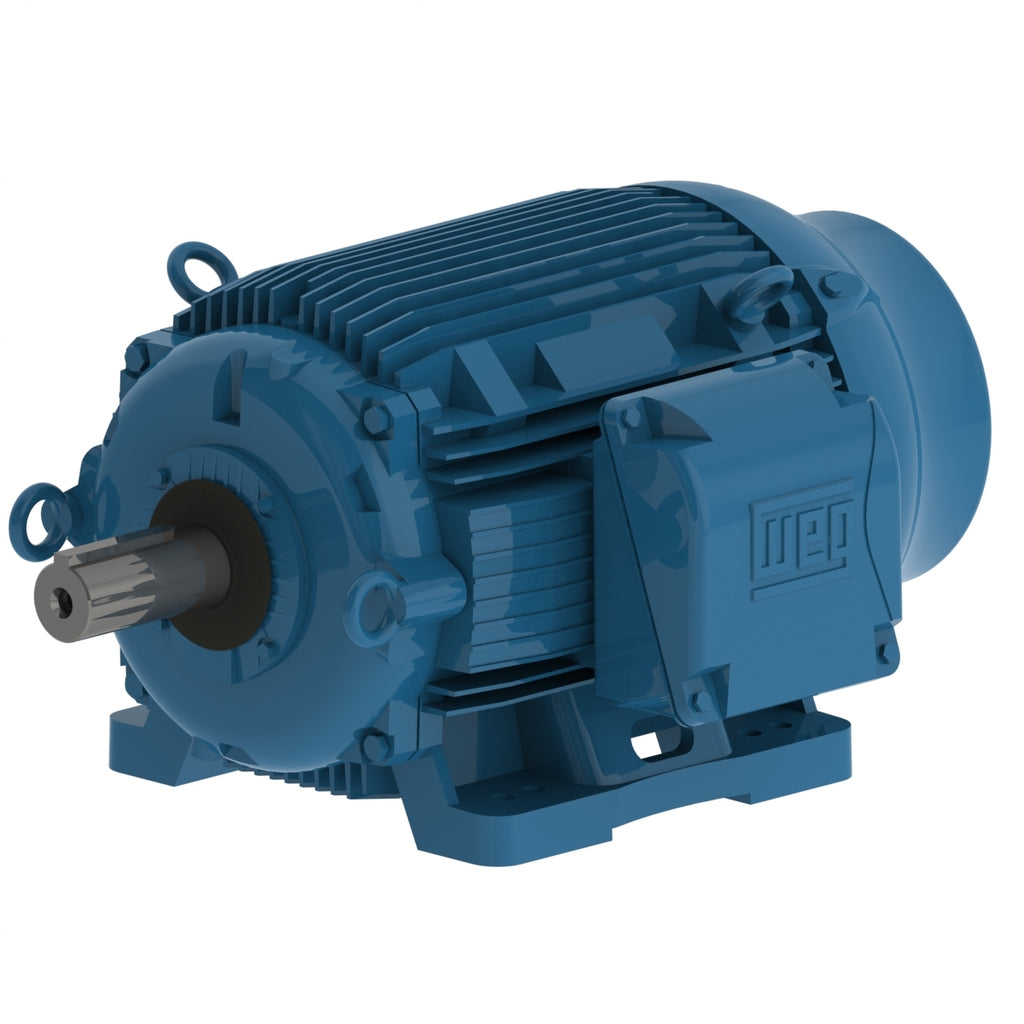

WEG 06012ET3ECT404T-W22 W22 Cooling Tower NEMA Premium Efficiency 60 HP 6P 404/5T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 06012ET3ECT404T-W22 W22 Cooling Tower NEMA Premium Efficiency 60 HP 6P 404/5T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEG 06012ET3ECT404T-W22 W22 Cooling Tower NEMA Premium Efficiency 60 HP 6P 404/5T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 06012ET3ECT404T-W22

GTIN : 7909018364612

MPN :

Dropship

Price:
$11,861.00

Description

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 60 HP
Mounting F-2
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 404/5T
Output 60 HP (45 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1185 rpm
Slip 1.25 %
Rated voltage 230/460 V
Rated current 139/69.5 A
L. R. Amperes 987/493 A
LRC 7.1x(Code H)
No load current 50.0/25.0 A
Rated torque 266 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 36.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 1167 lb
Efficiency
50% 94.1
75% 94.5
100% 94.5
Power factor
50% 0.74
75% 0.82
100% 0.86
Electric Motors
Frame 404/5T
Output 50 HP (37 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 380 V
Rated current 69.3 A
L. R. Amperes 457 A
LRC 6.6x(Code G)
No load current 24.7 A
Rated torque 267 ft.lb
Locked rotor torque 180 %
Breakdown torque 220 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 36.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1167 lb
Efficiency
50% 93.3
75% 93.4
100% 93.3
Power factor
50% 0.73
75% 0.83
100% 0.87
Electric Motors
Frame 404/5T
Output 50 HP (37 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 400 V
Rated current 66.5 A
L. R. Amperes 485 A
LRC 7.3x(Code H)
No load current 26.4 A
Rated torque 267 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 36.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1167 lb
Efficiency
50% 93.3
75% 93.7
100% 93.4
Power factor
50% 0.70
75% 0.82
100% 0.86
Electric Motors
Frame 404/5T
Output 50 HP (37 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 64.8 A
L. R. Amperes 505 A
LRC 7.8x(Code J)
No load current 27.7 A
Rated torque 267 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 36.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1167 lb
Efficiency
50% 93.3
75% 93.7
100% 93.4
Power factor
50% 0.67
75% 0.79
100% 0.85
Electric Motors
Frame 404/5T
Output 60 HP (45 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 85.1 A
L. R. Amperes 477 A
LRC 5.6x(Code F)
No load current 24.7 A
Rated torque 322 ft.lb
Locked rotor torque 150 %
Breakdown torque 180 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 36.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1167 lb
Efficiency
50% 93.6
75% 93.0
100% 92.4
Power factor
50% 0.79
75% 0.85
100% 0.87
Electric Motors
Frame 404/5T
Output 60 HP (45 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 80.3 A
L. R. Amperes 498 A
LRC 6.2x(Code G)
No load current 26.4 A
Rated torque 322 ft.lb
Locked rotor torque 180 %
Breakdown torque 200 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 36.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1167 lb
Efficiency
50% 93.6
75% 93.6
100% 93.0
Power factor
50% 0.77
75% 0.84
100% 0.87
Electric Motors
Frame 404/5T
Output 60 HP (45 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 78.3 A
L. R. Amperes 525 A
LRC 6.7x(Code G)
No load current 27.7 A
Rated torque 320 ft.lb
Locked rotor torque 190 %
Breakdown torque 220 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 36.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1167 lb
Efficiency
50% 93.6
75% 93.6
100% 93.0
Power factor
50% 0.74
75% 0.82
100% 0.86
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
