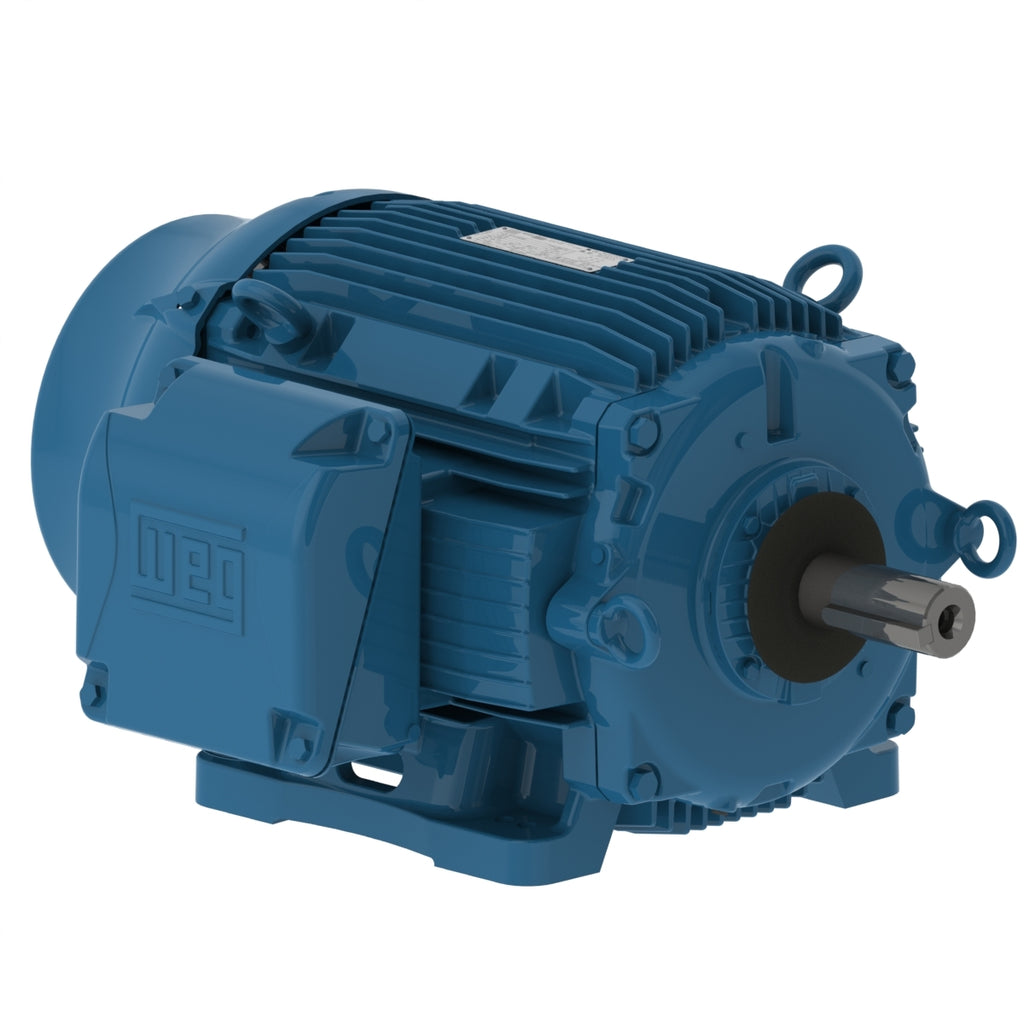

WEG 05089EP3QCT364VF1-W2 W22 Cooling Tower High Efficiency 12.5/50 HP 8/4P 364/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 05089EP3QCT364VF1-W2 W22 Cooling Tower High Efficiency 12.5/50 HP 8/4P 364/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

WEG 05089EP3QCT364VF1-W2 W22 Cooling Tower High Efficiency 12.5/50 HP 8/4P 364/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 05089EP3QCT364VF1-W2

GTIN : 7909018682136

MPN :

Dropship

Price:
$7,526.00

Description

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 8/4
Degree of Protection IP55
Synchronous speed 900/1800 rpm
Output rating 12.5/50 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC411 - TEFC

Specifications

460 V 60 Hz 4P 460 V 60 Hz 8P

Electric Motors
Frame 364/5T
Output 50 HP (37 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 460 V
Rated current 59.8 A
L. R. Amperes 526 A
LRC 8.8x(Code K)
No load current 30.7 A
Rated torque 148 ft.lb
Locked rotor torque 310 %
Breakdown torque 350 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 19.9 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 71.0 dB(A)
Approx. weight³ 844 lb
Efficiency
50% 89.5
75% 91.0
100% 92.4
Power factor
50% 0.67
75% 0.78
100% 0.84
Electric Motors
Frame 364/5T
Output 12.5 HP (9.2 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 885 rpm
Slip 1.67 %
Rated voltage 460 V
Rated current 21.4 A
L. R. Amperes 94.2 A
LRC 4.4x(Code G)
No load current 16.3 A
Rated torque 74.2 ft.lb
Locked rotor torque 190 %
Breakdown torque 229 %
Locked rotor time 82s (cold) 46s (hot)
Moment of inertia (J) 19.9 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 844 lb
Efficiency
50% 84.0
75% 87.5
100% 88.5
Power factor
50% 0.40
75% 0.52
100% 0.61
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
